1

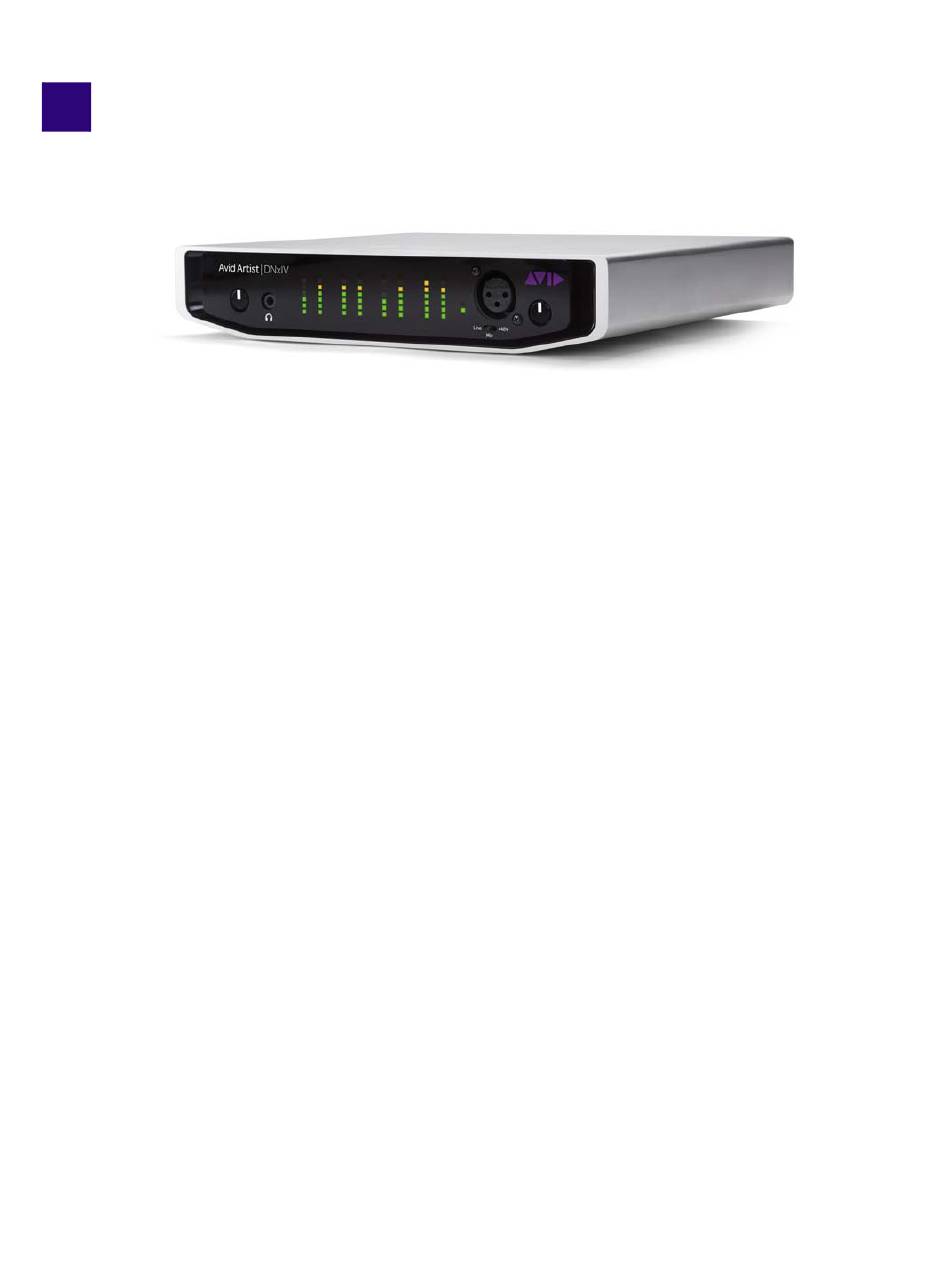

Avid Artist DNxIV

Overview

Avid Artist | DNxIV, developed in cooperation with AJA
professional video and audio connectivity with support for the latest 4K and UltraHD devices and
High Frame Rate workflows. The power of Thunderbolt 3 enables Avid Artist | DNxIV to handle a
wide range of formats from SD to HD, UltraHD and full 4K over both SDI and HDMI and support
4K frame rates up to 60p, plus HDR 10 and HLG support over HDMI for HDR workflows.
Avid Artist | DNxIV is the ideal companion for lightning-fast video capture, playback and editorial.
Avid Artist | DNxIV connects with a single Thunderbolt cable and provides a second Thunderbolt
connector for flexibility, making it perfect for on set, or in the edit suite.

Features

Two Thunderbolt 3 ports (supports pass-through daisy-chaining)
Four bidirectional SDI BNCs configurable for up to four inputs, or four outputs, or two inputs
and 2 outputs.
Single Link I/O for 4K/UltraHD, HD and SD across 12G-SDI, 6G-SDI, 3G-SDI, and1.5G-SDI
Dual Link I/O for 1.5G-SDI and 3G-SDI (2 x BNC)
Quad Link I/O for 1.5G-SDI, 3G-SDI (4 x BNC)
Supports Quadrant or Two Sample Interleave transport
HDMI 2.0 Input and Output
HDR (HDR10 or HLG via HDMI, 12 Bit RGB, BT2020)
Dedicated realtime 4K/UltraHD to HD down-conversion output (SDI Monitor out BNC)
Eight-channel Embedded HDMI audio
Choice of Eight-Channel In, Eight-Channel Out, or Four-Channel In/Out analog audio (DB25
cable, Line Level)
Front panel Mic/Line/Phantom XLR audio input connector, with gain control
Front panel LED VU meters and Headphone output w/level control
®
Video Systems, offers a full set of
