3
Avid Artist DNxIV Operation

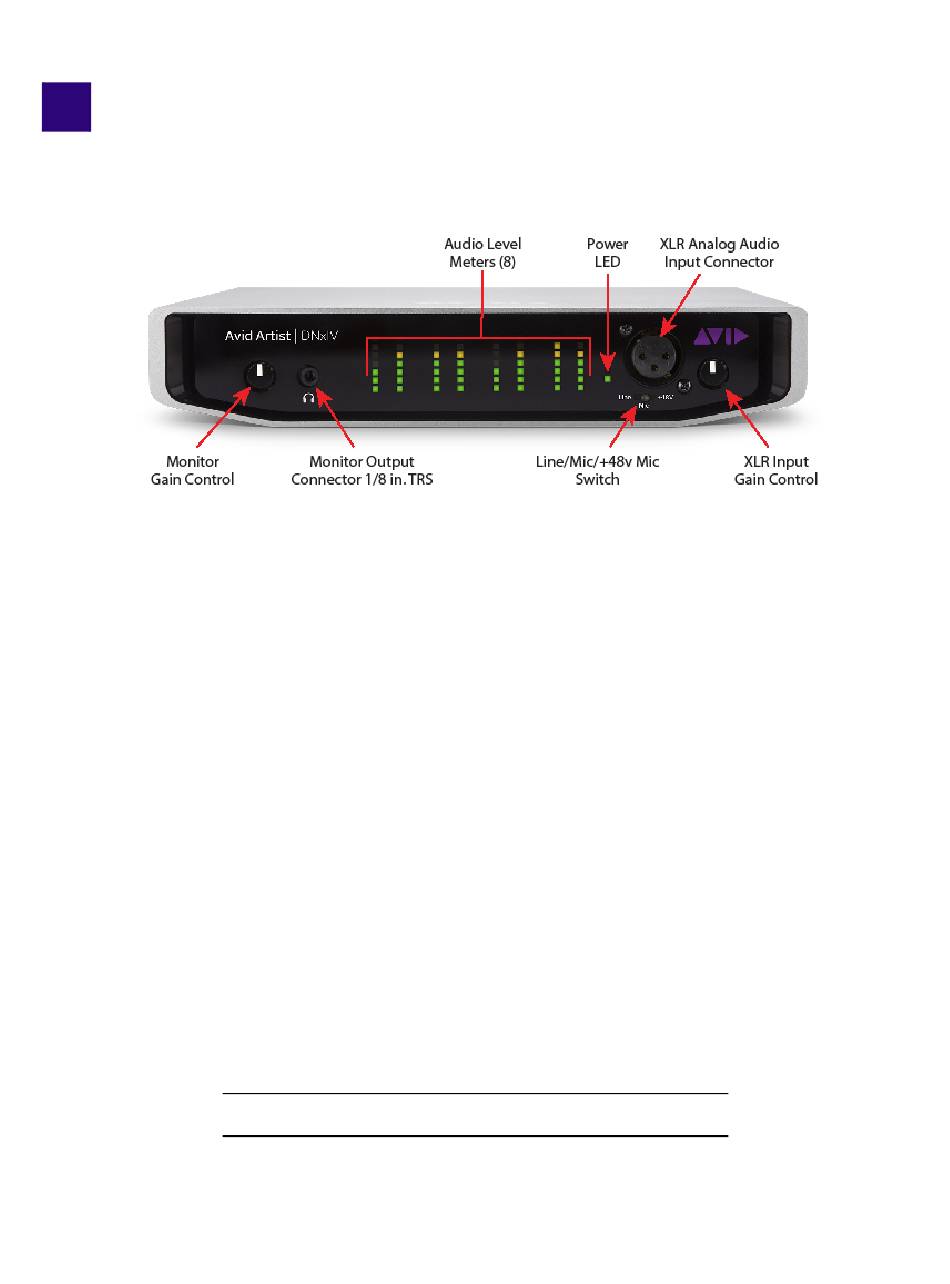

Front Panel Operation
The Avid Artist | DNxIV front panel has the following controls and indicators:
Monitor Output and Gain Control
A 1/8 inch TRS connector is available for monitoring two channels of audio, selectable in channel
pairs using the Control Panel application. Typically used with a pair of headphones.
The Monitor Gain knob on the left adjusts the monitor output level. Pushing in the knob extends it
(for adjustment) or recesses it (to prevent accidental changes).
Audio Level Meters
The Audio Level Meters in the center of the front panel indicate:
•
During Capture - The first 8 channels of the audio source selected (SDI, HDMI, Analog, Mic).
•
During Playback - The sum of whatever sources are being played out via the AJA hardware; i.e.
NLE timeline and mix of host system audio output (if applicable).
The meter's LEDs are colored to indicate the amount below 0dBfs when averaged over a one
millisecond time interval:
dBfs
-2 db
-12 db
LED Color and Location
Red LED 1 (top)
Yellow LED 2
