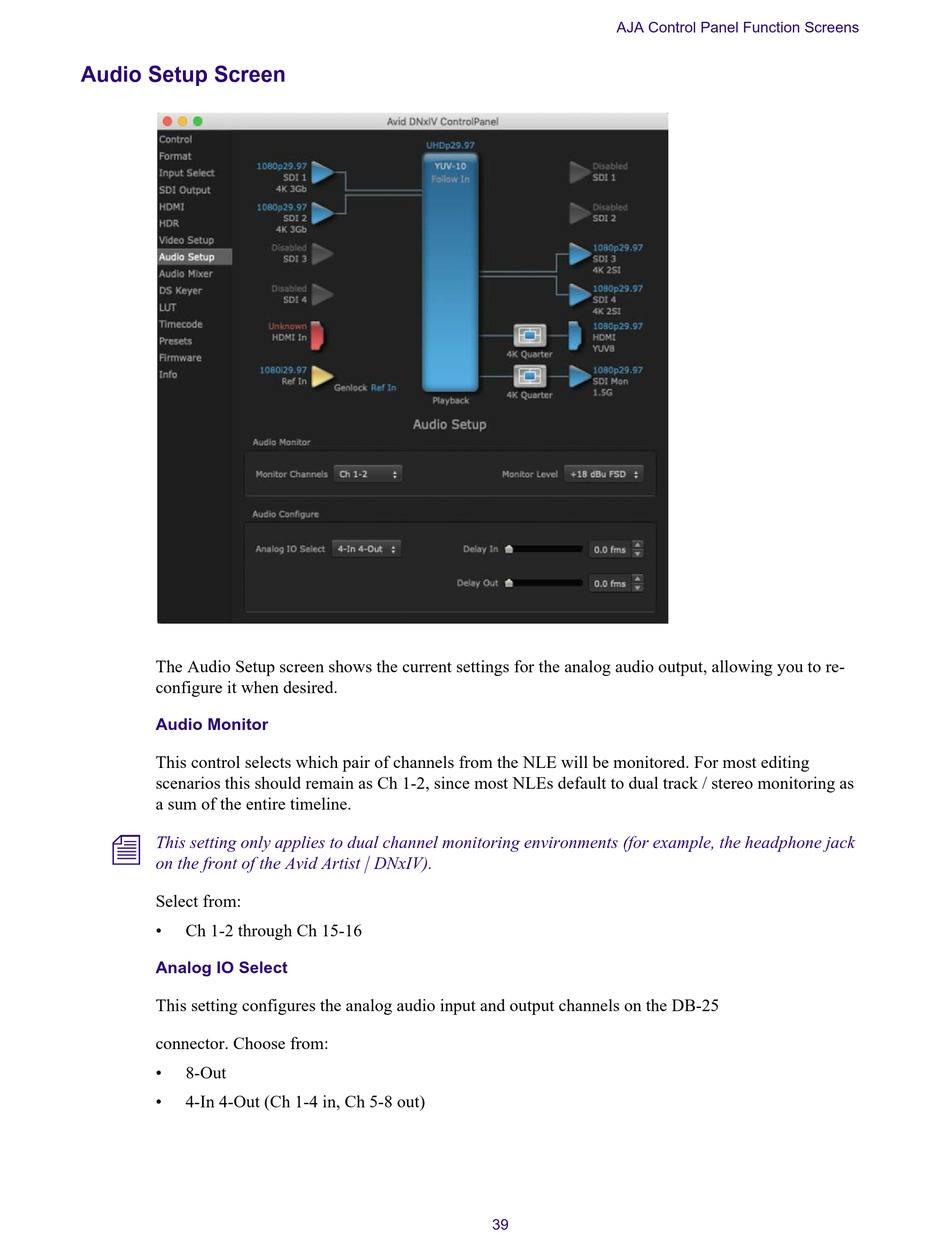

Audio Setup Screen

The Audio Setup screen shows the current settings for the analog audio output, allowing you to re-
configure it when desired.
Audio Monitor
This control selects which pair of channels from the NLE will be monitored. For most editing
scenarios this should remain as Ch 1-2, since most NLEs default to dual track / stereo monitoring as
a sum of the entire timeline.
n
This setting only applies to dual channel monitoring environments (for example, the headphone jack
on the front of the Avid Artist | DNxIV).
Select from:
Ch 1-2 through Ch 15-16
Analog IO Select
This setting configures the analog audio input and output channels on the DB-25
connector. Choose from:
8-Out
4-In 4-Out (Ch 1-4 in, Ch 5-8 out)
AJA Control Panel Function Screens
39
