AJA Control Panel Function Screens

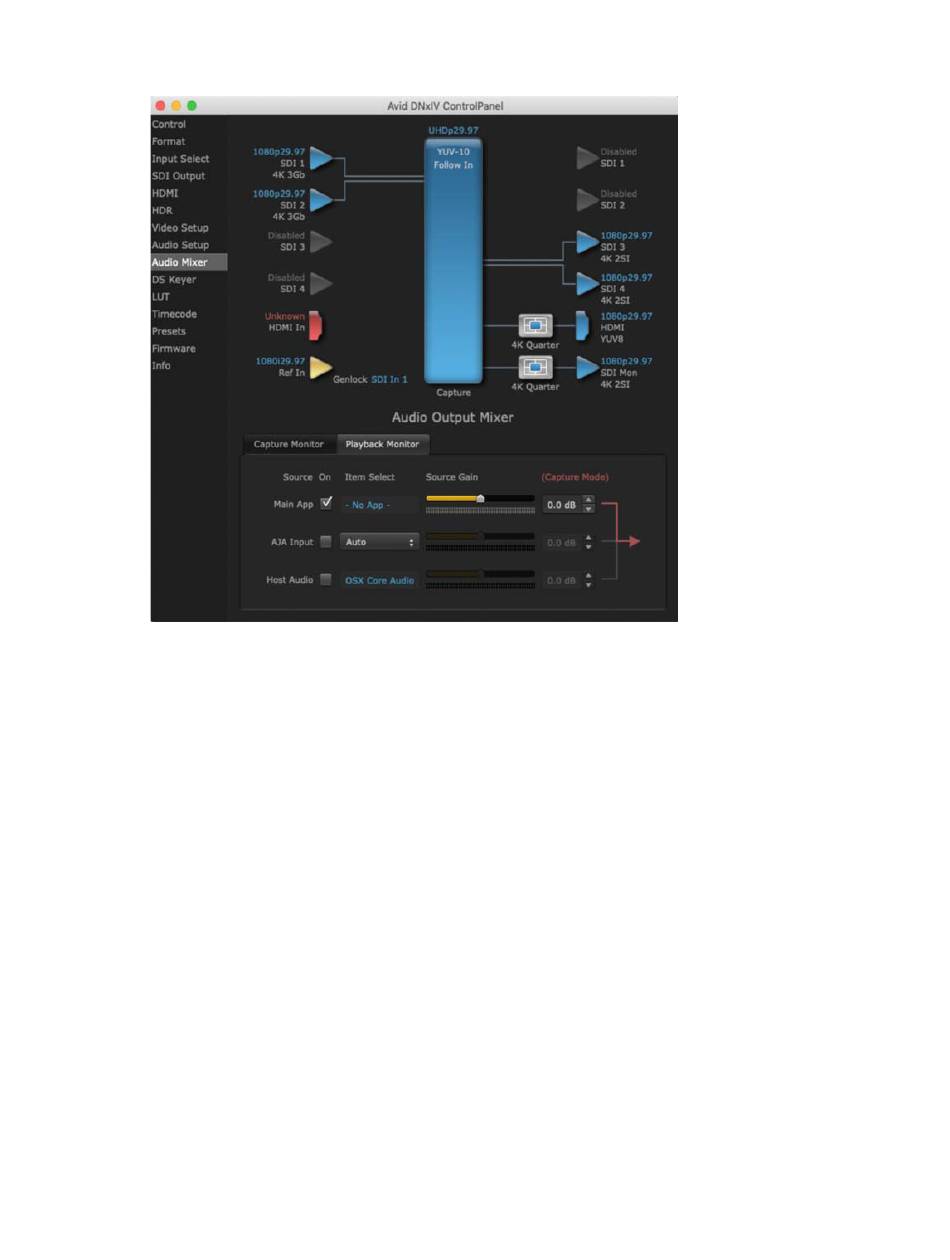

Audio Mixer Screen Example
Each source has a confidence meter, which enables you to tell immediately if you have a source
arriving correctly at the AJA hardware (without having to launch any other software). The level
sliders allow a simple plus or minus adjustment to the Source level being monitored. This is to allow
for fine-tuning of your listening environment (on occasions the host system audio can be
unexpectedly loud, or an incoming feed may be very loud or very quiet).
Two different Audio Mixer screens are available, selected by clicking on the Playback Monitor or
Capture Monitor tabs. During regular editing, the Playback tab is used to control your monitoring
experience. During capture operations, the Capture tab is used for your monitoring experience.
Controls in each tab are only in effect when Avid Artist | DNxIV is in the correct operating mode, as
determined by the controlling application or the Control Panel application's Default Output setting.
When the mode doesn't match, the mode indicator on the right goes red (see "Audio Mixer Screen
Example" on page 41). However, settings can be adjusted while in that disabled mode, and will be
applied when you return to that operating mode.
