Some controlling applications can switch the card's mode from Playback to Capture, and vice-versa.
When Control Panel is not being controlled by an external application, you can change the operating
mode in the Control Panel Control Screen using the Default Output settings.
• Selecting Passthrough (Cap) sets the card to Capture Mode
• Selecting either Test Pattern (PB) or Hold Last App sets the card to Playback Mode
See Default Output
Block Diagram Area

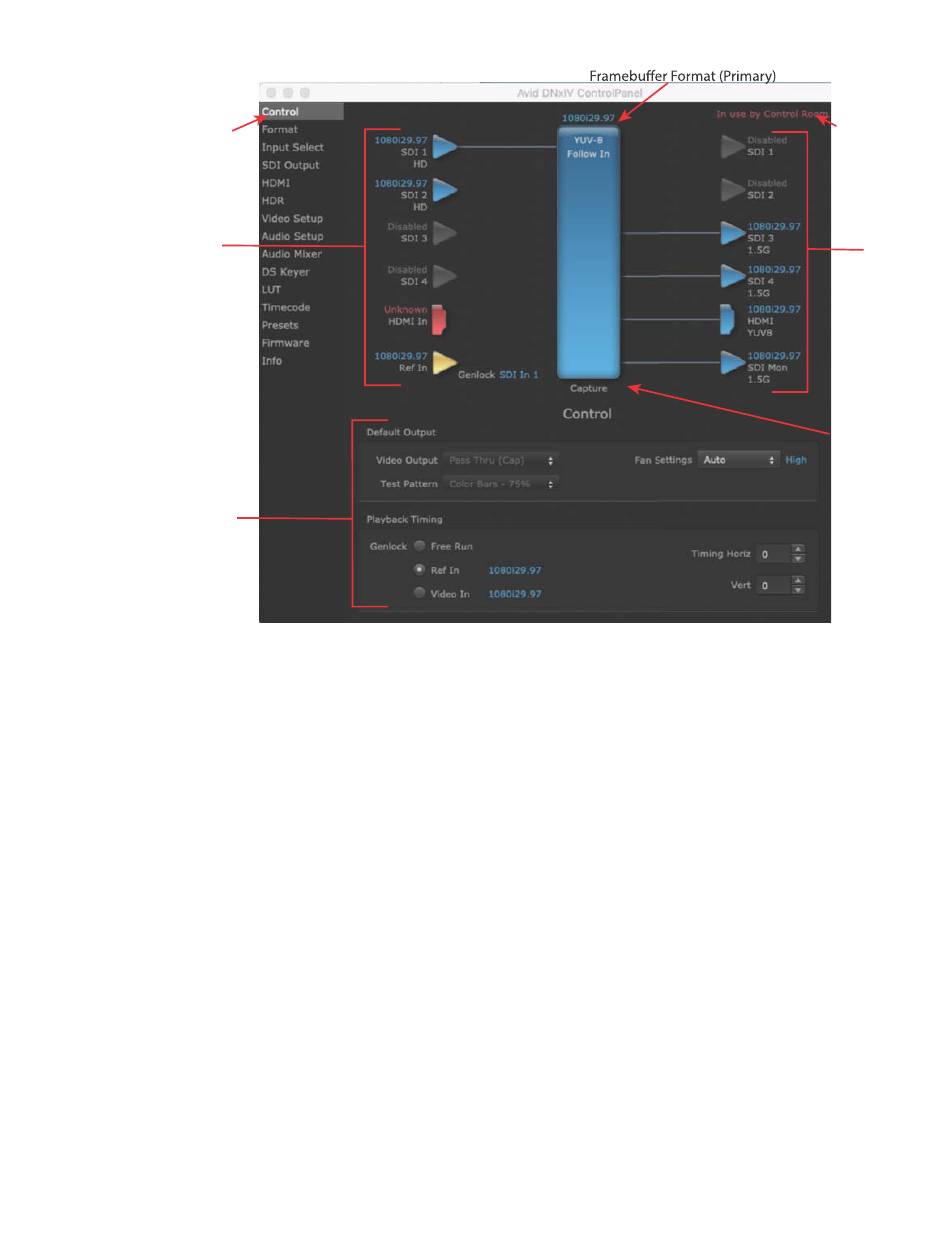

The top block diagram area of the Control Panel screen is a visual representation of the processing, if
any, that's currently occurring, including inputs/outputs, reference source, and system status. Lines
between inputs, the framebuffer, and outputs, show a video path. Where there are no lines, there is no
connection; this can be because an input or output isn't selected in the Input Select menu. The lines
will also show whether the outputs are video or video + key.
You can click any of the function screen selection links in the left column to view its current settings
or click on an icon to call up its related settings screen. You can also right-click or Control-click to
see context-sensitive information and choices.
for more information.
