Timecode Screen

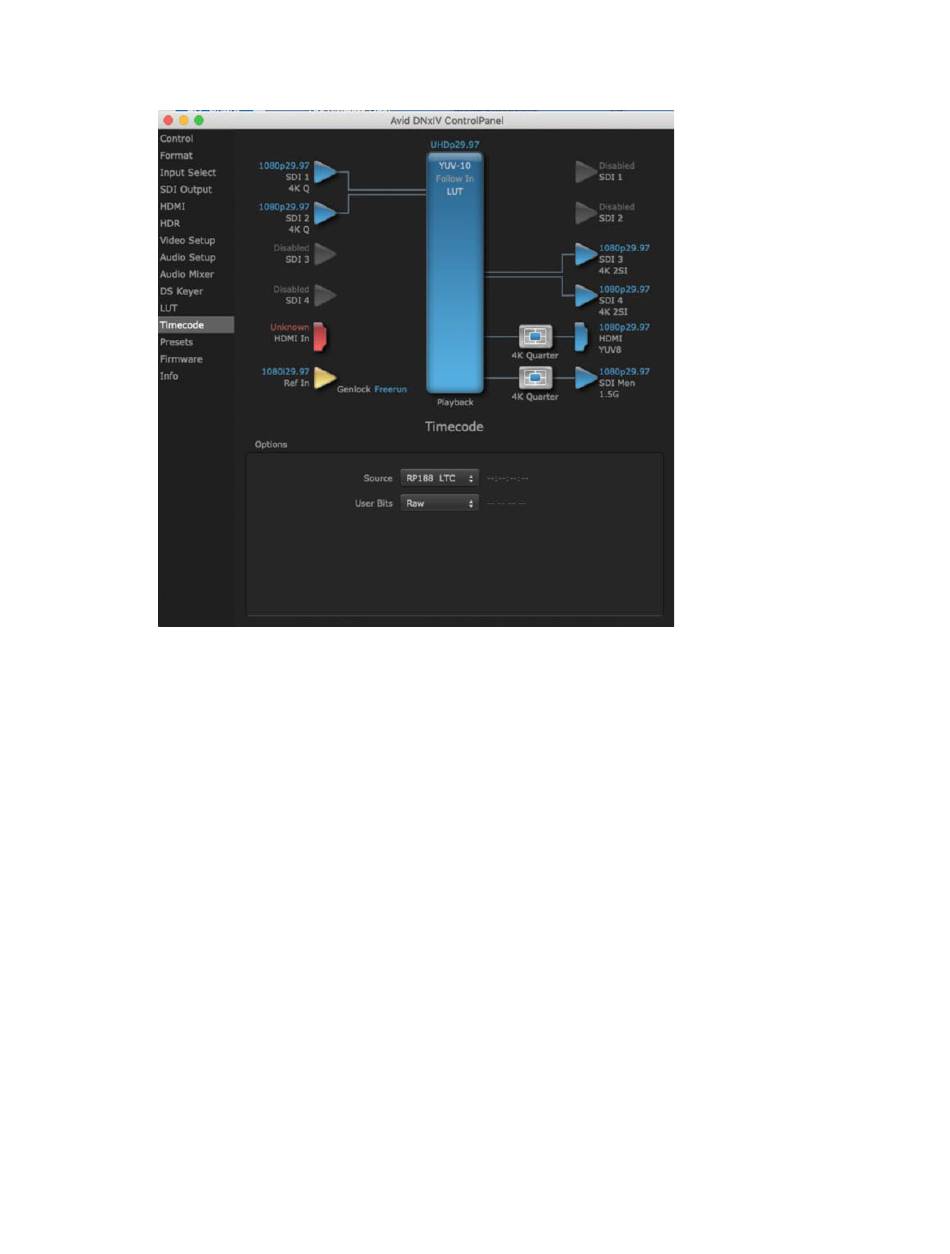

The Timecode screen is used to select the timecode stream read for applications that use it (for
example, in AJA Control Room when the Timecode Source preference is set to "Control Panel
Setting" that application will read the selected stream). This screen is also used for monitoring the
RP-188 timecode embedded in the digital data stream, for selecting a timecode offset (if required),
and setting timecode outputs.
Options
Source
In RP-188 timecode (SMPTE 12M-gg2) there can be multiple timecode types in the data stream. Use
this pull-down to select the one you wish to monitor:
• RP188 LTC (Linear timecode)
• RP188 VITC 1 (Vertical Interval timecode)
• RP188 VITC 2
• LTC Port input
The selection will be displayed in the timecode value displayed to the right of the pull-down.
