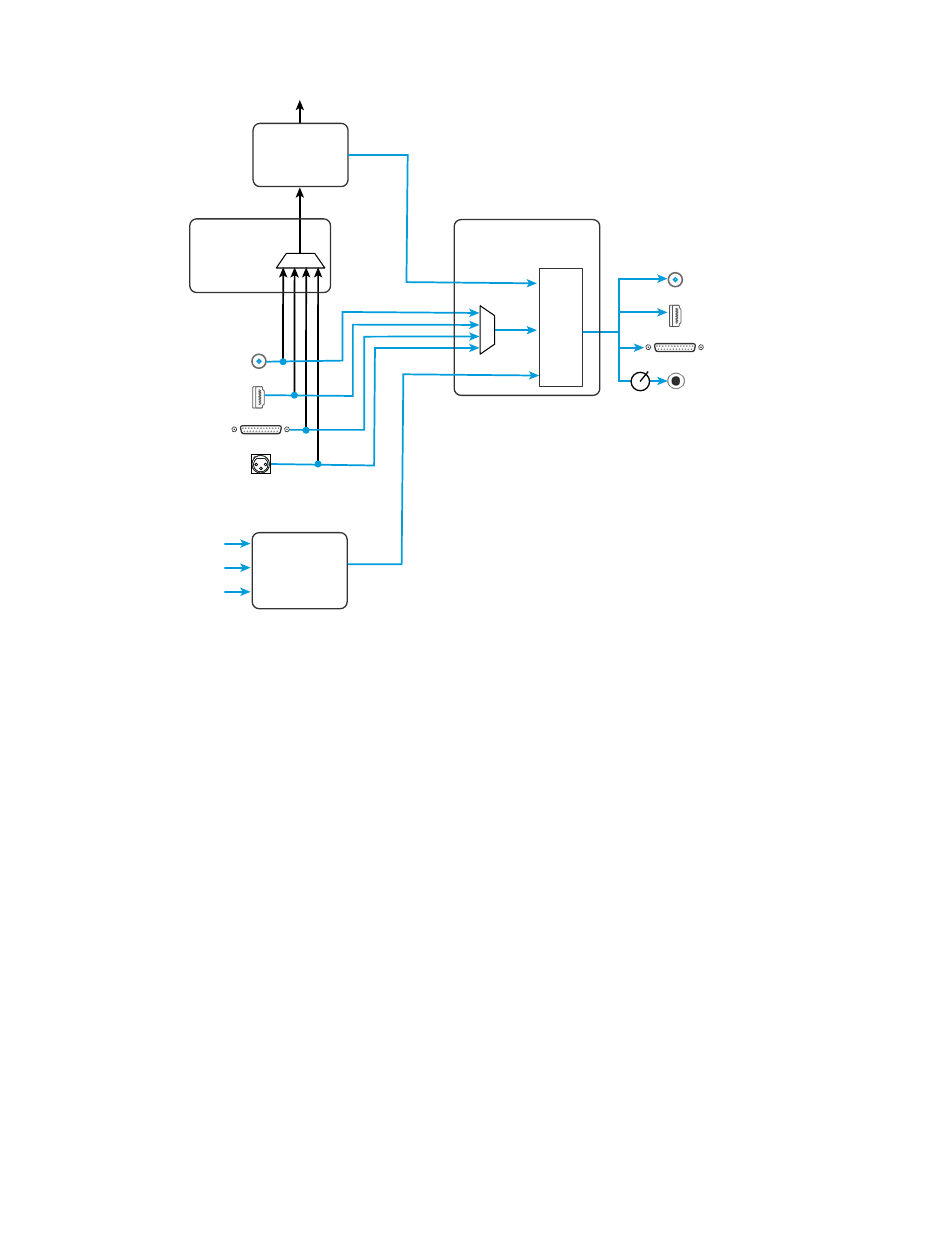

Audio Capture
Punch In/Voice Over
Record to File
Non Linear
Video Editor
NLE
Application
Control Panel
Input Select
Screen
AJA Hardware
Audio Input
SDI Embedded
Audio Input
HDMI Embedded
Audio Input
Analog Audio
Input
Front Panel
Mic Input
Host Computer Audio Input
Audio File
Playback
Mac or PC
YouTube
Computer
Audio
Other
Sources
To control which AJA hardware audio is used during recording, you use the Control Panel
application's Input Select Screen, Audio Input Select drop down to select fro:
• SDI embedded
• HDMI embedded
• Analog (via DB25 cable)
• Mic audio (via front Mic input)
Any level adjustments to Capture or Audio Punch In / Voice Over to Timeline recording operations
will either need to be made upstream of the AJA input, or else via adjustments within the main NLE
application (e.g. via a pass through mix tool).
NOTE: NLE audio
output is disabled
in Capture mode.
Control Panel
Audio Mixer
Screen
NLE
Audio
AJA Hardware Audio
Host
Computer
Audio
24
Avid Artist | DNxIV Audio Monitoring
AJA Hardware
Audio Monitoring
SDI Embedded
Audio Output
HDMI Embedded
Mixer Audio Output
Controls
Analog Audio
Front Panel
Monitor Output
Gain
Knob
Output
