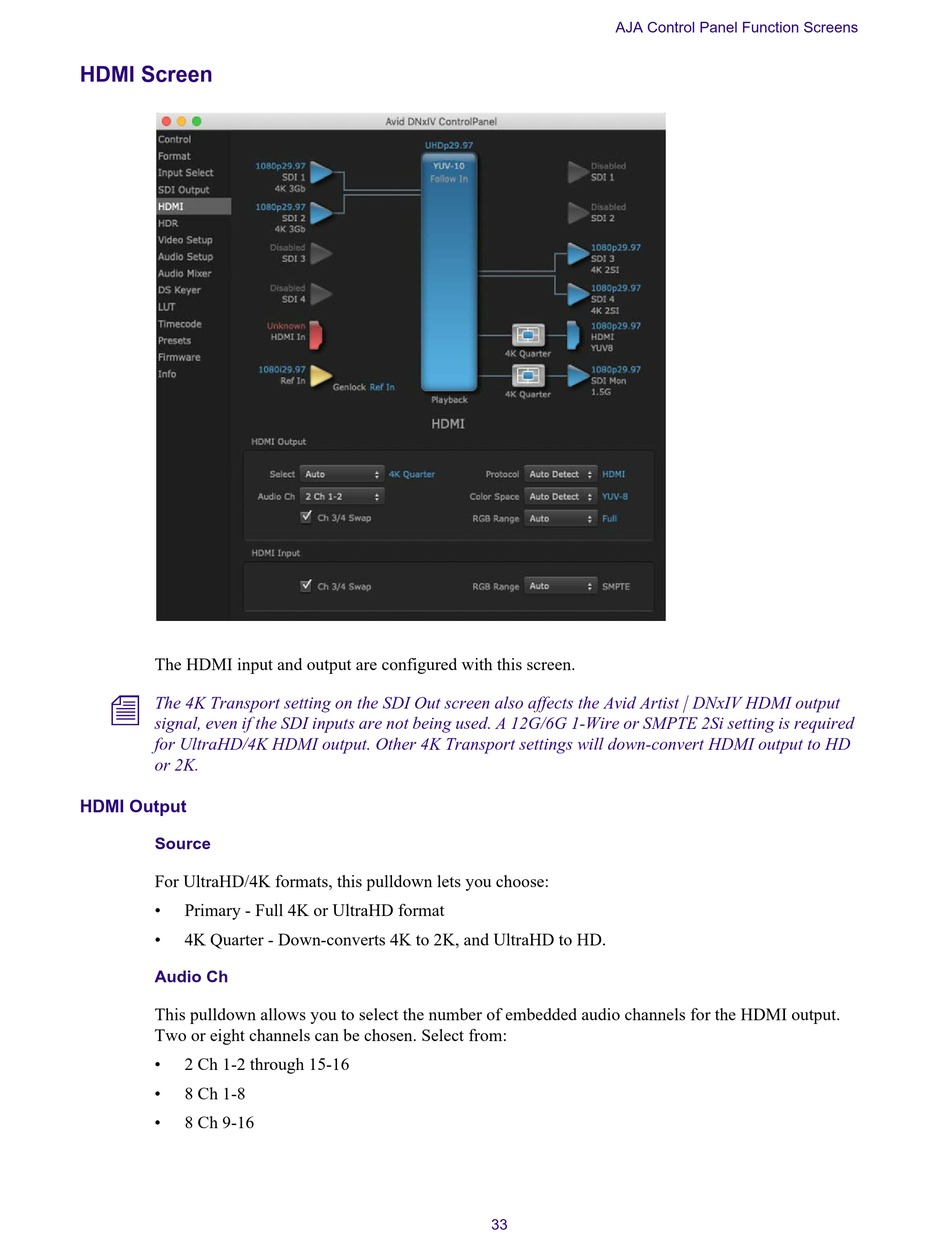

HDMI Screen

The HDMI input and output are configured with this screen.
n
The 4K Transport setting on the SDI Out screen also affects the Avid Artist | DNxIV HDMI output
signal, even if the SDI inputs are not being used. A 12G/6G 1-Wire or SMPTE 2Si setting is required
for UltraHD/4K HDMI output. Other 4K Transport settings will down-convert HDMI output to HD
or 2K.
HDMI Output
Source
For UltraHD/4K formats, this pulldown lets you choose:
• Primary - Full 4K or UltraHD format
• 4K Quarter - Down-converts 4K to 2K, and UltraHD to HD.
Audio Ch
This pulldown allows you to select the number of embedded audio channels for the HDMI output.
Two or eight channels can be chosen. Select from:
• 2 Ch 1-2 through 15-16
• 8 Ch 1-8
• 8 Ch 9-16
