Input Select Screen

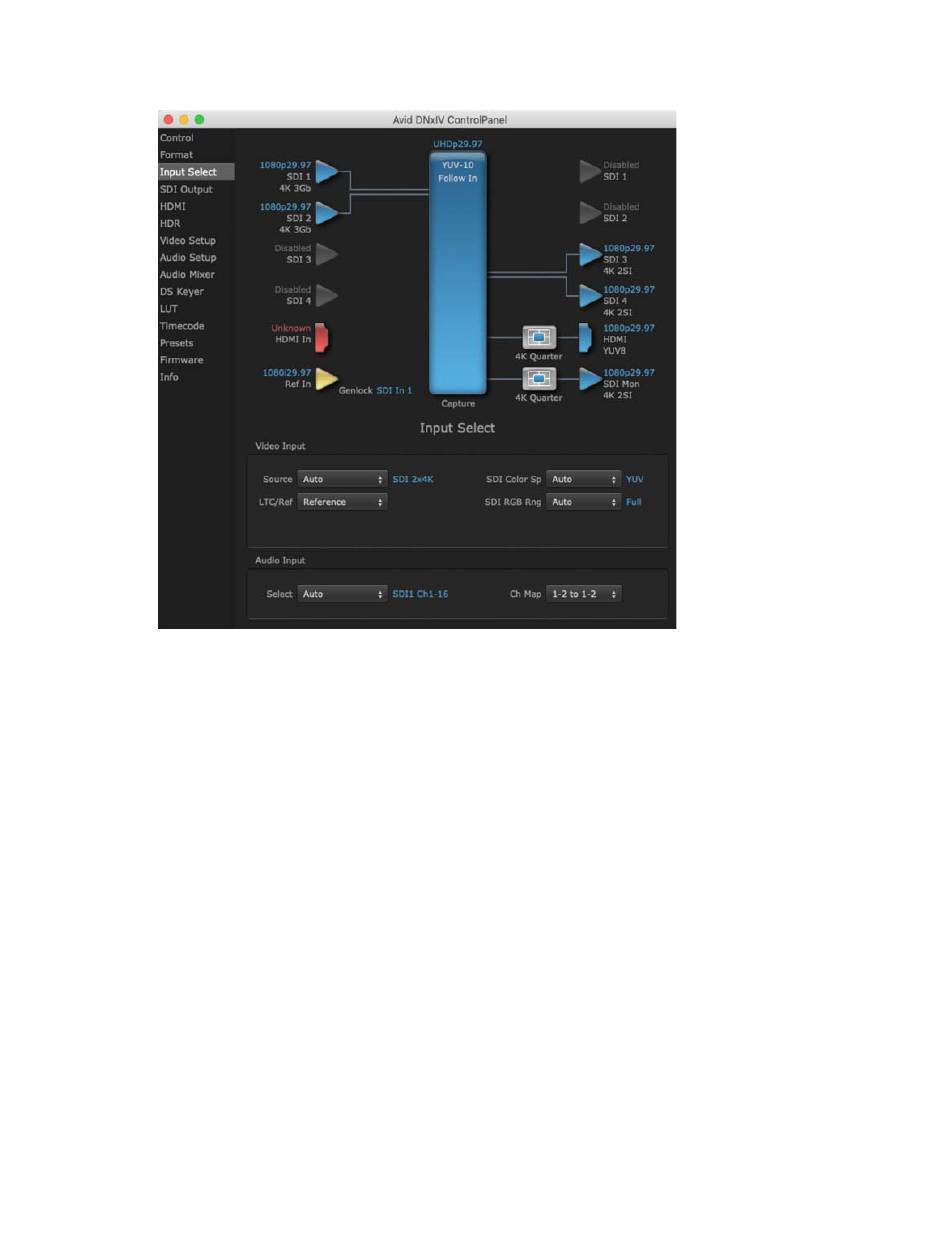

On the Input Select screen you can view or set the currently selected video and audio input sources
and map audio sources to the channels supported by your editing application. Two information panes
in the screen are provided: Video Input and Audio Input.
Video Input
Source
The Source pulldown menu allows you to select the currently selected video input source. Select
from:
• Auto - Automatically selects the source depending on input format.
• SDI 1
• SDI 2
• SDI 2xHD
• SDI 2x4K
• SDI 4x4K
• HDMI
SDI Color Sp
Sets the color space. Select from Auto, YUV, or RGB.
