Installation Details for the 1552SA and 1552SD Access Point

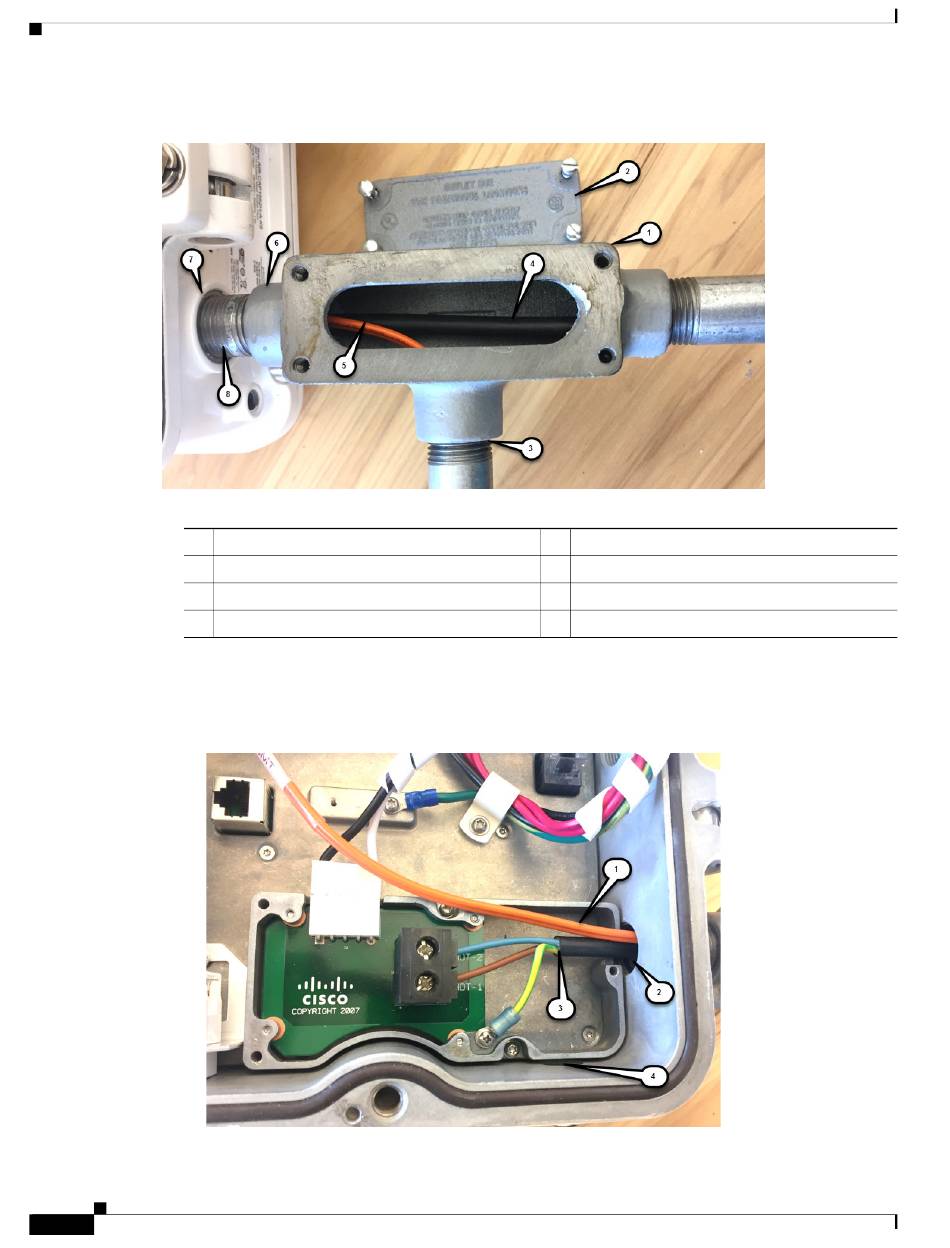

Figure 3-17
1
ERT50 Junction Box
3
1/2NPT
5
Fiber Cable
7
1/2NPT
Complete the connections inside the 1552 as shown in
Step 7
Figure 3-18
Cisco Aironet 1552 Series for Hazardous Locations Installation Guide
3-68
Chapter 3
Routing Detail
Inside Connectivity
Installing the 1552 Series Access Points in Hazardous Locations
2
ERT50 Junction Box Cover (removed)
4
Power Cable
6
1/2NPT
8
1/2NPT Male to Male
Figure
3-18.
