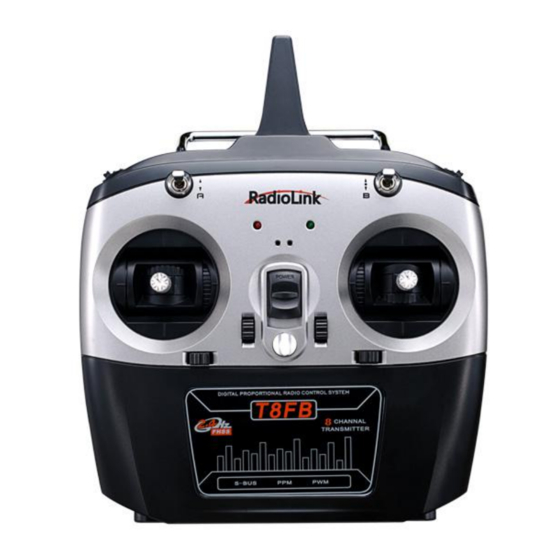

RadioLink T8FB Instruction Manual
Fhss
Hide thumbs
Also See for T8FB:
- User manual (44 pages) ,
- Instruction manual (27 pages) ,
- User manual (18 pages)
Related Manuals for RadioLink T8FB
Summary of Contents for RadioLink T8FB

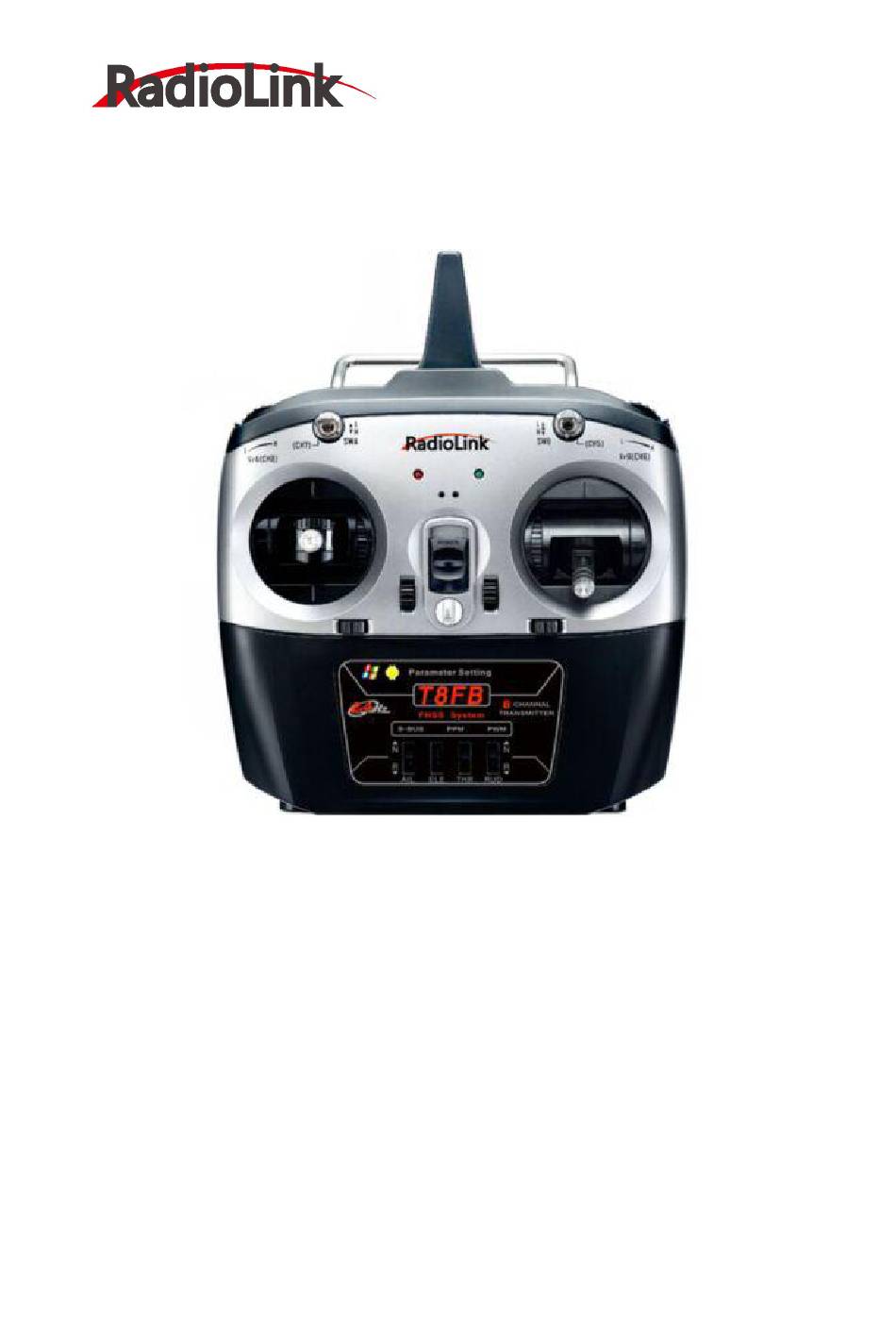

- Page 1 RADIOLINK T8FB (FHSS) INSTRUCTION MANUAL RADIOLINK ELETRONIC LIMITED Technical updates and additional programming examples available at: www. radiolink.com...
- Page 2 INTRODUCTION Thank you for purchasing Radiolink 2.4 GHz remote control system -- T8FB . It can control all the fixed-wings, gliders, multicopters ,cars and boats. T8FB, with chip TI CC2500 and the same FHSS spread spectrum of AT9S and 67 channels pseudo random frequency sequence hopping.
- Page 3 Note:About flying While you are getting ready to fly, if you place your transmitter on the ground ,be sure that the wind won’t tip it over. If it is knocked over, the throttle stick may be accidentally moved, causing the engine to speed up. Also, damage to your transmitter may occur.
-
Page 4: Table Of Contents
1.2.3 Transmitter calibration ..............8 1.3 Guidelines to mount the servos, receiver and battery......9 PART 2. Firmware Upgrade ..............11 2.1 Firmware Introduction................11 2.2 Upgrade Introduction..............11 PART 3. T8FB Android Smartphone Parameter Setting APP Introduction..........15 3.1 Configuration................15 3.2 APP Installing.................17 3.3 The Steps Of Connection............18 3.4 The Functions Introduction ..............18... -
Page 5: Transmitter Panel Shows
1.1 Transmitter Panel Show: （MODE 1） 1.2 T8FB Introduction... -
Page 6: Transmitter
2S to 4S LiPo battery. 4) Defaulted low battery alarm voltage can automatically match 2S and 3S LiPo battery or 4pcs AA batteries, can setting in the T8FB configure software. 3S LiPo battery: default low voltage alarm to 11.0V automatically after detection, you can setup low battery voltage alarm from 10.0V to 12.5V. - Page 7 (1) PWM signal output working mode： Red LED indicates PWM signal output, 8 channels Totally. (2) S-BUS&PPM signal output working mode: Blue/purple LED indicates SBUS&PPM signal output, 8 channels totally. SBUS and PWM signal possible working at the same time with S-BUS&PPM signal output working mode.
- Page 8 MINI Receiver R8FM Radiolink R8FM, 2.4G 8 channels receiver, S-BUS and PPM signal possible working at the same time, use for Radiolink transmitter T8FB, supper mini size, is designed for racing drone. S-BUS&PPM signal change: Quick press the ID SET switch two times within 1 second, the signal is changed from PPM to S-BUS.
-
Page 9: Transmitter Calibration
Attention: The T8FB without USB upgrade port can bind to R8EF and R8FM after upgrade the latest firmware(T8FB_FHSS_V201_a77b_20170609_33bit） You can download the upgrade firmware from our website: http://radiolink.com.cn/doce/t8fb-upgrade-info.html... -
Page 10: Guidelines To Mount The Servos, Receiver And Battery
If you accidentally get moisture or fuel inside the receiver,you may experience intermittent operation or a crash. If in doubt, please contact Radiolink after-sales or distributors for service. • Always mount the servos with the supplied rubber grommets. Don’t over tighten the screws. - Page 11 arms. The number indicate how many degrees each arm is ‘off’ from 90 degrees to correct for minute manufacturing deviations from servo to servo. To center the servos, connect them to receiver and turn on the transmitter and receiver. Center the trims on the transmitter, then find the arm that will be perpendicular to the push rod when placed on the servo.
-
Page 12: Part 2 Firmware Upgrade
Part 2 Firmware Upgrade 2.1 Firmware Introduction The latest firmware is T8FB_FHSS_V201_a77b_20170609_33bit(2017.9.26) We will upgrade firmware according to T8FB users, new firmware will not upgrade in this manual, you can download it from our website: http://radiolink.com.cn/doce/t8fb-upgrade-info.html 2.2 Upgrade Steps 1. Download the divers that T8FB upgrade need from our website: http://radiolink.com.cn/doce/t8fb-upgrade-info.html... - Page 13 4. “Disconnect” will change to “Connected” and the color of word will from red to green if connect successful.
- Page 14 5. Choose “APROM” and then choose the firmware you need.
- Page 15 6. Click “Start”, the progress bar will turn to green, upgrade successful if remind “PASS”.
- Page 16 PART 3. T8FB Parameters Setup Via Android Smart-phone APP...
-
Page 17: Configuration
APP. 3.1 Configuration 1) One USB cable for Android smart-phone The smaller port connect to T8FB USB port and the other bigger port connect to OTG data cable. 2) One OTG cable for Android smart-phone The smaller port connect to smart-phone USB port... - Page 18 The connection please follow this picture :...
-
Page 19: App Installing
3) Android smart-phone system requires to upgrade to version 4.0 or above. 4) The firmware of T8FB have to upgrade to version V2.0.1 or above first. (T8FB firmware version: T8FB_FHSS_V201_a77b_20170609_33bit.hex) (Firmware upgrade steps please follow this website: http://radiolink.com.cn/doce/t8fbchangemodetypes.html) Attention:This APP doesn’t support iPhone now. -
Page 20: The Steps Of Connection
2) Click “Done” when APP have installed, you will see the T8FB parameter setting APP on smart-phone interface, if you click “open “, the APP will open directly. 3) You can find out the installation steps as below 3.3 The Steps Of Connection 1) Turn on the transmitter T8FB at first.
