3.2.1. Pipe Tee Mounting

Normally available pipe tees vary widely in construction dimensions. CPVC pipe tees are most
generally available with schedule 80 walls. Stainless steel tees have thinner walls that change
the final position of the sensor. Common mounting arrangements are shown.

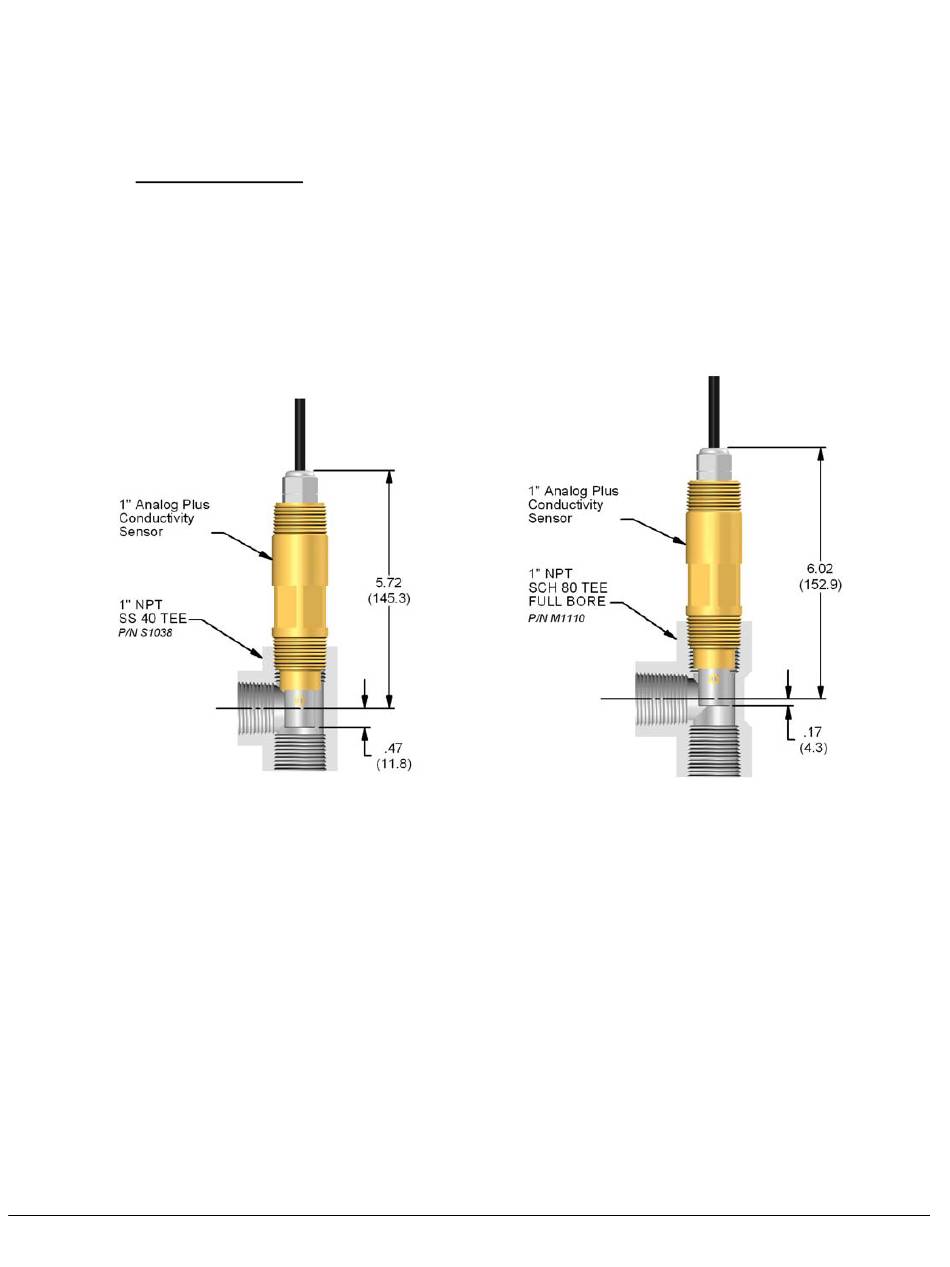

Dimensions: IN (mm) Dimensions: IN (mm)
Figure 3.4: Schedule 40 PVC Tee
Figure 3.5: Schedule 80 PVC Tee
™ ™
