Summary of Contents for Thermo Scientific Lab-Line 100
- Page 1 Thermo Scientific Lab-Line Compact Low Cost Incubators OPERATION AND REPAIR MANUAL AND PARTS LIST Model Numbers Lab-Line 100JPN 150JPN 100IDE 100-5JPN 120JPN 120-5JPN Additional comments: 9-057-139-00 Rev J 4/02...
- Page 2 4/02 OPERATION MANUAL MANUAL NO. 057-139-00 REV. J LAB-LINE COMPACT, LOW COST INCUBATORS MODEL NO. 100, 100IDE, 100JPN, 100-5JPN, 101, 105, 106, 120, 120JPN, 120-5JPN, 121, 125, 126, 150, 150JPN, 1999 North 15th Ave. , Melrose Park, IL 60160-1491 USA PHONE: (563) 556-2241 or (800) 522-5463;...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION TITLE Introduction Description Specifications Installation Operation Maintenance Replacement Parts Warranty... -
Page 4: Introduction
SECTION 1 INTRODUCTION THANK YOU for selecting Lab-Line Instruments for your equipment needs. For maximum value and ease of start-up, PLEASE PROCEED AS FOLLOWS: • Inspect the carton and contents for shipping damage. Notify the carrier immediately if damage is found. •... -
Page 5: Description
DESCRIPTION The Lab-Line compact, low cost incubators are useful for biochemical, bacteriological and hematological studies. They provide a controlled environment for growing microorganisms, as well as, for the study of chick and invertebrate embryos. All models have specially designed heaters to eliminate the hazards of open-wire internal heaters. - Page 6 POWER REQUIREMENTS: 100, 100IDE, 105, 120, 125: 120VAC, 50/60 Hz, 100 Watts, 0.8 Amps 150: 120VAC, 50/60 Hz, 150 Watts, 1.3 Amps 150JPN: 100VAC, 50/60 Hz, 104 Watts, 1.0 Amps 101, 106, 121, 126: 240VAC, 50/60 Hz, 100 Watts, 0.4 Amps 152: 240VAC, 50/60 Hz, 150 Watts, 0.6 Amps 100JPN, 120JPN:...
-
Page 7: Installation
INSTALLATION √SHIPPING CARTON: This should be inspected upon delivery. When received, carefully examine for any shipping damage before unpacking. If damage is discovered, the delivering carrier should both specify and sign for the damage on your copy of the delivery receipt. Open the carton carefully making certain that all parts are accounted for before packaging materials are discarded—after unpacking, if damage is found, promptly report it to the carrier and request a damage inspection promptly. -
Page 8: Operation
placed on top. 150 series has two removable, nonadjustable, perforated aluminum shelves. ELECTRICAL REQUIREMENTS: 120 VAC models require a 120 VAC, 50/60 Hz power source. They are supplied with a 3-wire line cord. It should be plugged into an outlet designed for 3-prong plugs. -
Page 9: Maintenance
DANGER: DO NOT USE IN THE PRESENCE OF FLAMMABLE OR COMBUSTIBLE MATERIALS OR EXPLOSIVE GASES. DO NOT USE IN THE PRESENCE OF PRESSURIZED OR SEALED CONTAINERS—FIRE OR EXPLOSION MAY RESULT, CAUSING DEATH OR SEVERE INJURY. WARNING: DO NOT HEAT ANY SUBSTANCE ABOVE A TEMPERATURE WHICH WILL CAUSE IT TO EMIT TOXIC FUMES—DEATH OR SEVERE INJURY MAY RESULT. -
Page 10: Replacement Parts
NOTE: MAKE NO ATTEMPT TO SERVICE OR REPAIR A LAB-LINE PRODUCT UNDER WARRANTY BEFORE CONSULTING YOUR LAB-LINE DEALER. AFTER THE WARRANTY PERIOD, SUCH CONSULTATION IS STILL ADVISED, ESPECIALLY WHEN THE REPAIR MAY BE TECHNICALLY SOPHISTICATED OR DIFFICULT. IF ASSISTANCE IS NEEDED BEYOND WHAT THE DISTRIBUTOR CAN PROVIDE, PLEASE CALL THE LAB-LINE CUSTOMER RELATIONS DEPARTMENT AT (319) 556-2241 OR (800) 522-5463. - Page 11 Cordset: 470-187-00 Door, Acrylic (Models 105, 106): 540-262-00 Door, Acrylic (Models 125, 126, 150): 540-261-01 Door, Acrylic (Models 150): 540-261-00 Door Handle: 560-263-00 Thermometer Holder Grommet: 790-022-00 Thermometer: 910-136-00 Heater, 100/120V units: 340-152-00 Heater, 240V units: 340-152-01 Heater, 100V/100W (100-5JPN, 120-5JPN): 340-152-02 Heater, 100/120V units (150): 340-209-00...
-
Page 12: Warranty
WARRANTY Page 1 of 2 LAB-LINE INSTRUMENTS, INC. (“Lab-Line”) warrants that the product manufactured by Lab-Line shall be free of defects in materials and workmanship for a period of time defined on the following page from the first to occur of (i) the date the product is sold by Lab-Line or (ii) the date the product is purchased by the original retail customer (the “Commencement Date”). - Page 13 Page 2 of 2 12 MONTH PARTS WARRANTY: • All Environmental Chambers • Low Temperature B. O. D. Incubators • Animal Study Chamber • Controlled Environment Centers • Biological Work Station • Refrigerators, Freezers • Chromatography Refrigerators (5 year parts warranty on compressor only) •...
- Page 14 FIRST IN INSTRUMENTS SERVICING SCIENCE, INDUSTRY, RESEARCH AND EDUCATION SINCE 1908.
- Page 15 ACCESSORY CHECKLIST The following loose parts and accessories are packed with this unit. Before discarding any packing materials, please be sure that nothing has been overlooked.
- Page 16 MODEL NO: 100, 100IDE, 100JPN, 100-5JPN, 101, 105, 106, 120, 120JPN, 120- 5JPN, 121, 125, 126, 150, 150JPN, 152 CHECKED BY: __________ DATE __________ PACKED BY __________ CHECKED ITEM PART NUMBER QUANTITY _________ Operation Manual 057-139-00 _________ Shelf (Models 100, 100IDE, 100JPN, 100-5JPN, 101, 105, 106,120, 120JPN, 120-5JPN, 121, 125, 126)
Need help?
Do you have a question about the Lab-Line 100 and is the answer not in the manual?
Questions and answers

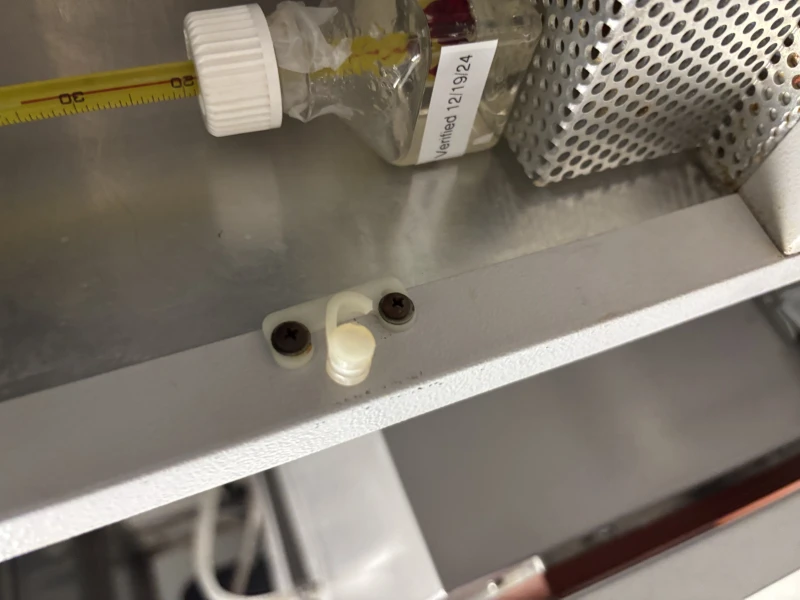

Hello my name is Paul and I work for Anheuser-Busch in the qa lab in Columbus Ohio. We have a couple lab line incubators model 100 serial #’s 1298-1757 and 0999-0135. The plastic door clasps are broken and I was wondering how to get replacement clasps
The manual does not specifically mention replacement plastic door clasps. However, for replacement parts, you can refer to the replacement parts section of the manual or contact Thermo Scientific customer service at 1-800-553-0039.
