Operating instructions

CO
-Incubator
2
®
Heracell
150i/240i
Thermo Scientific

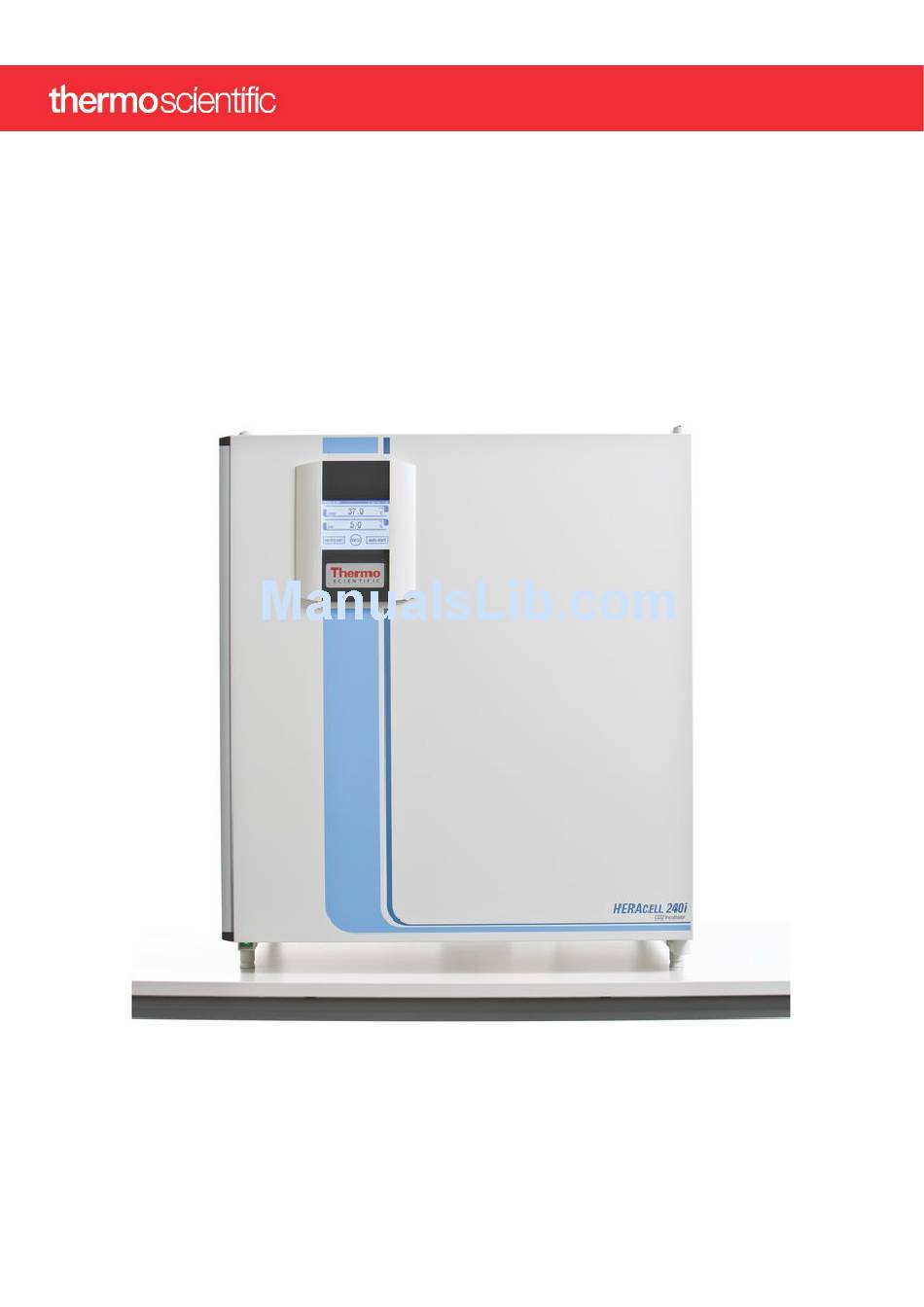

Heracell 150i/240i 50115191_C_01-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heracell 240i and is the answer not in the manual?

Questions and answers

Related Manuals for Thermo Scientific Heracell 240i

Summary of Contents for Thermo Scientific Heracell 240i

  • Page 1: Operating Instructions

    Operating instructions -Incubator ® Heracell 150i/240i Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 2 This operating manual is important for your safety as well as for the setup, installation, use and maintenance of the equipment! To avoid errors and any resulting damage, especially personal injuries, be sure to read this man- ual carefully before using the equipment and follow all instructions. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 3: Table Of Contents

    Gas connection ............65 Thermo Scientific...

  • Page 4: Table Of Contents

    Replacing the door seal ..........157 Disposal ....................Chapter 11 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 5: Table Of Contents

    Program HERACELL® 150i / 240i ........185 Device log ....................Chapter 14 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 6 Gas tight screen ..........112 Thermo Scientific...
  • Page 7 Magnetic door seal replacement ........158 Thermo Scientific...
  • Page 8 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 9: Chapter 1 General Notes

    Enquiries from North America: Phone +1 800-879 7767 +1 828-658 0363 E-Mail info.labequipment@thermofisher.com Enquiries from Latin America: Phone +1 828-658 2711 +1 828-645 9466 E-Mail info.labequipment@thermofisher.com Enquiries from Asia Pacific: Phone +852-2711 3910 +852-2711 3858 E-Mail info.labequipment@thermofisher.com Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 10: Instruction Of The Operating Personnel

    • Keep these operating instructions close to the device so that safety instructions and important information are always accessible. Should you encounter problems that are not detailed adequately in these operating instructions, please contact Thermo Scientific immediately for your own safety. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 11: Warranty

    1.5 Warranty Thermo Scientific warrants the operational safety and functions of the CO incubator only under the condition that: • the device is operated and serviced exclusively in accordance with its intended purpose and as described in these operating instructions, •...
  • Page 12 Hot surfaces! Fire hazard! Explosion hazard! Suffocation hazard! Symbols on the device CE conformity mark: confirms conformity according to EU Guidelines VDE test mark Mark of conformity USA/Canada Observe operating instructions! Mark of prescription devices! Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 13: Intended Purpose Of The Device

    • Laboratories in the central area of clinics and hospitals The gases required for the incubator (CO and / or O ) are supplied to the device from a separate gas supply system, either from gas cylinders or from a central pressurized gas container. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 14: Standards And Directives

    • Safety data sheets of the gas suppliers with regard to the particular characteristics of CO and N • Principles of good microbiological proceedings, notice of the trade association of the German chemical industry. For other countries, the applicable national regulations are binding. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 15: Safety Notes

    • The place of installation must be thoroughly ventilated in order to expel the gases escaping around the pressure relief valve to the outside. • Only original replacement parts authorized by the manufacturer are to be used. • Refer to the Appendix titled "BASIC RULES OF SOUND MICROBIOLOGICAL ENGINEERINGPRACTICE Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 16: Safety Notes On Gases

    • For cleaning these device components, use only oil- and grease-free lubricants. • Keep all connections and components of the oxygen system free from substances that contain oil, grease, or lubricant! Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 17: Operational Safety Rules

    CO -incubator. • The tempering of defined substances or materials with higher moisture content can result in increased condensation in the chamber. Measures on page 77 must be observed. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 18 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 19: Chapter 2 Delivery Of The Device

    • completeness • possible damage If components are missing or damage is found on the device or the packaging, esp. damages caused by humidity and water, please contact the line-hauler as well as the Technical Support of Thermo Scientific immediately. Caution...
  • Page 20 *1) connecting hose set, gas monitoring (optional) connecting hose set, gas monitoring (optional) *1) O sensor with gas humidification set is packed in a separate carton and placed into the work space during transport. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 21 Solid glass door 6-door gas tight components (in piece) Solid glass door 6-door gas tight and continuous screen and and split shelves screen and split shelves (standard continuous shelves (optional) shelves (optional) version) (standard version) connecting hose Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 22 *2) For bottle turning devices, the version with split shelves is not available. *3) Each level of a bottle turning device is packed in a separate box. The boxes (1 to 4) are delivered with the device. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 23: Chapter 3 Installation Of The Device

    • Power line voltage variations must not exceed ±10 % of the nominal voltage. • Transient surges must lie within the range of levels that normally occur in the power supply Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 24: Room Ventilation

    When installing the device, make sure that the installation and supply connections are freely accessible. The control box on the rear panel of the device may serve as a spacer to adjacent objects. The Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 25 The height of the floor stand should not fall below 200 mm. Device dimensions Figure. 1. Note Accessibility of the devices: To ensure the accessibility for care and maintenance works, keep larger side and rear distances. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 26: Transport

    After transport or storing under humid conditions a drying-out process must be performed. During the drying-out process the equipment cannot be assumed to meet all the safety requirements of the IEC 61010-2-010 standard. The drying-out period is 2 hours. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 27: Stacking

    3.5 Stacking ® HERA 150i/240i is suited for stacking up to two devices of the same device type. CELL HERAcell 240i only: For thermal separation, an adapter plate [3] can be placed between the two devices. ® HERA 150i CELL •...

  • Page 28: Intermediate Storage

    • door hinge replacement on outer door and glass door • lockable outer door • split inserts • infrared (IR) sensor • PCB for USB interface Note Modifications: Retrofitting and modifications must only be performed by the Technical Service of Thermo Electron LED GmbH. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 29: Chapter 4 Description Of The Device

    Figure. 4. 1. Stacking elements 2. Plug caps 3. Glass door 4. Measuring cell with blower wheel and sensors 5. Door switch 6. Oxygen sensor (optional) 7. Pressure compensation opening with insert 8. Measuring opening Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 30 19. Support hook for shelf 20. Access port with plug 21. Glass door seal, replaceable 22. Operating panel (touchscreen) 23. Door handle ® 4.2. Rear view HERACELL 150i ® Rear view HERACELL 150i Figure. 5. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 31 (independent of device type) 14. Distributor connection for looping through the O gas supply for up to 3 additional devices (independent of device type) 15. Diagram: Gas connection CO and O with optional gas monitoring Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 32 5. Gas pressure hose for looping-through the gas supply 6. Diagram: Gas connection CO and O with optional gas monitoring ® 7. HERA 150i with looped-through gas supply; therefore device must only be equipped with CELL combined gas connection (optional) CO and O Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 33 4. Measuring cell with blower wheel and sensors 5. Door switch 6. Oxygen sensor (optional) 7. Receptacle for bottle turning device (optional) 8. Measuring opening 9. Plug for bottle turning device (optional) 10. Outer door Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 34 20. Support rail 21. Shelf 22. Latch, glass door 23. Support hook for shelf 24. Pressure compensation opening with insert 25. Access port with plug 26. Glass door seal, replaceable 27. Operating panel (touchscreen) 28. Door handle Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 35 4. Control box with supply interface for combined gas connection (optional) CO and O without gas monitoring 5. Diagram: Gas connection CO and O without gas monitoring 6. O gas cylinder 7. CO gas cylinder 8. Secondary CO gas supply B with optional gas monitoring Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 36 3 additional devices (independent of device type) 15. Diagram: Gas connection CO and O with optional gas monitoring ® Looped-through gas supply for HERA 240i: CELL ® Looped-through gas supply HERACELL 240i Figure. 9. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 37: Safety Devices

    55 °C. The principle of air jacket heating and the additional, separate heating of the outer door and glass door/gas-tight screen minimize the risk of condensate formation at the side walls, at the ceiling of the work space, and at the glass door/gas-tight screen. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 38 For cleaning the interior, the recommendation is mild soap solution in water then rinse to remove residues. Wipe the interior surfaces ans parts with a diluted quaternary ammonium disinfectant. Follow this by wiping with 70 % alcohol to remove any remaining traces of the disinfectant. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 39 The O -content of the work space atmosphere can be controlled depending on the configuration of the sensor within a range of 1 % to 21 % and 5 % to 90 %. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 40: Door Switch

    The outer door can only be closed after the glass door has been latched properly. Note Versions with gas-tight screen: For devices with the optional gas-tight screen, the door switch function described above is activated when the outer door is opened. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 41: Sensor System

    O sensor are integral to the control system of the device. Their measured values are compared to the selected set values. Based on this data, the control system controls heating and CO supply. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 42 • an error message is issued • the alarm relay responds If the error message is accepted, the display shows the Over temperature icon to indicate the response of the thermal protection, and the temperature display is highlighted in red. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 43: Supply Interface

    Chapter 4 Description of the device 4.9. Supply interface Supply interface Figure. 12. All supply connections are installed in the supply interface (control box [1]) in the rear of the device. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 44 The connection to the power supply system is established by connecting a cable with plug for IEC connector [9] to the socket [8]. The receptacle for the two device fuses is integral to the socket. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 45: Work Space Components

    Chapter 4 Description of the device 4.10. Work space components Work space components Figure. 13. The work space of the incubator has only a minimum of surface, thereby supporting both the prevention of contamination and easy, effective decontamination. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 46 The components of the shelf system can be removed easily so that only the easily treatable, surface-reduced interior container [1] remains in the work space for cleaning and manual disinfection works. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 47 • work space temperature • CO concentration • O concentration • relative humidity Advantage of the gas-tight screen: The cross sections of the openings are smaller when samples are accessed. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 48 [2] that issues an alarm message at the display and an audible signal when the water falls below the minimal level. The embossings [3] in the water tray are used as indicators for the maximal level. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 49 The outer door of the device is also heated. The heat radiated onto the interior glass door/gas-tight screen prevents condensate formation. The work space of the device always remains visible, despite high humidity. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 50 A pressure compensation opening with insert in the rear panel of the device allows a compensation between the pressures in the work space and in the operating room. A sealable access port allows cables, hoses or additional sensors to be routed into the work space of the device. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 51 The support rails [1] of the shelf system are perforated every 42 mm so that the support hooks [8] can be inserted variably for any culture container size required. The shelves [2] have an integrated tilt protection and withdrawal stop. For details of the shelf system, see Section „Start-up“. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 52 240i may be equipped with up to four separate bottle turning devices. Each unit consists CELL of a roller insert [6] with a drive roller [4] and four idle rollers [7] that are also rotated due to the transmission function of the inserted cylinders [5]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 53 The rotating speed of the bottle turning devices is set depending on two parameters: • Diameter (of the cylinders used), • drive roller set value. The value is determined using a diagram (see „Installing the optional bottle turning devices HERACELL® 240i“ page 62). Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 54 Chapter 4 Description of the device 4.10.9. Water pump Water pump Figure. 17. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 55 4. Suck the water, therefore pump the water pump using the hand grip [6] about four times until water flows in the outlet hose. 5. Let the water run into the bucket [2] through gravity. 6. Wipe out the rests of the water at the floor plate of the water reservoir. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 56 Chapter 4 Description of the device Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 57: Preparing The Work Space

    • gas humidification (optional), • work space surfaces, • work space seals and gaskets, • glass door/gas-tight screen. Note Decontamination: For details about the cleaning and disinfection of the device (see „Cleaning and disinfection“ page 133). Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 58: Installing The Shelf System

    Tools are not required for the installation of the shelf system. The support rails are secured using spring pressure. After the support hooks have been inserted into the rail, the shelves are pushed onto the support hooks. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 59 [5] and [2]. 2. Clamp the lockspring [3] behind the upper embossing [1]. 3. To remove the support rails, pull the lockspring tab down out of the embossing and remove the rail. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 60 2. Rotate the adjustable device stands using the supplied 24 mm wrench until the shelf is positioned horizontally in all directions. Perform the adjustment of the device stands from left to right and from rear to front. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 61 1. Install hose [2] to the sleeve of the gas humidification and then to the sleeve [3] of the device-integral oxygen or nitrogen supply line. 2. Place gas humidification immediately to the rear panel of the device and align it parallel to the rear panel. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 62 8. The diagram shows the common bottle diameters as different graphs (ascending straight). • Set the desired speed at the Y axis. Read the corresponding set value (in %) from the X axis at the point of intersection of the Y value with the specific graph. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 63 Example: • Bottle diameter: 56 mm • Desired speed: 3.5 rpm • Determined set value: 48 % In the dialog box SPEED BOTTLE TURN. DEVICE, the value 48 % is set (see „Options“ page 110). Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 64 2. Then, position the lower rod guide [5] of the center strut into the hole [6] in the work space floor and remove spring tension. 3. The center strut is stabilized by the spring pressure. Note Configuration with split inserts: For versions with split inserts, bottle turning devices cannot be installed. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 65: Gas Connection

    Set the gas supply to a range between 0.8 bar min. and 1.0 bar max. and make sure that this pressure setting cannot be changed! 5.7.1. Installing gas pressure hoses Installing gas pressure hoses Figure. 24. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 66 The pipe of the pressure compensation opening must not be extended or redirected. 5.7.2. Installing devices without the optional gas monitoring system Gas connection without gas monitoring system Figure. 25. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 67 (optional) Gas connection with gas monitoring system (optional) Figure. 26. The gas supply from the gas supply system to the device is established by the supplied flexible gas pressure hoses. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 68 By looping the gas supply through, up to 4 devices can be supplied by a CO gas supply. 5.7.4. Combined CO connection with gas monitoring system (optional) Combined connection with gas monitoring system (optional) Figure. 27. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 69: Power Supply Connection

    Do not use damaged components when connecting the device to the power supply! The device must be connected only to a correctly installed and grounded power supply source: • Fusing T 10 A • Circuit breaker G 16 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 70 Note Make sure that power sockets remain freely accessible at all times! To allow a rapid disconnection of power in case of an emergency, make sure that power outlets remain freely accessible at all times! Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 71: Connecting The Rs 232 Interface

    2. Connect the serial interface cable connector (not included in the standard equipment) to the socket at the device supply interface at the rear of the device. 3. Connect the second connector to an unassigned serial port COM 1/COM 2 etc. at the PC. 4. Turn the PC on. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 72: Connecting The Usb Interface (Optional)

    Note Skilled work: Thermo Scientific warrants the operational safety and the operativeness of the device only if installation and repairs are performed properly. The connection of the device to an external alarm system must only be carried out by adequately trained...
  • Page 73 To avoid overloading and damaging the alarm contact, check the electrical interfacing parameters of the alarm-receiving system for compatibility with the alarm-relay specifications given above. Note Blackout: If the alarm relay reports a blackout, no display appears and the switches do not blink. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 74 CO -incubator in the stack. 3. Connect the connector [5] of the alarm system connecting cable to the interface [6] at the control box at the rear panel of the device. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 75: Chapter 6 Operation

    • Disinfecting and cleaning the incubators work space with fuzz-free materials. • Disinfect the work space according to the operator-specified hygiene guidelines. • Don‘t use any explosive disinfectants. When using alcohol as a disinfectant, attend the national regulations. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 76: Starting Operation

    8. The temperature control adjusts the temperature to the selected set value, humidity rises. 9. When temperature and relative humidity are constant, the automatic adjustment of the measuring system is performed. 10. The CO control supplies the set amount of CO Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 77 Overloading may damage the shelves or cause the shelves and/or the CO2-incubator to tilt. When the shelves are being drawn out, ultimately destroying the samples. To avoid overloading the incubator or its shelving be sure to observe the sample weight limits specified in chapter 12. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 78: Interruption Of Operation

    Make sure to prevent Contamination when operation is interrupted. 1. Remove all samples an brought in tools from the device, then clean and disinfect them. 2. Clean and disinfect the internal space. 3. Eliminate any debris. 4. Decontaminate the device. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 79: Chapter 7 .......................................................Handling And Control (Icantm Touchscreen Controller)

     After a short audible signal and a short dark phase, the touchscreen display appears.  The control loop sensors pass the heat-up phase (see „Heat-up phase of the control loop sensors“ page 84). • To turn the device off: Press the power switch; the switch illumination goes off. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 80: Operating Panel And Operating Structure

    • O display [5] (optional) • contra-con key [2] • menu key [4] • auto-start key [6] Note Extended pressure-sensitive area: To accept a failure message, the entire touchscreen can be used as a pressure-sensitive area. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 81 5. Key for opening the menu navigation 6. Key for starting the auto-start routine 7. Actual value CO 8. Set value CO 9. Temperature actual value 10. Temperature set value 11. Current date and time Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 82 7. Key for opening the menu navigation 8. Key for starting the auto-start routine 9. O display 10. O actual value 11. O set value 12. Temperature actual value 13. Temperature set value 14. Current date and time Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 83: Structure Of The Operating Levels

    • A: Direct access to the control loop settings: Temperature, CO set value and bottle turning device (optional), • B: Start of the device routines contra-con or auto-start, • C: Navigation through the submenus for device configuration. Menu structure overview Figure. 34. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 84: Heat-Up Phase Of The Control Loop Sensors

    When the device has been switched on, the control loop sensors pass through a heat-up phase of varying duration during the start process: Temperature control loop 10 s control loop 10 s control loop with IR measuring cell 3 min control loop 5 min Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 85: Event Actions For Settings

    To save changed values, press the Enter key. Resetting the settings: Unless a user action (contact with the pressure-sensitive areas and keys) occurs within 30 seconds, the system automatically exits the menu and the most recently confirmed setting defaults. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 86: Setting The Temperature Set Value

    1. Press the TEMPERATURE DISPLAY key [1].  The Temperature menu is displayed. 2. To exit the Temperature menu:  Press the END key [2]. 3. To set the temperature set value:  Press the SET VALUE key [3]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 87 4. To accept and save the set value:  Press the ENTER key [5].  The system returns to the main menu. The temperature displays shows the actual value currently measured in the work space. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 88 2. To exit the CO menu:  Press the END key [2]. 3. To set the CO set value:  Press the SET VALUE key [3]. To increase the set value:  Press the + key [6]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 89 The gas monitoring system remains active even when the CO control is switched off. For set values of 21 % O2, the O control is switched off and error monitoring is disabled as well. The control loop error monitoring system (optional) is enabled. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 90 DISPLAY key [1].  The O menu is displayed. 2. To exit the O menu:  Press the END key [2]. 3. To set the O set value:  Press the SET VALUE key [3]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 91: Auto-Start Routine

    When temperature and relative humidity have reached constant values, the CO measuring system is automatically adjusted to these values, and the work space is supplied with the preset quantity of CO Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 92 • actual value below set value (excessive deviation) • set value not plausible • calibration values too high or too low • sensor communication failure • sensor parameter not plausible • no communication with LM 75 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 93 If the auto-start routine is to be run dry (without water in the floorpan of the work space), the water level sensor must be disabled prior to its start (see „Options“ page 110). Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 94 2. Fill the floorpan of the work space with a sufficient quantity of water. The filling level must not exceed the upper filling level mark. 3. Set the set values for temperature, CO and O on the touchscreen. 7.12.1.2. auto-start routine activation: 1. Press the auto-start key [2]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 95 The auto-start routine is restarted automatically if the routine is canceled due to one of the following events: • The glass door is opened, • the outer door is opened on a device with optional gas-tight screen, • the power supply is interrupted. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 96 1. To resume the auto-start routine:  Press the BACK key [1].  The system returns to the status display, and the auto-start routine is resumed. 2. To cancel the auto-start routine:  Press the END key [2]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 97: User Configuration

    • Keypad lock coding • Date/time setting • Contrast setting • Key tone setting • Interface configuration • User display screen language setting • Reminder interval setting Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 98  Press the corresponding numeric keys.  The number combination is displayed hidden in the input box [1]. 2. To delete the input numbers:  Press the DELETE key [2]. 3. To exit the menu: Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 99 Changing the user-defined code: The user-defined code can be changed as often as required using the same procedure: • Activate the recoding function by entering the valid code. • Enter the new code and confirm it. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 100 4. The system returns to the Date/Time menu. 5. Enter the time accordingly. 6. To accept and save the input value:  Press the ENTER key [3].  The system returns to the Date/Time menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 101  Press the - key [2]. 3. The value change appears in the display [1].  To accept and save the change:  Press the ENTER key [3].  The system returns to the Settings/Setup menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 102  Press the - key [2]. 3. The value change appears in the display [1]. 4. To accept and save the change:  Press the ENTER key [3].  The system returns to the Settings/Setup menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 103  The system returns to the Interface menu. 5. To activate the new settings:  Browse back to the main menu.  Wait for approx. 10 seconds and perform a reset by switching the device off and on using the power switch. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 104  Press the - key [2]. 3. The new language appears in the display [1]. 4. To accept and save the selection:  Press the ENTER key [3].  The system returns to the Settings menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 105 2. To reduce the number of days:  Press the - key [2]. 3. The value change appears in the display [1]. 4. To deactivate the reminder interval:  Set the value to OFF.  Press the - key [2]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 106 • Service interval: Request service. The service message can be confirmed. In this case, the Request Service icon is displayed. After the routines have been run successfully, the reminder messages are hidden. Factory settings: contra-con decontamination routine 90 days auto-start routine Service interval 365 days Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 107  Press the CONTINUE key [5]. 2. To browse backward in the list:  Press the PREVIOUS key [3]. 3. To exit the display:  Press the END key [4].  The system returns to the Event Logger menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 108  Press the - key [2]. 3. The value change appears in the display [1]. 4. To accept and save the change:  Press the ENTER key [3].  The system returns to the Event Logger menu Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 109  Press the END key [3].  The system returns to the Event Logger menu. Note Troubleshooting: For a detailed overview of causes for errors and their correction, please refer to the end of this chapter! Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 110 1. To toggle between two states [1]:  Press the + key [4].  Press the - key [2]. 2. To accept and save the change:  Press the ENTER key [3].  The system returns to the Options menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 111 1. To toggle between two states [1]:  Press the + key [4].  Press the - key [2]. 2. To accept and save the change:  Press the ENTER key [3].  The system returns to the Options menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 112 Failure to set the gas-tight screen function in accordance with the actually installed door version may impair the incubation performance. Gas tight screen Figure. 54. 1. To toggle between two options [1]:  Press the + key [4]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 113  The system returns to the Options menu. 7.14.3.5. Switching the audible alarm on/off: If the device-integral monitoring system detects an error: • an audible alarm sounds • in addition to the visual error message and the switching of the alarm relay. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 114 100 % (see „Bottle turning device for HERACELL® 240i (optional)“ page 52). The drive roller of a bottle turning insert is activated as soon as a value >0 for the speed has been entered and saved. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 115  The system returns to the Bottle Turning Device menu. Note Quick access to bottle turning device levels: To directly access the Bottle turning device submenu, touch the Bottle turning device icon in the main menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 116  Press the - key [2]. 2. The value change appears in the display [1]. 3. To accept and save the setting:  Press the ENTER key [3].  The system returns to the Options menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 117 The switching state of the O control loop does not affect the function of the optional gas monitoring system. The gas monitoring system remains active even when the O control is switched off or the O sensor is disabled. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 118 The Icon Description dialog box [1] explains the meaning of the individual icons. Icon description overview Figure. 59. • To exit the display:  Press the END key [2].  The system returns to the Configuration menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 119 This indicator shows that the routine service is due. The display of the icon is controlled by the time entry in the REMINDER INTERVAL dialog box and it appears after the reminder message has been confirmed. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 120 If both bottles are empty: • an audible alarm sounds and the alarm relay switches, • an error message is displayed, • an entry is written into the error table, • an entry is written into the event list. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 121 3. To break off the input:  Press the BACK key[4]. The system returns to the Configuration menu. 4. To confirm the input:  Press the ENTER key [3].  The system returns to the Configuration menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 122 7.14.6. Software versions This menu shows the unit software versions in the display [1]. Software versions Figure. 62. • To exit the display:  Press the END key [2].  The system returns to the Configuration menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 123 (press onto screen at left of upper diagram frame) to the end (release at right of lower diagram frame).  Press any position within the marked rectangle area [2]. The section is now enlarged. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 124: Error Messages

    • a flashing warning triangle [1] is displayed in the main menu; the value indicators are no longer updated, • the detected error is listed in the error table, • the event is entered into the event display. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 125 • The Error dialog box [2] appears and the detected error is displayed, • the audible alarm is switched off. 2. To exit the error display: • Press the END key [3]. • The error message disappears. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 126 5. Switch on the device. If the overtemperature protection mechanism is re-activated although the potential fault causes (see error table) have been eliminated, take the device out of service and contact the technical service center. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 127: Troubleshooting

    Chapter 7 Handling and control (iCanTM touchscreen controller) 7.16.3. Troubleshooting The error tables indicate source of error, cause of error, and possible corrections. For any communication with the Technical Support of Thermo Fisher Scientific, please have the device data ready. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 128 Service. Failure bottle Communication Contact Ser- turning device between bottle turning vice device and main board faulty Tem- Sensor breakage Detected value is out of Contact Ser- pera- limit vice ture Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 129 LM75 sensor cannot Contact Ser- communicate with vice mainboard Failure EEPROM NV-Ram sensor faulty Contact Ser- sensor vice Sensor breakage Detected value is out of Reset limit auto-start. When failure is recuring con- tact Service Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 130 A Gas cylinder B Gas cylinder B is empty Replace gas empty cylinder B Failure EEPROM NV-RAM sensor error Contact Ser- sensor vice Sensor breakage Detected value is out of Contact Ser- limit vice Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 131 2 If failure is detectec, a special sample protection controlling will be enabled. To indicate the start of this routine, the icon overtemperature is displayed. The routine will be disabled after a power reset. 3 After changing the set value, error time will be set on 159min, after door opening on 45 min.(O on 159 min.). Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 132 8. Clean the work space and wipe the device dry. 9. Until the device is shut down, the work space must be continuously ventilated. Leave the glass door and the outer door open and secure them in this state. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 133: Decontamination Procedures

    The following disinfection procedures are compatible with the device: Wipe/spray disinfection: The wipe/spray disinfection is used as the standardized manual disinfection procedure for the device and for all accessories. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 134: Wipe/Spray Disinfection

    Observe safety regulations to avoid fire and/or explosion hazard caused by alcohol-containing disinfectants (ZH 1/598). Chloride-containing disinfectants! Chloride-containing disinfectants can corrode stainless steel. • Use only disinfectants that do not affect stainless steel! Preparing the manual wipe/spray disinfection: Warning Electric shock! Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 135 Notice Moisture-sensitive components! Do not spray disinfectant onto the CO sensor in the measuring cell baseplate or onto the O sensor. 4. Allow the disinfectant to react as specified by the manufacturer. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 136 3. Reinstall the shelf system and the removed components. Note Functional check: After the installation, check to see if the blower wheel is securely attached to the axle and if it can rotate freely, then secure cover using the screws. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 137: Contra-Con Decontamination Routine

    During this routine, a hot and humid atmosphere at 90 °C with highly decontaminating effect is created in the work space. The effectiveness of the contra-con decontamination routine has been certified by independent institutes. Information on these tests is available from Thermo Scientific upon request.
  • Page 138 During the contra-con decontamination routine, the work space is heated up to 90 °C. Make sure that: • all samples are removed from the work space, • all accessories are removed from the work space. Notice The contra-con decontamination routine must be performed every 3 months. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 139 When the remaining run time has elapsed to 0 hours, the device has reached the originally set working temperature again (e.g. 37 °C). The contra-con decontamination routine must then be stopped by pressing the appropriate key. Decontamination routine phases Figure. 66. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 140 1. Press the CONTRA-CON key [1].  The contra-con-instruction menu [2] is displayed. 2. To exit the contra-con-instruction menu and contra-con:  Press the END key [4].  The system returns to the main menu. 3. To activate contra-con: Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 141  The run of the contra-con decontamination routine starts.  While the contra-con decontamination routine is running, the display shows the current status [5] and outputs the following information: • Temperature, • start time, • phase, • remaining run time. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 142 If the STOP key is pressed, the routine is interrupted and the contra-con Stop dialog box is opened as a security request. The routine can now be ultimately canceled or resumed. 2. To cancel contra-con:  Press the END key [2]. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 143  If the decontamination routine is not canceled after this, cool-down to the set temperature occurs. 2. To cancel contra-con:  Press the END key [2].  The error message is displayed.  If the error message is confirmed, the system returns to the main menu. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 144  The system returns to the main menu. Note Opening door during contra-con decontamination: If the door will be opened and closed again whilst contra-con decontamination is running, the routine returns to a phase which will ensure a continuation without faults. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 145: Inspections And Checks

    • perform temperature and CO comparison measurement. Annual service: • Replace gas inlet filter. • Perform Technical Service inspection. Note Service contract: Thermo Scientific offer a device-specific service contact that comprises all test and service works required. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 146: Equipment Log Book

    (e.g. a bowl filled with glycerol). The center of the work space is the reference location for the comparison measurement. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 147 Chapter 10 Maintenance Note Isothermal container: Thermo Scientific offer a device-specific service contact that comprises all test and service works required. Do not use a container filled with water as isothermal container as the evaporation of water will result in a lower temperature reading.

  • Page 148: Temperature Calibration Procedure

    [1] in the rear panel of the device. 5. Close the doors. 6. Wait until the temperature value displayed on the measuring instrument has stabilized. 7. Calibrate the temperature control as described in „Temperature calibration procedure“ page 149. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 149 10.6. Temperature calibration procedure Temperature calibration procedure Figure. 71. Measurement example: • Temperature set value: 37 °C Reference temperature: 36.4 °C 1. Press TEMPERATURE DISPLAY [1].  The temperature menu is displayed. 2. To exit the temperature menu: Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 150 Suitable instrument: • Portable IR readout instrument. The measuring sample is withdrawn through the sealable measurement opening of the glass door. The comparison measurement must be performed when the device is completely heated up. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 151 Chapter 10 Maintenance Preparing CO calibration Figure. 72. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 152 4. For devices equipped with the optional gas-tight screen, the measurement opening is located:  on HERA ® 150i [1] in the center gas-tight screen, CELL  on HERA ® 240i [2] in the left center gas-tight screen. CELL Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 153 CO concentration has been set to 4.0 % or more. Calibration should be performed with the CO set value designated for the work process (prospective work process value). Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 154 Chapter 10 Maintenance 10.8. CO calibration procedure calibration procedure Figure. 74. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 155: Replacing The Gas Inlet Filter

    If the value isn’t changed within the next 30 seconds, the system automatically exits the menu, and the most recently confirmed value is preserved. 10.9. Replacing the gas inlet filter The gas inlet filter (CO supply) has plastic threads and is screwed by hand into the threaded hole at the control box. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 156: Replacing The Device Fuses

    10.10. Replacing the device fuses The two identical device fuses [4] are installed in the fuse compartment [1] next to the power plug receptacle of the device: Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 157: Replacing The Door Seal

    4. Slide the fuse holder into the fuse compartment and press the holder on until the locking tabs are fully engaged. 10.11. Replacing the door seal The door seal (magnetic seal) [3] of the outer door is located in the retaining slot. No tools are required to replace the seal. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 158 2. Position the new seal at a corner [2] and press the seal retaining rail [4] into the slot. 3. Make sure that the retaining rail taper is positioned correctly in the slot [1] and that the seal is flush with the door frame. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 159: Chapter 11 Disposal

    Device rear panel Galvanized steel sheet Outer door Galvanized steel sheet, painted Door inner panel Galvanized steel sheet, painted Operating panel and indicator foil Polyethylene Magnetic door seal Magnetic core sheated with EMPP Heating Silicone-sheated resistance-type wires Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 160 Glass door seal, measurement opening Tempered silicone Sensor block Stainless steel 1.4301 Blower wheel Stainless steel 1.4305 or copper Measuring cell base plate seal Tempered silicone Cables Plastic-sheated copper flexible Packaging Corrugated board, polyethylene film and styro- foam Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 161: Chapter 12 Technical Data

    % rH approx 93 Constant humidity at 37 °C (low-humidity mode) % rH approx 90 Others Sound pressure level (DIN 45 635, Part 1) dB(A) < 50 Relative humidity of environment % rH max. 80 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 162 Circuit breaker G 16 0.58 (230 VAC) Rated input 0.62 (120 VAC) 0.43 (100 VAC) EMC class 1 Determined on the basis of DIN 12880 for devices with standard equipment. See detailed information in calibration. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 163 Constant humidity at 37 °C (low-humidity mode) % rH approx 90 Others Sound pressure level (DIN 45 635, Part 1) dB(A) < 50 Relative humidity of environment % rH max. 80 Location elevation m ASL max. 2000 Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 164 Circuit breaker G 16 0.64 (230 VAC) Rated input 0.65 (120 VAC) 0.63 (100 VAC) EMC class 1 Determined on the basis of DIN 12880 for devices with standard equipment. See detailed information in calibration. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 165: Heracell® 150I

    The assigned COM port can be located in the Windows Device Manager/Ports dialog box, e.g. USB Serial Port (COM5), and is then defined as communication port in the „Program HERACELL® 150i / 240i“ page 185). HERACELL® 150i / 240i program (see Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 166: Chapter 13 Data Communication

    150i/240i and to a PC. CELL As soon as the Windows Hardware Detector has identified the USB port, the FIND NEW HARDWARE WIZARD dialog box opens. 1. Select the INSTALL FROM A LIST OR SPECIFIC LOCATION (ADVANCED) option. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 167: Interfaces

    After the installation has been completed successfully, the routine is completed with FINISH. The interface transmission speed can be selected within the defined baud rates (9,600, ® 19,200, 38,400, 57,600 Baud) at the touchscreen of the HERA 150i/240i (see „Settings“ CELL page 97). Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 168: Communication

    Response: !:aaaa:bb::cc<CR> where: aaaa = parameter address bb = amount of payload in this telegram (00 – ff) cc = checksum: Inverted XOR of all bytes without checksum and <CR> XXXX = bb payload bytes Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 169: Overview Of General Parameters (Addresses 0Xxx)

    Motherboard version number 8 digits 0010 Output date and time 17 bytes/decimal value in format [hours:minutes:seconds], xx:xx:xx;xx:xx:xx [day:month:year] 0011 Date 8 bytes/decimal value in format xx:xx:xx [day:month:year] 0012 Time 8 bytes/decimal value in format xx:xx:xx [hours:minutes:seconds] Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 170: Overview Of Incubator Parameters (Addresses 2Xxx)

    O 2300 Up to 241 bytes/hexadecimal value, for- Read error memory (current errors) mat see corresponding chapter 2301 Up to 241 bytes/hexadecimal value, for- Read error memory (prior errors) mat see corresponding chapter Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 171 Condensation Waiting period 1 0x08 Cool-Down Set tolerance band 0x09 Establish stable humidity 0x0A Await release Perform counter-voltage adjustment 0x0B Stop Waiting period 2 0x0C Determine offset 0x0D Read offset, check 0x0E Release 0x0F Stop Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 172: Error Memory Structure

    First data set: !:2300:fb:10b01060f372280000002: (with 21 bytes) Second data set:20b01060f38100001..:80 (beginning of the second data set after 21 bytes of the first data set and of the separator [1 byte]) 13.5.1. Error memory data set structure scheme: Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 173 General device status, control loop for temperature and CO General device status 0x0002 Device Door open too long 0x0004 Display fails to communicate 0x0008 Mainboard parameter implausible (EPROM faulty) 0x0010 Data logger faulty (device remains operative) Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 174 Communication error (to sensor) 0x0040 Gas cylinder changeover switch fails to communicate 0x0080 No gas, cylinders A and B empty 0x0200 Cylinder A empty 0x0400 Cylinder B empty Water level error status 0x0001 No water Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 175: Data Logger Structure

    (byte 8-15 or ASCII character 16-31). Example of a response: First data set !:2400:e0:010b01060f3700000177002800d4000011 (consisting of 32 byte ASCII characters) Second data set0b01060f3800000172003200d20352..:80 (beginning of the second data set after 32 bytes of the first data set) Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 176 • The device status reports no particularities, • the temperature is 37.5°C, • gas concentration 4.0% CO , 21.2% O Note Example of a code: For an example of a code, please refer to the end of this chapter. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 177 Status/error registration for temperature, and rh 0x61 contra-con successfully completed Current actual values for temperature, and rh 0x62 contra-con completed with error Status/error registration for temperature, and rh 0x63 contra-con stopped manually Status/error registration for temperature, and rh Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

  • Page 178: Examples Of Data Logger Codes

    1. byte: indicates the event (e.g. door open 0x31, measured value entry 0x01) 2. byte: day of entry 3. byte: month 4. byte: year 5. byte: hour 6. byte: minute 7. byte: device status 8. byte: device status 9. to 16. byte: various data on the event Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 179 // insert 4-digit address strncpy (&string[2], p, 4); // calculate checksum: inverted XOR of all bytes // without checksum and <CR> for (i = 0; i < 11; i ++) bcc = (bcc^string[i]); // copy checksum Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 180 // number with one decimal place char a[12]; char i, l; int rest = 0; l = 0; // Negative number? if (z < 0) { // set algebraic sign b[0] = '-'; l = 1; // convert value Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 181 // writing the title line in the file WriteFile (FileHandle, "Date;Time;Comment;Temp Act.;CO2 Act.;O2 Act.;rH Act.;Temp Set;CO2 Set;O2 Set;rH Set;\n", 85); // infinite loop while (1) // set data logger to beginning and read if (!GetTele){ send_telegramm ("2400"); else{ Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 182 ++] = ':'; len += time_2_str (zahlenstring[5+i*SIZE_DATA2], &excelstring[len]); excelstring[len ++] = ':'; len += time_2_str (0, &excelstring[len]); excelstring[len ++] = ';'; switch (zahlenstring[i*SIZE_DATA2]){ case EVENT_STATUS: // check cyclic entries for device errors status = zahlenstring[6+i*SIZE_DATA2]*0x100+ Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 183 ++] = ';'; // enter set values from here len += num_2_str (SollTemp, &excelstring[len]); excelstring[len ++] = ';'; len += num_2_str (SollCO2, &excelstring[len]); excelstring[len ++] = ';'; len += num_2_str (SollO2, &excelstring[len]); excelstring[len ++] = ';'; Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 184 // query all events here (see „Overview of possible event entries in bit coding“ page 177) // cancel 0xFF indicates the end of the data logger case 0xFF: WriteFile (FileHandle, "End;\n",5); return 0; Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 185 13.8.1. Installing the HERACELL 150i / 240i 1. Starting the installation routine:  On the data CD in the subdirectory PROGRAMS, double-click on the file SETUP.EXE to open this file. 2. Locate the installation directory for the program. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 186 User menu structure: The user surface is divided into two main menus: • MAIN with two functional elements:  Program version output FIRMWARE VERSION  Switch for exiting the program: QUIT • GENERAL with the submenus: Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 187 4. Press the CHANGE button. 5. Save the settings (in an INI file): 6. Press the SAVE TO FILE button. Note Transmission speeds: The transmission speed settings in the user menu PRESETTING and of the device must be identical! Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 188  If the incubator returns a response string, the communication connection to the incubator has been established.  If a connection cannot be established, an error dialog is displayed: 4. Exit the error dialog:  Press the OK button. DATE & TIME Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 189 The submenu ERROR LOGGER is used for reading the error messages into the text box of the user surface. The data sets can be stored in the meta format *.CSV. • Saving data sets as files:  Press the SAVE TO FILE button. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 190  AMOUNT ERRORS: Therein the number of transmitted error messages. Note Duration of the data transmission: As the data logger can contain up to 10,000 data sets, the data transmission to a PC may take some time. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 191  Define file name and saving directory in the Windows dialog box. 2. Start saving process:  Press OK button. Note Duration of the procedure: The compilation of device informations and the creation of the service file may take some time. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 192 Chapter 13 Data communication PASSWORD The submenu PASSWORD can only be accessed by the service personnel of Thermo Fisher Scientific. Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 193 Chapter 14 Device log 14. Device log Please list carried out works here: Device type: Part number: Serial number: Service number: Location: Operator's note: Work carried out Notes Date Signature Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 194 Chapter 14 Device log Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...
  • Page 195 Chapter 14 Device log Thermo Scientific Heracell 150i/240i 50115191_C_01-2018...

This manual is also suitable for:

Heracell 150i

Table of Contents

Save PDF
