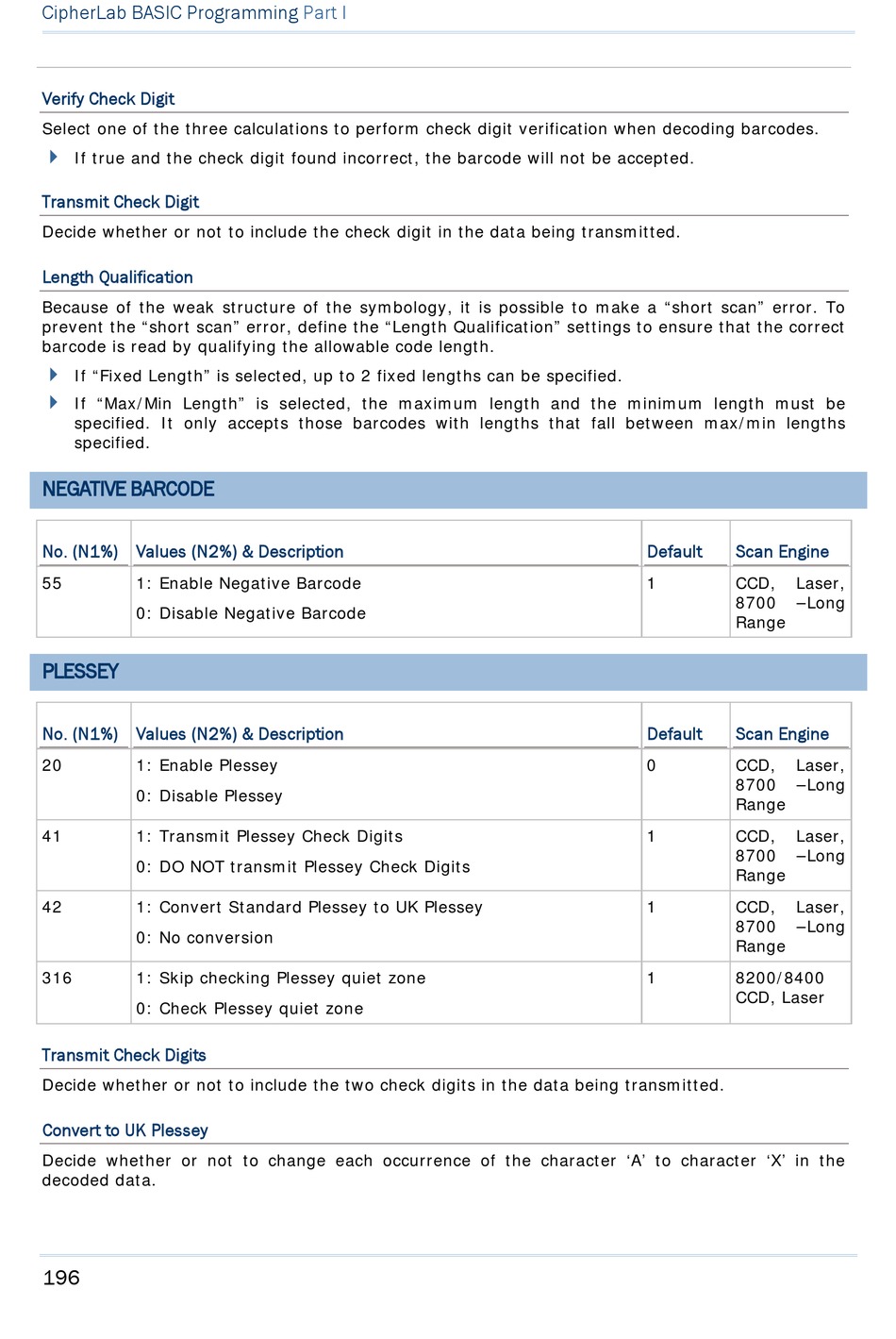

Negative Barcode; Plessey - CipherLab 8 Series User Manual

CipherLab BASIC Programming
Verify Check Digit
Select one of the three calculations to perform check digit verification when decoding barcodes.
 If true and the check digit found incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether or not to include the check digit in the data being transmitted.
Length Qualification
Because of the weak structure of the symbology, it is possible to make a "short scan" error. To
prevent the "short scan" error, define the "Length Qualification" settings to ensure that the correct
barcode is read by qualifying the allowable code length.
 If "Fixed Length" is selected, up to 2 fixed lengths can be specified.
 If "Max/Min Length" is selected, the maximum length and the minimum length must be
specified. It only accepts those barcodes with lengths that fall between max/min lengths
specified.

NEGATIVE BARCODE

No. (N1%) Values (N2%) & Description
55 1: Enable Negative Barcode
0: Disable Negative Barcode

PLESSEY

No. (N1%) Values (N2%) & Description
20 1: Enable Plessey
0: Disable Plessey
41 1: Transmit Plessey Check Digits
0: DO NOT transmit Plessey Check Digits
42 1: Convert Standard Plessey to UK Plessey
0: No conversion
316 1: Skip checking Plessey quiet zone
0: Check Plessey quiet zone
Transmit Check Digits
Decide whether or not to include the two check digits in the data being transmitted.
Convert to UK Plessey
Decide whether or not to change each occurrence of the character 'A' to character 'X' in the
decoded data.
196
Part I
Default Scan Engine
1 CCD, Laser,
8700 –Long
Range
Default Scan Engine
0 CCD, Laser,
8700 –Long
Range
1 CCD, Laser,
8700 –Long
Range
1 CCD, Laser,
8700 –Long
Range
1 8200/8400
CCD, Laser
