106 1: Enable UPC-A
0: Disable UPC-A (depends)
107, 1: Enable Only Addon 2 & 5 of UPC & EAN Families
109 (It requires "ANY" of the indexes to be set 1.)
0: Disable Only Addon 2 & 5 of UPC & EAN Families
(It requires "ALL" of the indexes to be set 0.)
 Refer to 11, 12, 14, 15, 17 and 18.
108 1: Enable UPC-E1
0: Disable UPC-E1 (depends)
110 2: Autodiscriminate UPC Composite
1: UPC Always Linked
0: UPC Never Linked
111 1: Enable Composite CC-A/B
0: Disable Composite CC-A/B
112 1: Enable Composite CC-C
0: Disable Composite CC-C
113 1: Code 93 Length Limitation in Max/Min Length Format
0: Code 93 Length Limitation in Fixed Length Format
114 Code 93 Max Code Length / Fixed Length1
115 Code 93 Min Code Length / Fixed Length2
Note
Length1 must be greater than Length2.
116 1: Code 11 Length Limitation in Max/Min Length Format
0: Code 11 Length Limitation in Fixed Length Format
117 Code 11 Max Code Length / Fixed Length1
118 Code 11 Min Code Length / Fixed Length2
Note
Length1 must be greater than Length2.
119 1: Industrial 25 (Discrete 25) Length Limitation in Max/Min
Length Format
0: Industrial 25 (Discrete 25) Length Limitation in Fixed
Length Format
120 Industrial 25 (Discrete 25) Max Code Length / Fixed Length1
121 Industrial 25 (Discrete 25) Min Code Length / Fixed Length2
Note
Length1 must be greater than Length2.

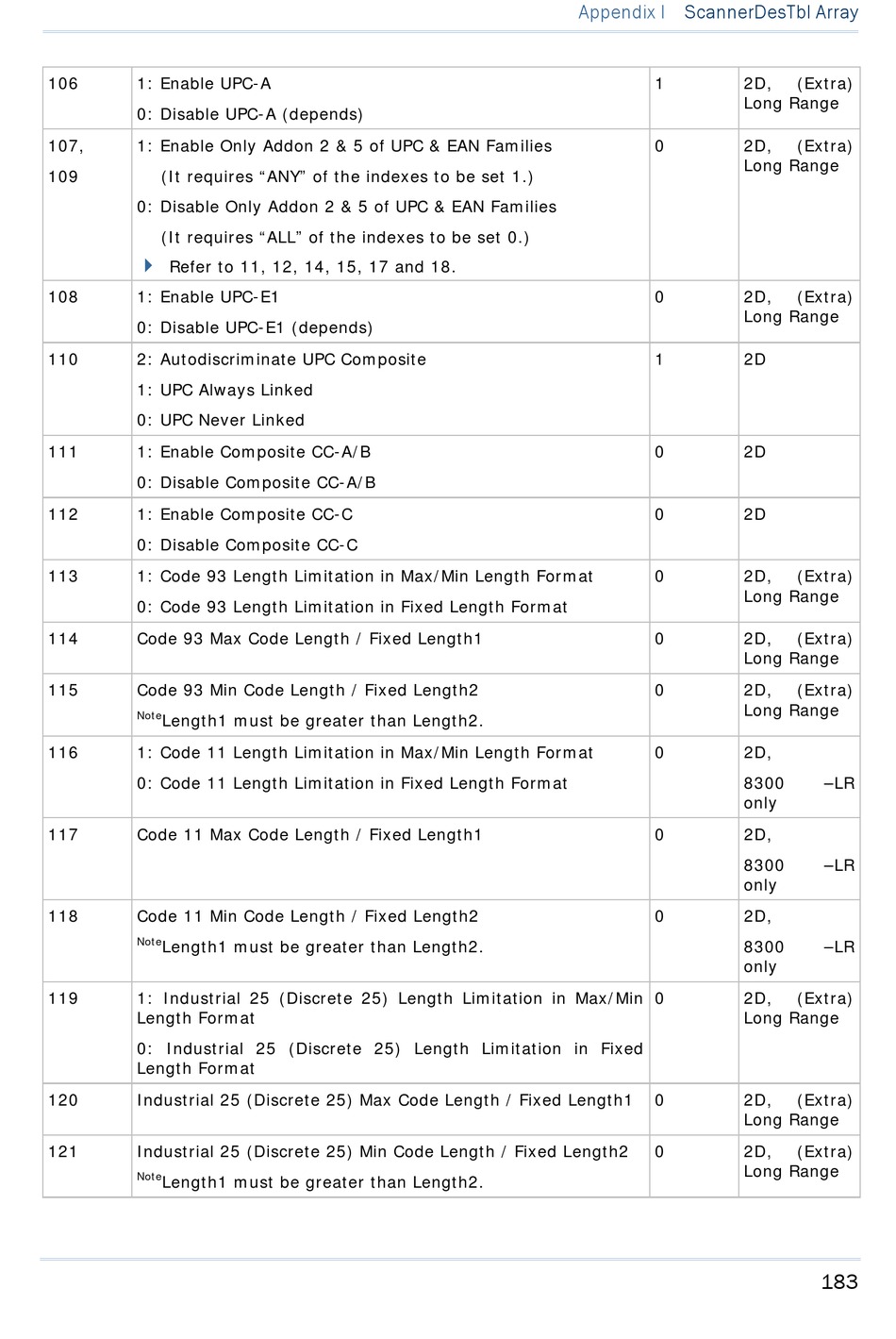

Appendix I ScannerDesTbl Array
1 2D,
Long Range
0 2D,
Long Range
0 2D,
Long Range
1 2D
0 2D
0 2D
0 2D,
Long Range
0 2D,
Long Range
0 2D,
Long Range
0 2D,
8300
only
0 2D,
8300
only
0 2D,
8300
only
0 2D,
Long Range
0 2D,
Long Range
0 2D,
Long Range
(Extra)
(Extra)
(Extra)
(Extra)
(Extra)
(Extra)
–LR
–LR
–LR
(Extra)
(Extra)
(Extra)
