CipherLab BASIC Programming

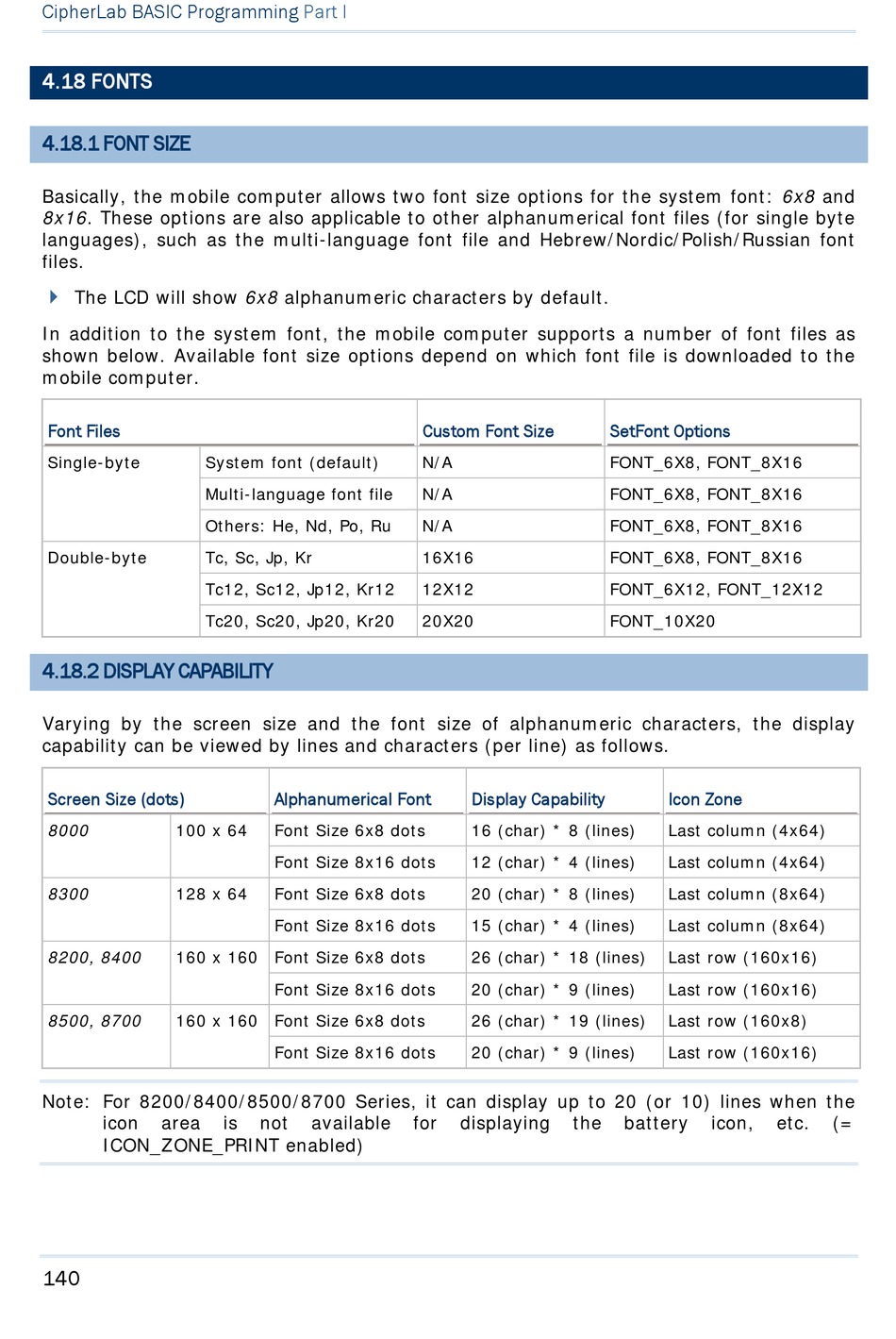

4.18 FONTS

4.18.1 FONT SIZE

Basically, the mobile computer allows two font size options for the system font: 6x8 and
8x16. These options are also applicable to other alphanumerical font files (for single byte
languages), such as the multi-language font file and Hebrew/Nordic/Polish/Russian font
files.
The LCD will show 6x8 alphanumeric characters by default.

In addition to the system font, the mobile computer supports a number of font files as
shown below. Available font size options depend on which font file is downloaded to the
mobile computer.
Font Files
Single-byte System font (default)
Multi-language font file
Others: He, Nd, Po, Ru
Double-byte Tc, Sc, Jp, Kr
Tc12, Sc12, Jp12, Kr12
Tc20, Sc20, Jp20, Kr20

4.18.2 DISPLAY CAPABILITY

Varying by the screen size and the font size of alphanumeric characters, the display
capability can be viewed by lines and characters (per line) as follows.
Screen Size (dots)
8000 100 x 64
8300 128 x 64
8200, 8400 160 x 160 Font Size 6x8 dots
8500, 8700 160 x 160 Font Size 6x8 dots
Note: For 8200/8400/8500/8700 Series, it can display up to 20 (or 10) lines when the
icon area
ICON_ZONE_PRINT enabled)
140
Part I
Alphanumerical Font
Font Size 6x8 dots
Font Size 8x16 dots
Font Size 6x8 dots
Font Size 8x16 dots
Font Size 8x16 dots
Font Size 8x16 dots
is not available
Custom Font Size
N/A
N/A
N/A
16X16
12X12
20X20
Display Capability
16 (char) * 8 (lines)
12 (char) * 4 (lines)
20 (char) * 8 (lines)
15 (char) * 4 (lines)
26 (char) * 18 (lines)
20 (char) * 9 (lines)
26 (char) * 19 (lines)
20 (char) * 9 (lines)
for displaying the
SetFont Options
FONT_6X8, FONT_8X16
FONT_6X8, FONT_8X16
FONT_6X8, FONT_8X16
FONT_6X8, FONT_8X16
FONT_6X12, FONT_12X12
FONT_10X20
Icon Zone
Last column (4x64)
Last column (4x64)
Last column (8x64)
Last column (8x64)
Last row (160x16)
Last row (160x16)
Last row (160x8)
Last row (160x16)
battery icon, etc. (=
