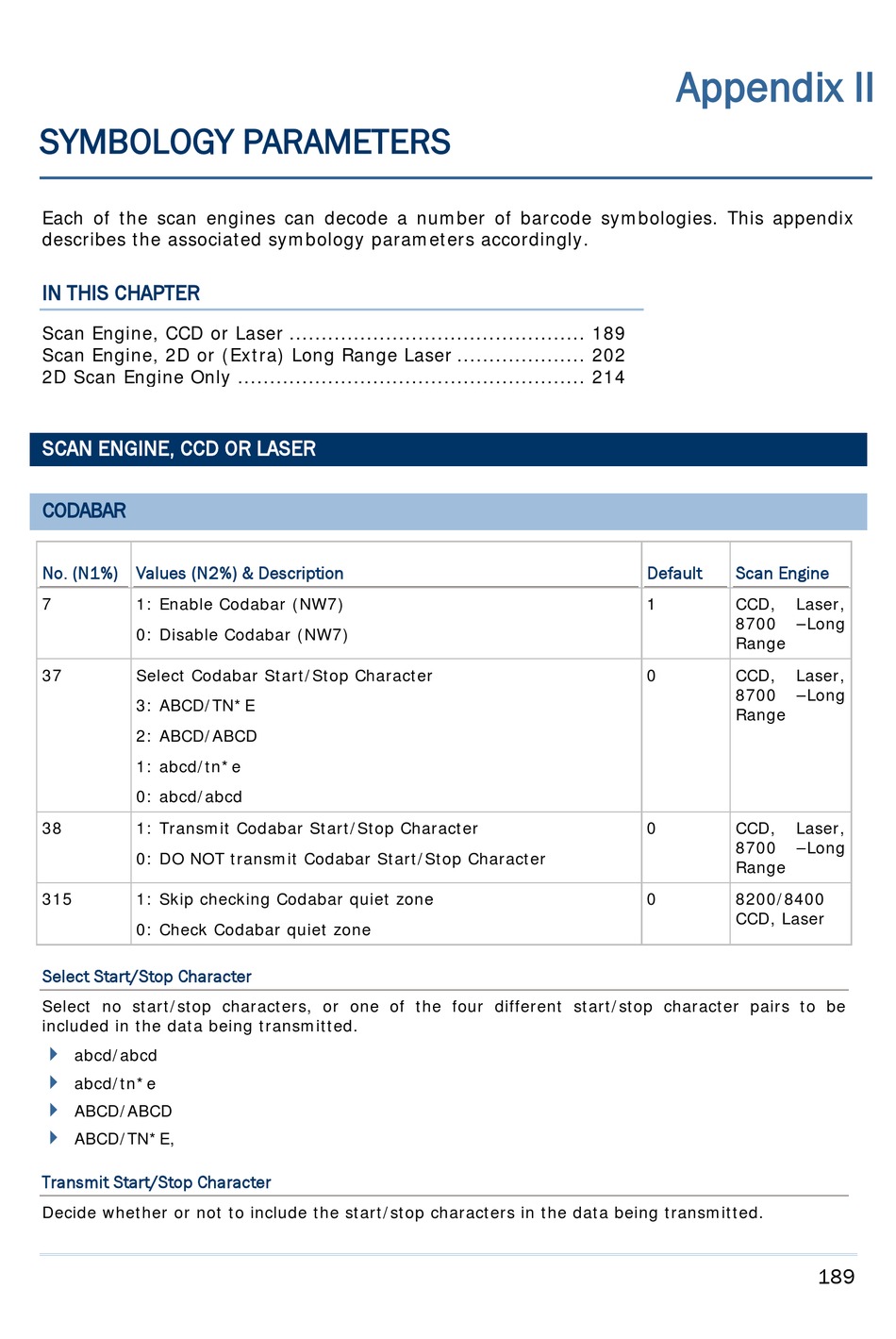

SYMBOLOGY PARAMETERS

Each of the scan engines can decode a number of barcode symbologies. This appendix
describes the associated symbology parameters accordingly.
IN THIS CHAPTER

Scan Engine, CCD or Laser .............................................. 189

Scan Engine, 2D or (Extra) Long Range Laser .................... 202
2D Scan Engine Only ...................................................... 214
SCAN ENGINE, CCD OR LASER

CODABAR

No. (N1%) Values (N2%) & Description
7 1: Enable Codabar (NW7)
0: Disable Codabar (NW7)
37 Select Codabar Start/Stop Character
3: ABCD/TN*E
2: ABCD/ABCD
1: abcd/tn*e
0: abcd/abcd
38 1: Transmit Codabar Start/Stop Character
0: DO NOT transmit Codabar Start/Stop Character
315 1: Skip checking Codabar quiet zone
0: Check Codabar quiet zone
Select Start/Stop Character
Select no start/stop characters, or one of the four different start/stop character pairs to be
included in the data being transmitted.
 abcd/abcd

abcd/tn*e
 ABCD/ABCD
 ABCD/TN*E,
Transmit Start/Stop Character
Decide whether or not to include the start/stop characters in the data being transmitted.
Appendix II
Default Scan Engine
1 CCD, Laser,
8700 –Long
Range
0 CCD, Laser,
8700 –Long
Range
0 CCD, Laser,
8700 –Long
Range
0 8200/8400
CCD, Laser
