CipherLab BASIC Programming

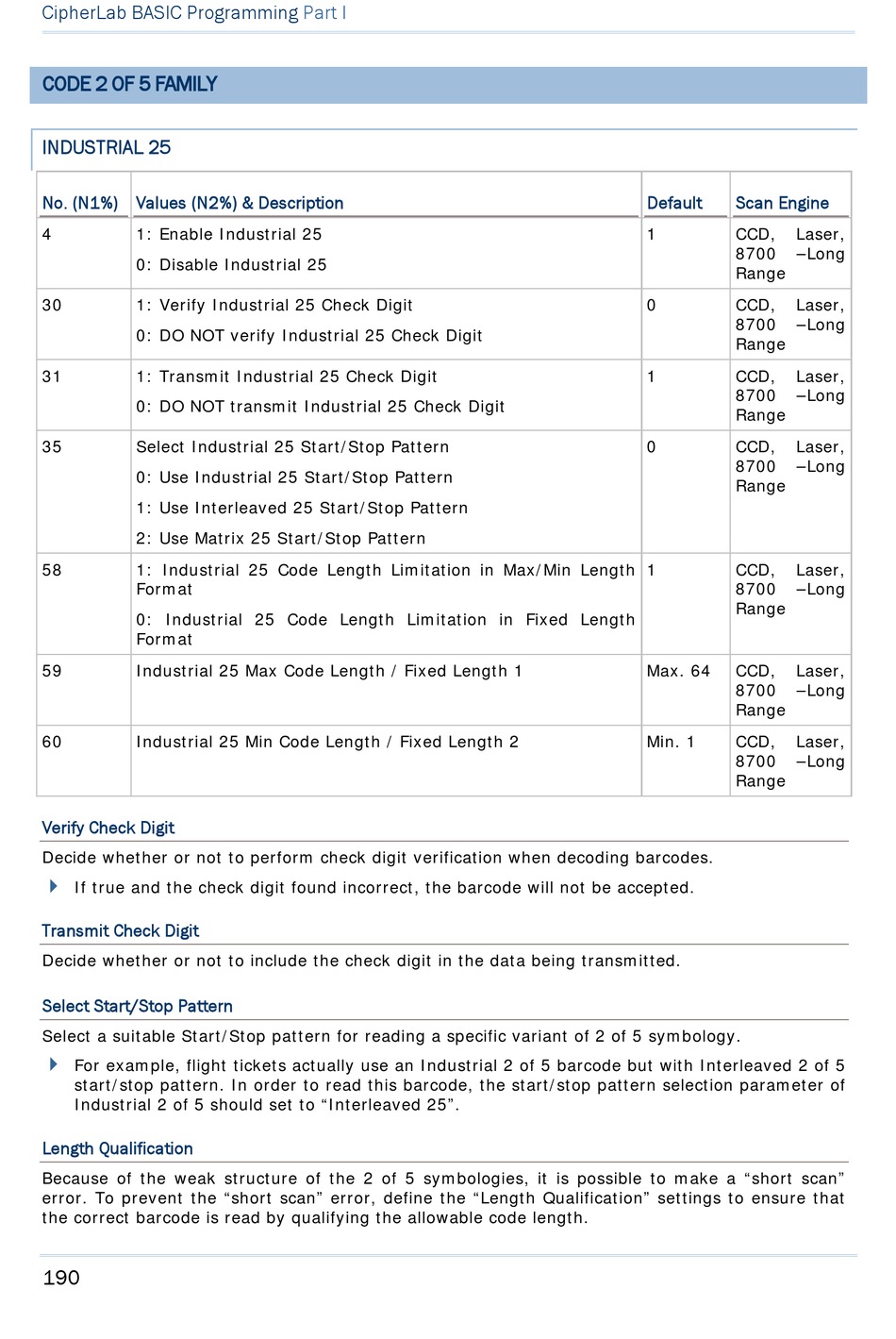

CODE 2 OF 5 FAMILY

INDUSTRIAL 25
No. (N1%) Values (N2%) & Description
4 1: Enable Industrial 25
0: Disable Industrial 25
30 1: Verify Industrial 25 Check Digit
0: DO NOT verify Industrial 25 Check Digit
31 1: Transmit Industrial 25 Check Digit
0: DO NOT transmit Industrial 25 Check Digit
35 Select Industrial 25 Start/Stop Pattern
0: Use Industrial 25 Start/Stop Pattern
1: Use Interleaved 25 Start/Stop Pattern
2: Use Matrix 25 Start/Stop Pattern
58 1: Industrial 25 Code Length Limitation in Max/Min Length
Format
0: Industrial 25 Code Length Limitation in Fixed Length
Format
59 Industrial 25 Max Code Length / Fixed Length 1
60 Industrial 25 Min Code Length / Fixed Length 2
Verify Check Digit
Decide whether or not to perform check digit verification when decoding barcodes.
 If true and the check digit found incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether or not to include the check digit in the data being transmitted.
Select Start/Stop Pattern
Select a suitable Start/Stop pattern for reading a specific variant of 2 of 5 symbology.
 For example, flight tickets actually use an Industrial 2 of 5 barcode but with Interleaved 2 of 5
start/stop pattern. In order to read this barcode, the start/stop pattern selection parameter of
Industrial 2 of 5 should set to "Interleaved 25".
Length Qualification
Because of the weak structure of the 2 of 5 symbologies, it is possible to make a "short scan"
error. To prevent the "short scan" error, define the "Length Qualification" settings to ensure that
the correct barcode is read by qualifying the allowable code length.
190
Part I
Default Scan Engine
1 CCD, Laser,
8700 –Long
Range
0 CCD, Laser,
8700 –Long
Range
1 CCD, Laser,
8700 –Long
Range
0 CCD, Laser,
8700 –Long
Range
1 CCD, Laser,
8700 –Long
Range
Max. 64 CCD, Laser,
8700 –Long
Range
Min. 1 CCD, Laser,
8700 –Long
Range
