With tandem chassis version (optional)

Pos: 54.22 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselfahrwerk Bild Tandem Swadro TC 680_TC 760_TC 760 X-tr @ 223\mod_1392119503864_78.docx @ 1809576 @ @ 1

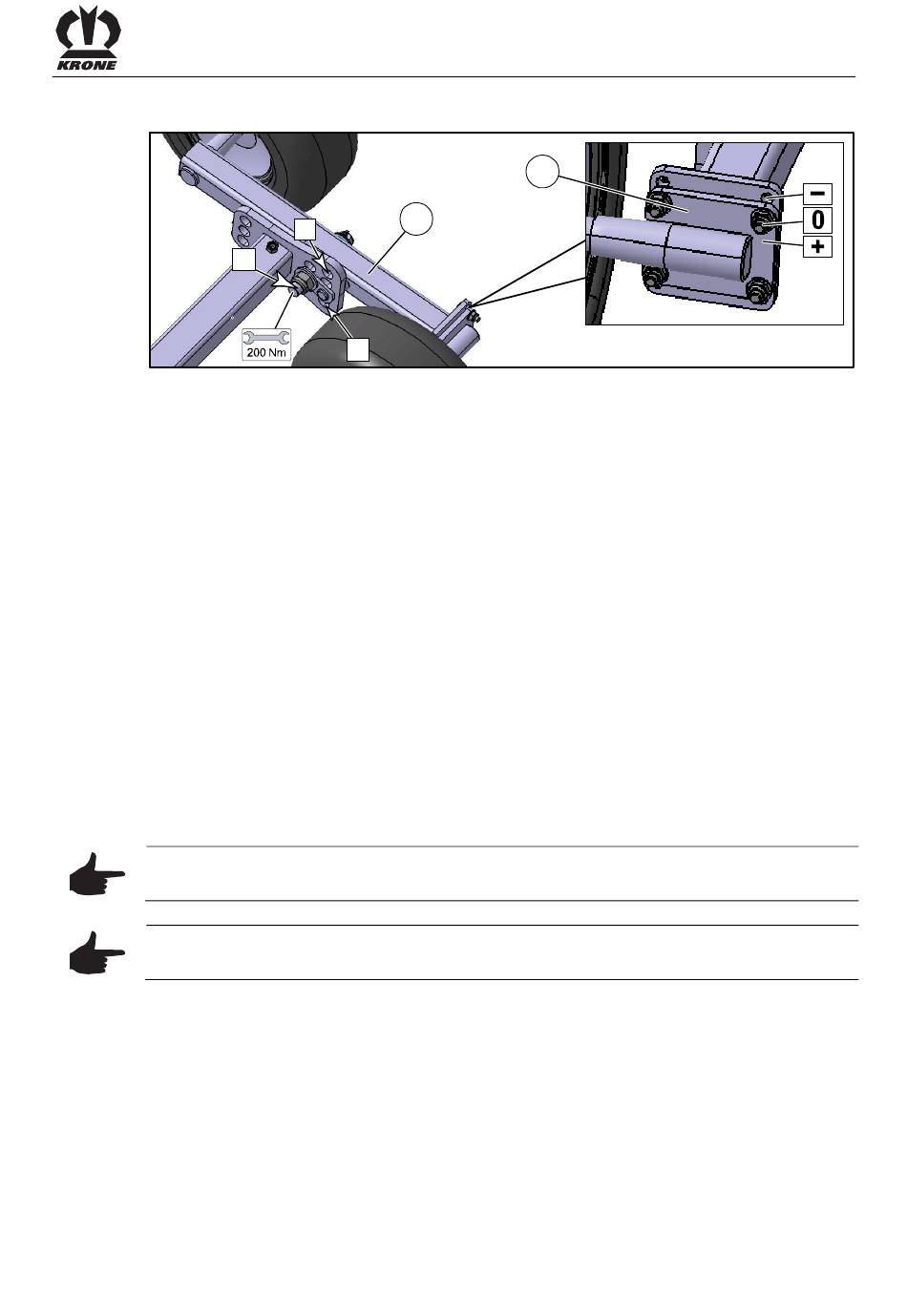

Fig. 47
Pos: 54.23 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_1342592918145_0.docx @ 1092566 @ @ 1
Pos: 54.24 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselneigung einstellen Text Position Swadro TC 680_TC 760 @ 223\mod_1392115158094_78.docx @ 1809262 @ @ 1
Adjusting the rotor pitch:
Pos. I = rotor pitch to the rear
Pos. II = rotor chassis is horizontal
Pos. III = rotor pitch to the front
Pos: 54.25 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselfahrwerk Vorgehensweise Swadro TC 680_TC 760 @ 223\mod_1392115608969_78.docx @ 1809320 @ @ 1
Do not walk beneath the raised rotor.
• Only lift the rotor arms as far as necessary to carry out changes.
• In order to adjust the rotor pitch, disassemble the rear guide wheels and reposition in the
hole pattern.
Pos: 54.26 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Kreiselneigung einstellen über Platte Swadro TC 680_TC 760 @ 223\mod_1392128879275_78.docx @ 1811092 @ @ 1
Fine adjustment via the plate (1):
+ = rotor pitch to the front
0 = rotor chassis is horizontal
− = rotor pitch to the rear
Do not walk beneath the raised rotor.
• Only lift the rotor arms as far as necessary to carry out changes.
• In order to adjust the rotor pitch, disassemble the plate and reposition in the hole pattern.
Pos: 54.27 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Hinweis Einstellung Kreiselneigung - Tandemachse waagerecht @ 224\mod_1392137715602_78.docx @ 1811996 @ @ 1
Note
When adjusting the rotor pitch, ensure the tandem axle (2) is horizontal.
Pos: 54.28 /BA/Einstellungen/Schwader/Kreiselfahrwerk/Hinweis schweres Futter - Fahrwerk innen möglichst niedrig einstellen @ 4\mod_1213084838226_78.docx @ 86157 @ 2 @ 1
Note
If the forage is heavy, adjust the inner running gear as low as possible!
