9.8
Swivelling parking support into transport position
Pos: 44.48 /BA/Inbetriebnahme/Schwader/Abstellstütze hochschwenken Bild @ 134\mod_1350458858615_78.docx @ 1186403 @ @ 1
1

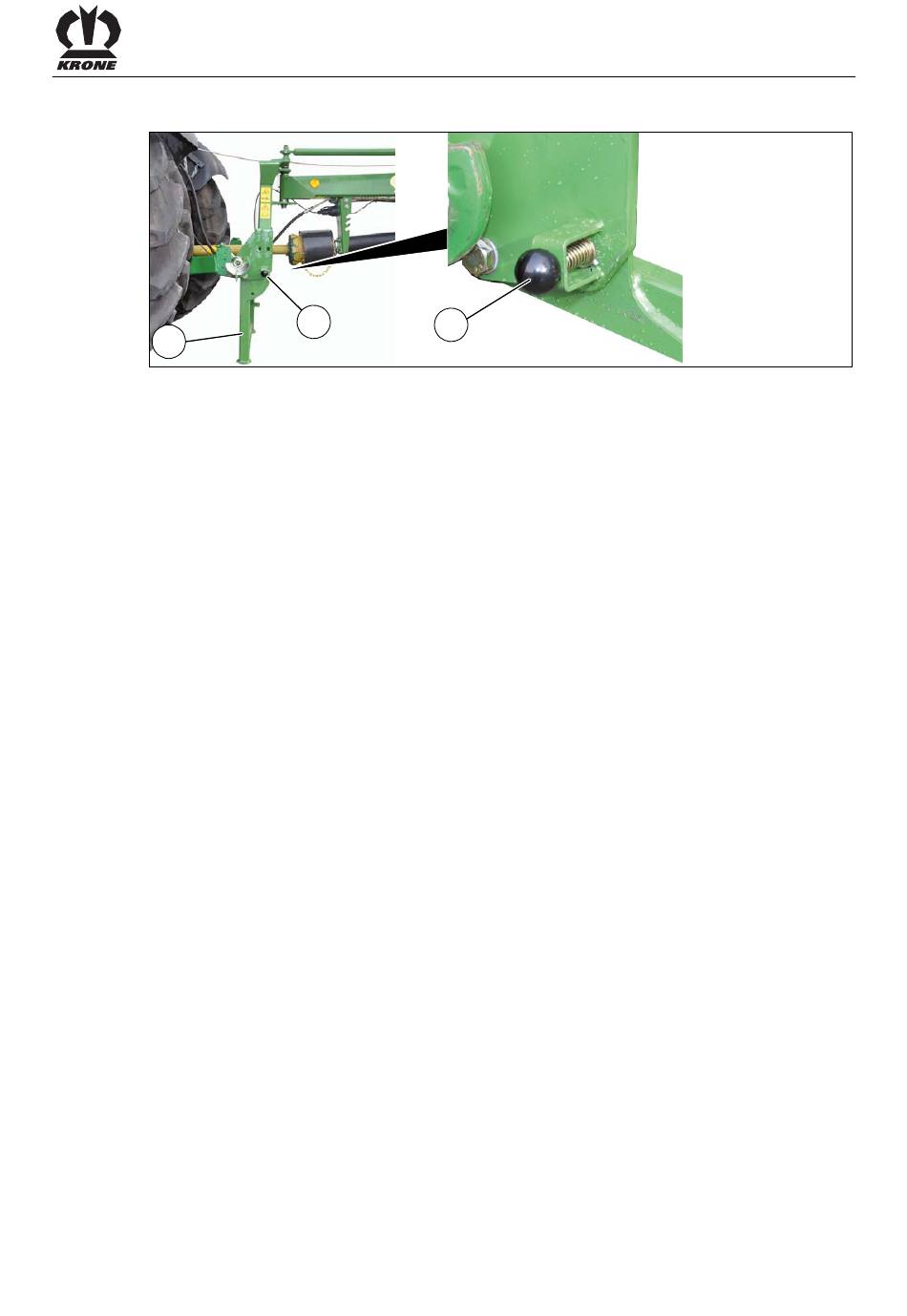

Fig. 20
Pos: 44.49 /BA/Inbetriebnahme/Schwader/Abstellstütze hochschwenken @ 156\mod_1363933455290_78.docx @ 1379305 @ @ 1
•
Raise the machine until the parking support (1) can be swivelled to the rear.
•
Turn off the tractor and secure it against the possibility of rolling back.
•
Pull the tension bar (2), swivel the parking support (1) to the rear by 90° and fix it in place in
this position by using the tension bar.
