For Design With Electrical Single-Rotor Lifting Mechanism - Krone Swadro TC 680 Original Operating Instructions

Pos: 48.17 /Überschriften/Überschriften 3/A-E/Bei Ausführung mit elektrischer Einkreiselaushebung @ 77\mod_1310050553942_78.docx @ 667522 @ 2 @ 1
11.3.3

For design with electrical single-rotor lifting mechanism

Pos: 48.18 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Kreiselarme senken -elektrisch SW TC 680_760 @ 206\mod_1386656590202_78.docx @ 1712145 @ @ 1
5
4

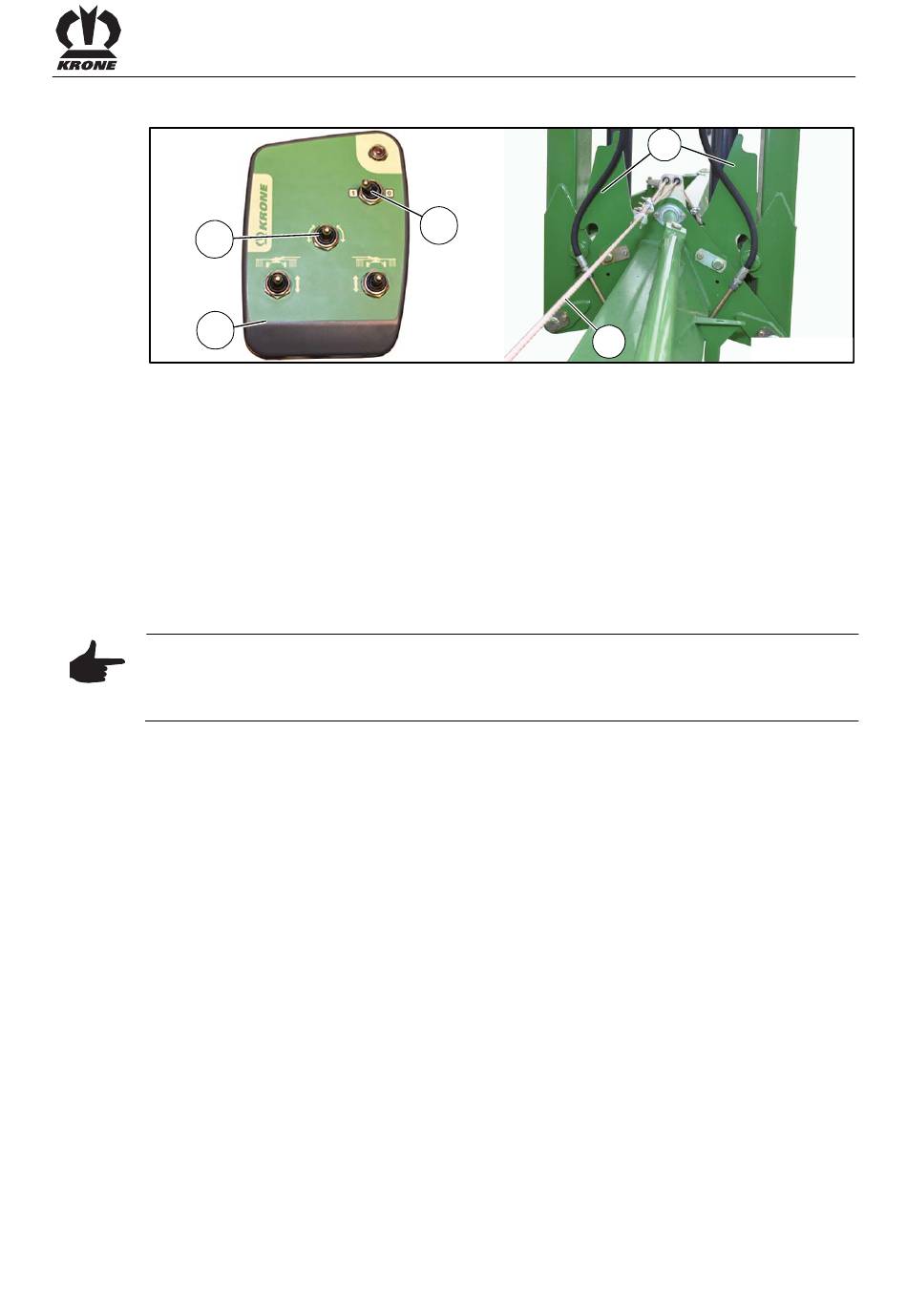

Fig. 32
• Attach the electric controls (4) in the tractor cabin.
• Start the tractor.
• Switch on the controls (0>1).
• Set switch (5) to the central position (II).
• To relieve the locks (1), actuate the single-action control unit at the tractor and pressurise
the hydraulic cylinders.
• To release the locks
• Set the single-action control unit (red 1+) of the tractor to the float position.
• When the rotors are in the working position, release the actuating rope (2).
• Switch off the tractor and secure it against the possibility of rolling back.
Pos: 48.19 /BA/Bedienung /Schwader/Kreiselarme senken/heben/Hinweis Kreiselarme senken ohne Einschhalten der Bedieneinheit @ 4\mod_1212065271530_78.docx @ 85064 @ @ 1
Note
The changeover of the rotor arms from the transport into the working position can also be done
without the electrical controls being switched on. In this case, both rotor arms are always
activated at the same time.
Pos: 48.20 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ 2 @ 1
3
(1), pull the actuating rope
1
2
(2) and keep it tensioned.
Operation
SW700067_1
55
