Pos: 48.51 /BA/Bedienung /Schwader/Arbeitstiefe einstellen/Einstellen der Arbeitstiefe elektrisch SW TC 680_760 @ 206\mod_1386659038787_78.docx @ 1712314 @ 22 @ 1
With Design - Electrical (Optional)
3

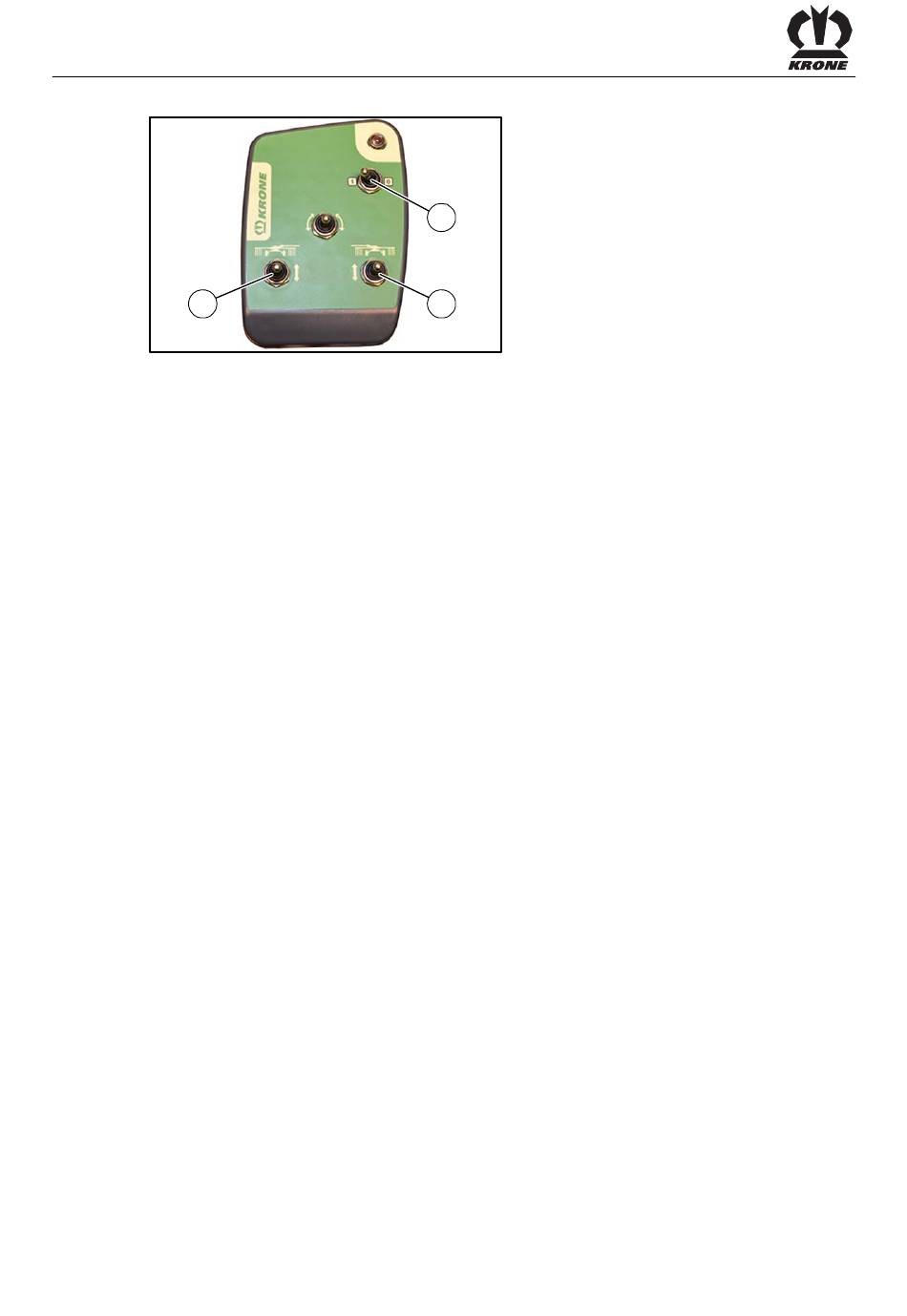

Fig. 39
The working depth may be adapted to the crop or to the guardrail during use or in headland
position.
To do this:
•
Raise the lower link until the steerable pinions are approx. 630 mm above the ground.
•
Move rotor arms to headland position or working position.
•
Switch on control unit.
Working Depth of the Left Rotor:
•
To increase the working depth of the left rotor, press the switch (3) upwards.
•
To reduce the working depth of the left rotor, press switch (3) downwards.
Working Depth of the Right Rotor:
•
To increase the working depth of the right rotor, press switch (4) upwards.
•
To reduce the working depth of the right rotor, press switch (4) downwards.
Pos: 48.52 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ 22 @ 1
62
1
4
SW700088_1
