Fukuda FL-601 Series Operational Manual page 70

MAINTENANCE FUNCTIONS
■ Work Volume Measurement using a Flow
Preparations
・Is the AIR SUPPLY (Test Pressure) being supplied?
・Is the A.P. SUP (Pilot Valve Operation Pressure) being supplied?
・Is the work bowl valve opened?
・Has a work been connected to the work port?
・Have the appropriate setting values been input?
・Are all the setting values correct?
・Have you prepared the pseudo leak master (Flow Master)?
・You cannot measure volume using a flow master in the H1 range.
CAUTION
*If you continue volume testing in the same work, please be sure to set enough exhaustion time.

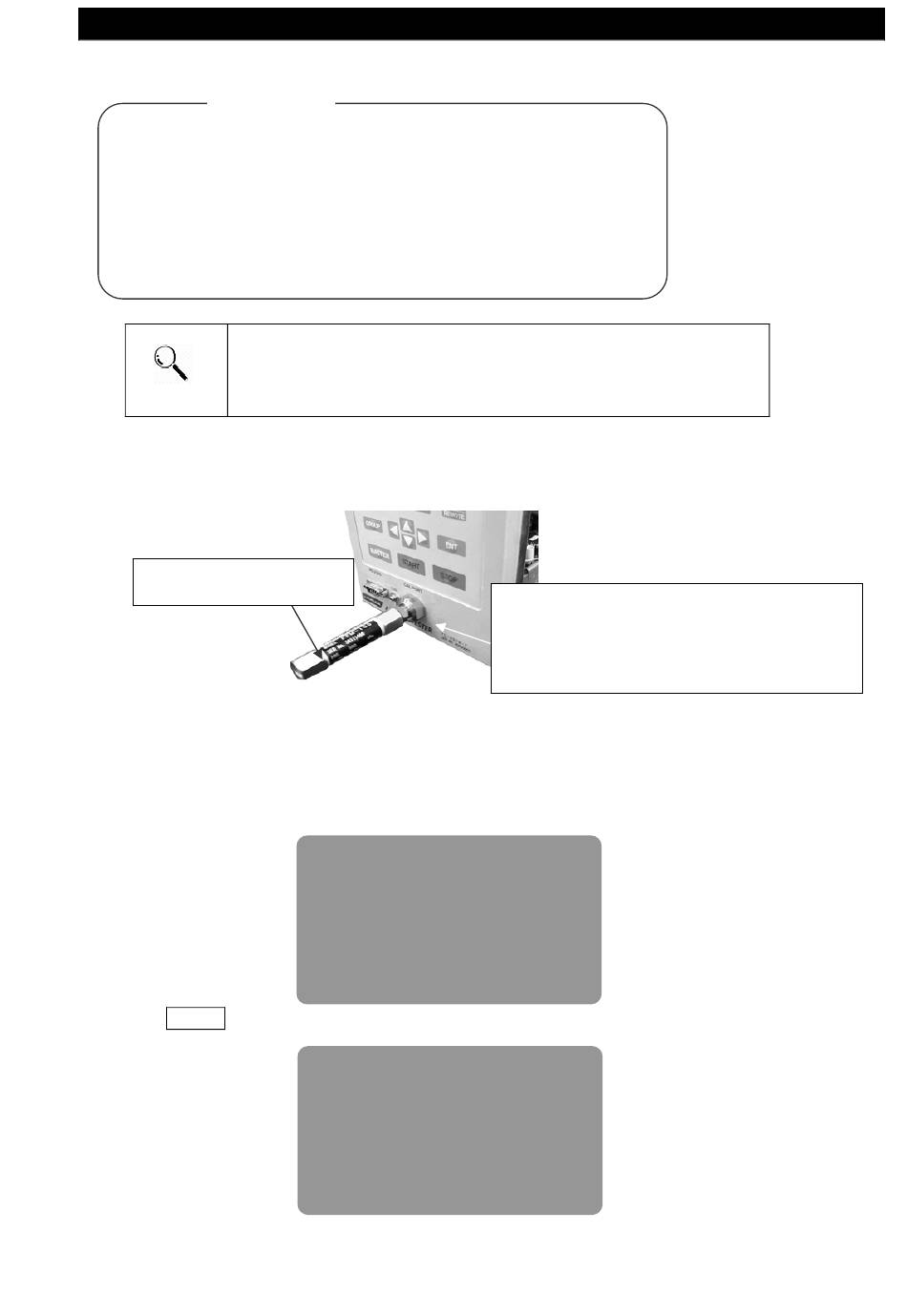

1. Connect the Flow Master to the CAL PORT
Flow Master Connection.
※ Volume testing cannot be performed while the tester is in Remote mode.
※ Keep the work clamped.
※ The flow master is available as an optional item.
2. Display the initial screen.
3. Press the MAINT key.
You must perform the volume measurement using a calibrator.
+000
Ready
Pass 0000
Maintenance
Work Volume Measurement Using a Flow Master
・Be sure that there are no leaks in the coupler.
・Use short piping if possible.
・If using a flow master, connect it
directly using a coupler.
Manual
kPa
GroupNo 00
69
