Fukuda FL-601 Series Operational Manual page 101

OPTIONALEQUIPMENT

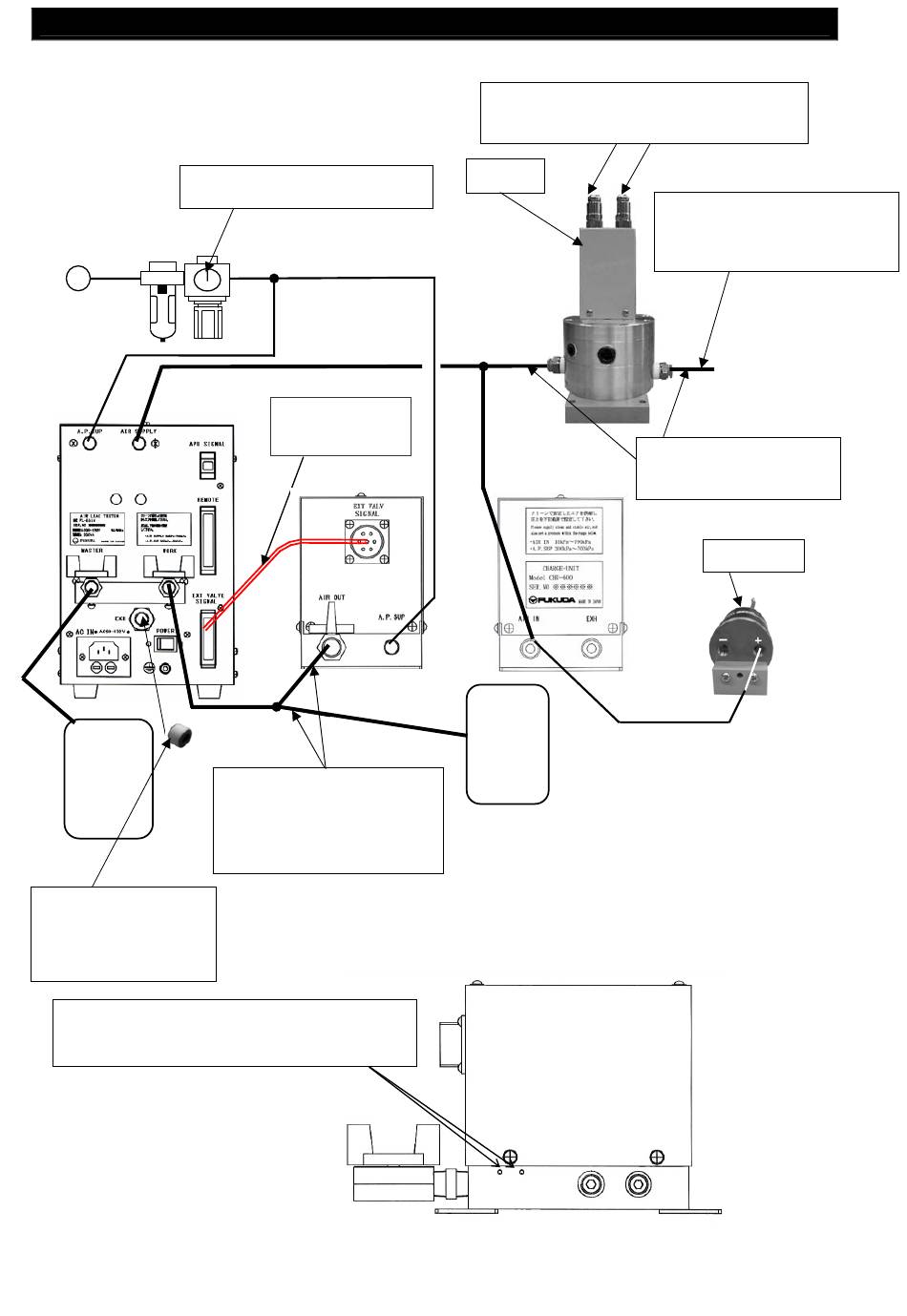

○ Basic Piping (Tester to Work)
(UL, L. M. Specifications)
Vacuum Pump
Please supply 300～400kPa air
Source Pressure
MASTER
Connect the Charge
Bypass blind plug
(included) to the
EXH port.
Do not close.
Used as a pilot operation valve exhaust port.
100
CHARGE BYPASS UNIT
EXH VALVE
SIGNAL Cable
Rear Panel
For warnings regarding
test wiring, please refer
to page 35 in
operational manual.
For APU wiring, please refer to APU unit
"Basic wiring" on page 102.
APU
OUT
Front Panel
WORK
the
Side Panel Drawing
For more information on
setting the APU
pressure, see page 101.
IN
Use the shortest piping
possible for the APU.
SX-100D
source
