Fukuda FL-601 Series Operational Manual page 40

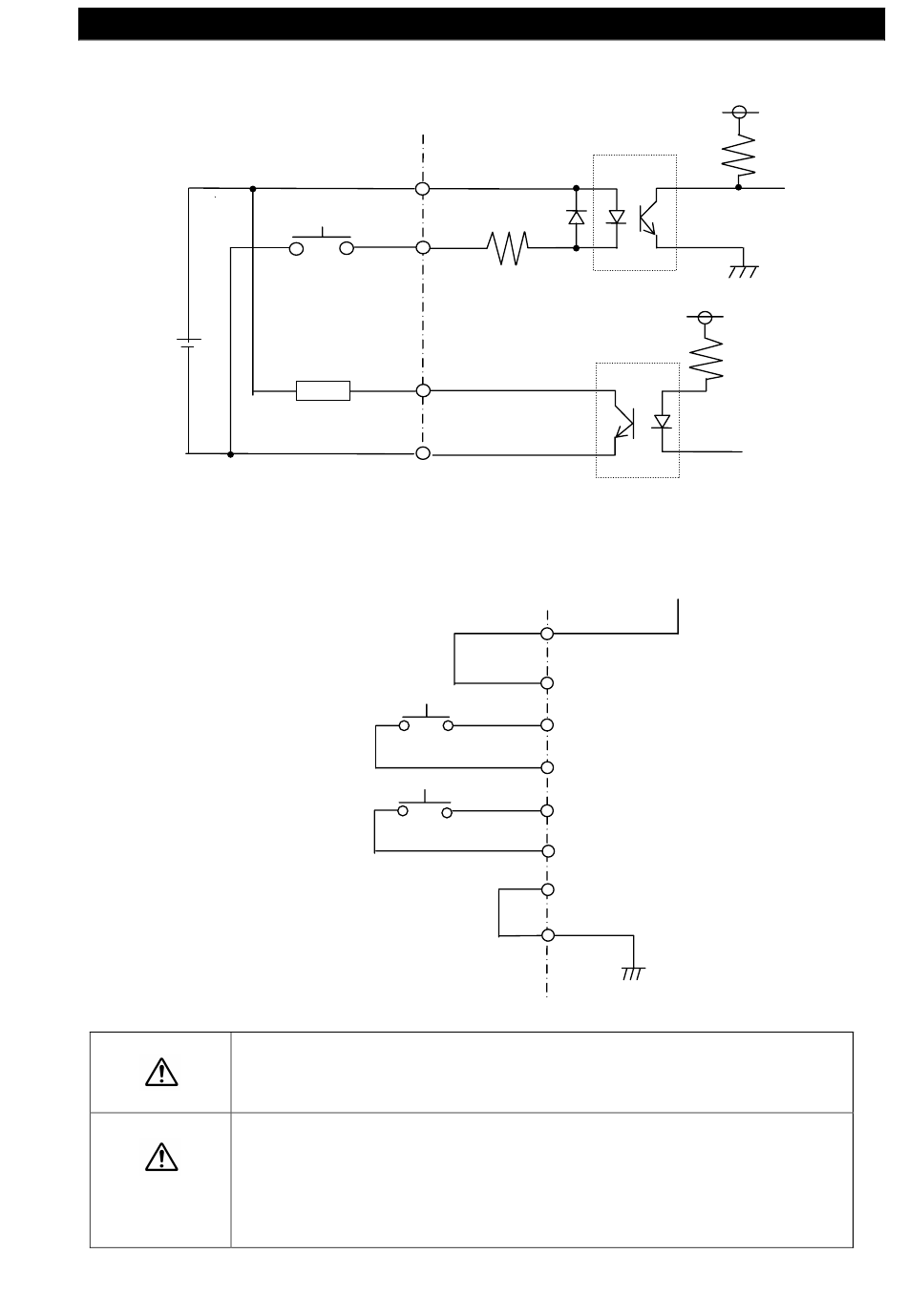

SEQUENCER CONNECTION EXAMPLE
○
Between + COM and – COM, please supply the external power source (DC 24V)
Please be sure to connect both leads simultaneously.
SWITCH CONNECTION EXAMPLE
○
It is possible to easily connect an external
switch using the internal power source
Do not combine the internal and external power source wires.
Doing so may result in fire.
WARNING
・Use DC 12~24 V ±10% for the external power source.
・The input/ output circuit power source common is consistent.
・The input circuit actuation current is 8mA at each point.
CAUTION
・The maximum load per unit on the external circuit is DC 30V 10 mA
・The maximum distance for the signal transfer should be less than 10 m.
POWER ON PROCEDURE Connection to external equipment
【REMOTE TERMINAL】
+COM
LOAD
SEQUENCER
＜Input Circuit＞
STOP
SWITCH
START
SWITCH
MANUAL SWITCH
(Depending on the cable used .)
INPUT
OUTPUT
－COM
FL-601 MAIN BODY
【REMOTE TERMINAL】
DC+24V
18
19
+COM
1
STOP
27
－ COM
2
START
28
－COM
32
－COM
GND
50
FL-601 MAIN BODY
39
