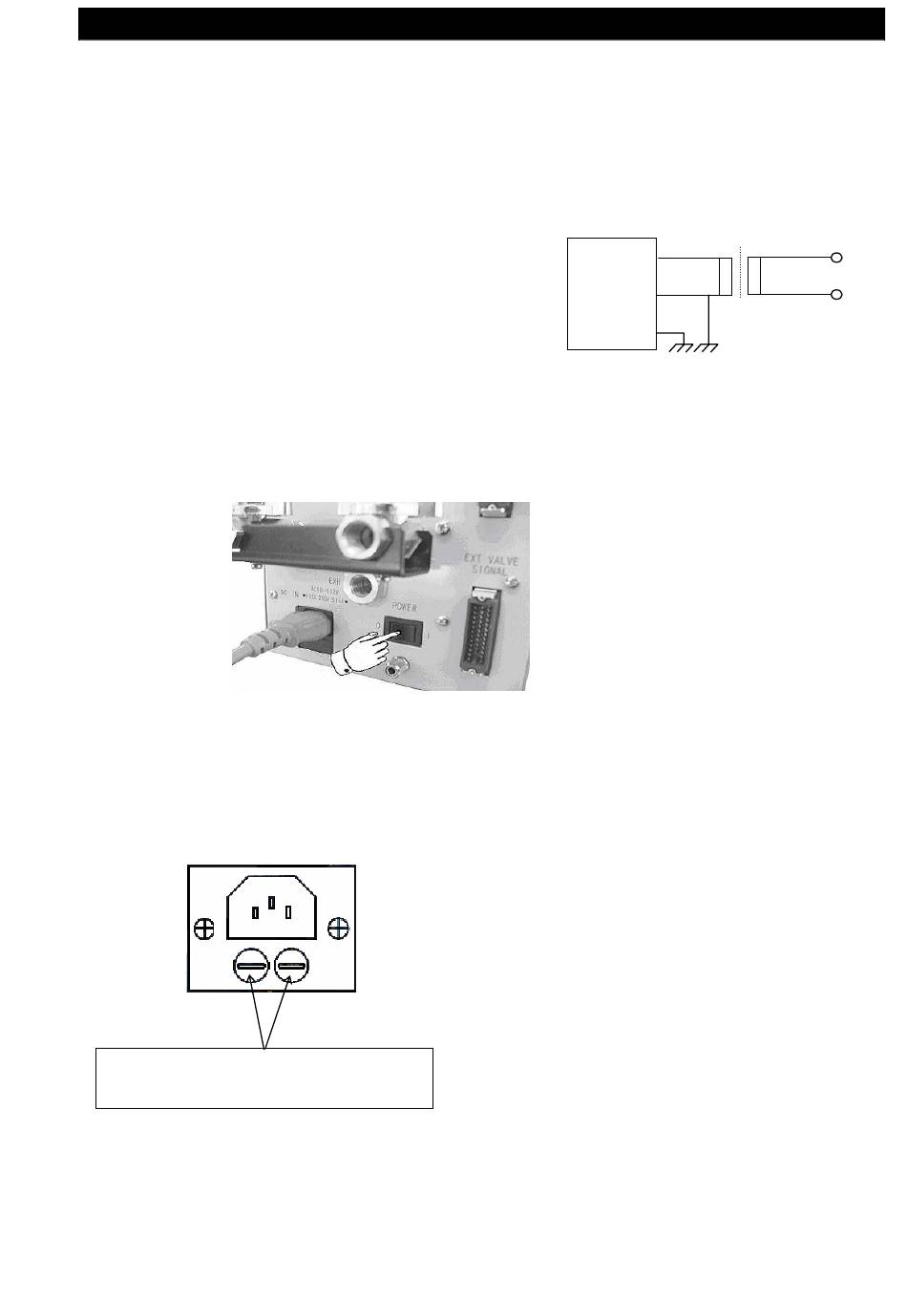

● Be cautious of potential noise interference and provide preventive countermeasures.
If the equipment is located near a welder or other machinery , there may be possible noise interference.
Provide a noise filter or other preventive devices. While wiring, separate the input signal, the output signal, and the
AC 100V wire bundles within the fixture.
● Use proper, exclusive grounding installation for the P.E(Protective earth)
● Use an insulated transducer if the AC 100V source is
converted from AC 200V .
○ OFF POWER SWITCH
・Be sure that the equipment is properly installed prior to turning on the power switch.
・The power switch is located on the rear panel's lower right side. Switch it to the Right sight to turn it ON and to the
Left side to turn it OFF. Be sure to switch RDY off.
○ Regarding fuse replacement
Use a fuse with a rating and type of: φ5 ×20mm 3.15A
Open these two fuseholders using a slotted (flat)
screwdriver and replace the fuses.
POWER ON PROCEDURE Power Connection
AC100V Ｌ
AC100V
AC100V Ｎ
F.G
AC200V
