ABOUT THE WORK / MASTER
○
・ Try to eliminate temperature differences between the work, the master parts and the surrounding
environment.
If some work parts are left standing for a period of
time, be sure to leave the parts close to the leak tester
in order to ensure that it is in a similar environment.
If pre-processing causes temperature changes (hot
water cleansing, welding, etc.), wait until the
temperature of the test parts acclimate to room
temperature. It is not possible to obtain accurate
test results if the temperature is not consistent.
When handling thin material or high temperature transmission parts such as radiator parts,
avoid using your bare hands.
・Minimize the internal volume of the work parts.
In order to increase testing sensitivity, minimize
the internal volume of the work (including piping)
by reducing the length of the pipe or by using a
core.
･ Master parts, (mastering standard) are not
necessary when using a Masterless Leak Tester.

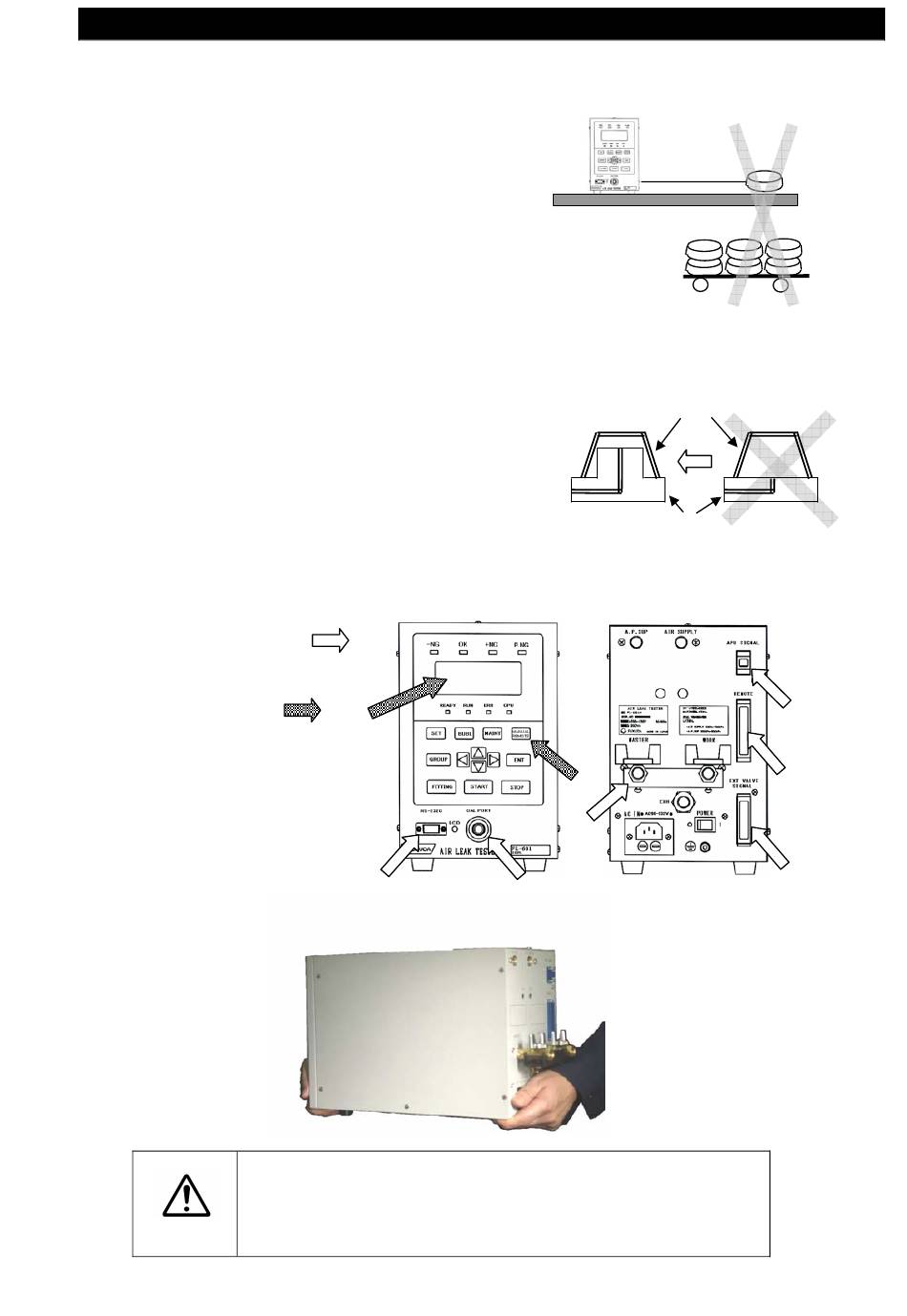

TRANSPORTATION INSTRUCTIONS
○
Do not handle the tester using
the points indicated by the
Handling these parts may cause
damages, malfunction or injury.
Points indicated by the
are fragile.
Use extra caution to avoid damage.
CAUTION
POWER ON PROCEDURE INSTALLATION INSTRUCTIONS
【 FRONT 】
Be sure to carry the equipment securely using both hands.
20℃
FL-601
10℃
Work (Test) Parts
Jig
【 REAR 】
