Step4: Final Assembly

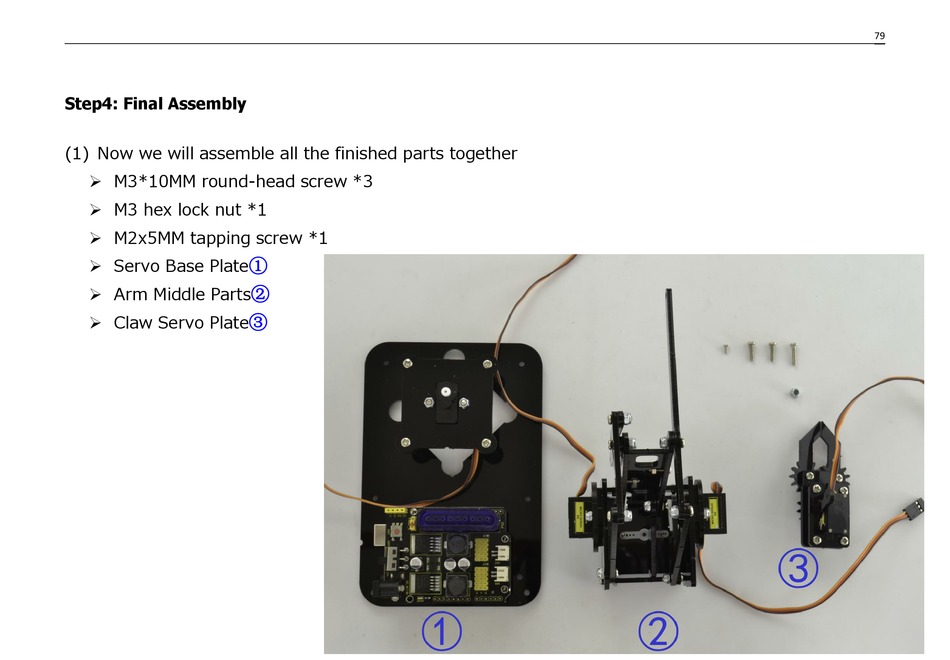

(1) Now we will assemble all the finished parts together
 M3*10MM round-head screw *3
 M3 hex lock nut *1
 M2x5MM tapping screw *1
 Servo Base Plate
 Arm Middle Parts
 Claw Servo Plate
①
②
③
79
