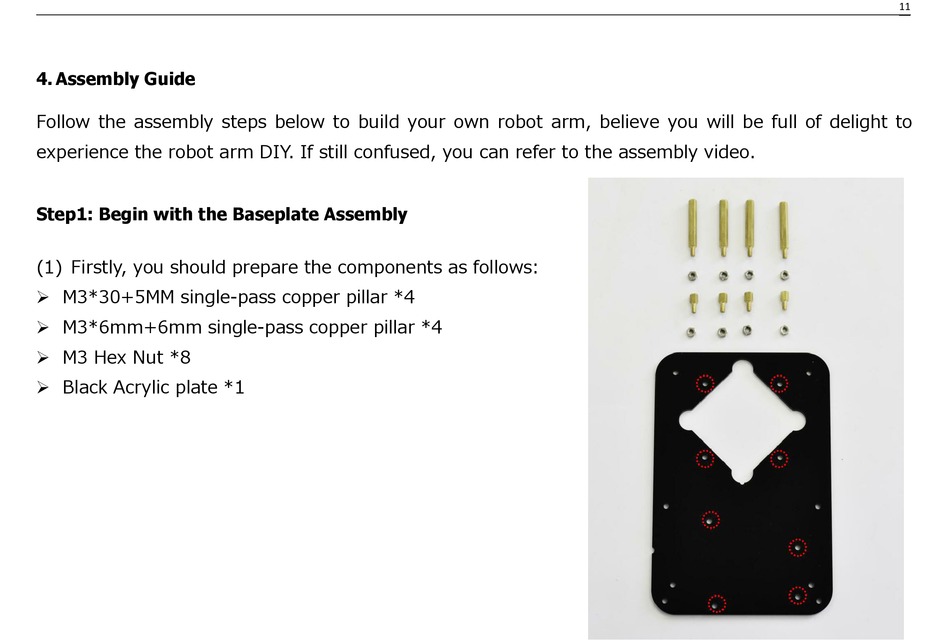

4. Assembly Guide

Follow the assembly steps below to build your own robot arm, believe you will be full of delight to
experience the robot arm DIY. If still confused, you can refer to the assembly video.

Step1: Begin with the Baseplate Assembly

(1) Firstly, you should prepare the components as follows:
 M3*30+5MM single-pass copper pillar *4
 M3*6mm+6mm single-pass copper pillar *4
 M3 Hex Nut *8
 Black Acrylic plate *1
