3

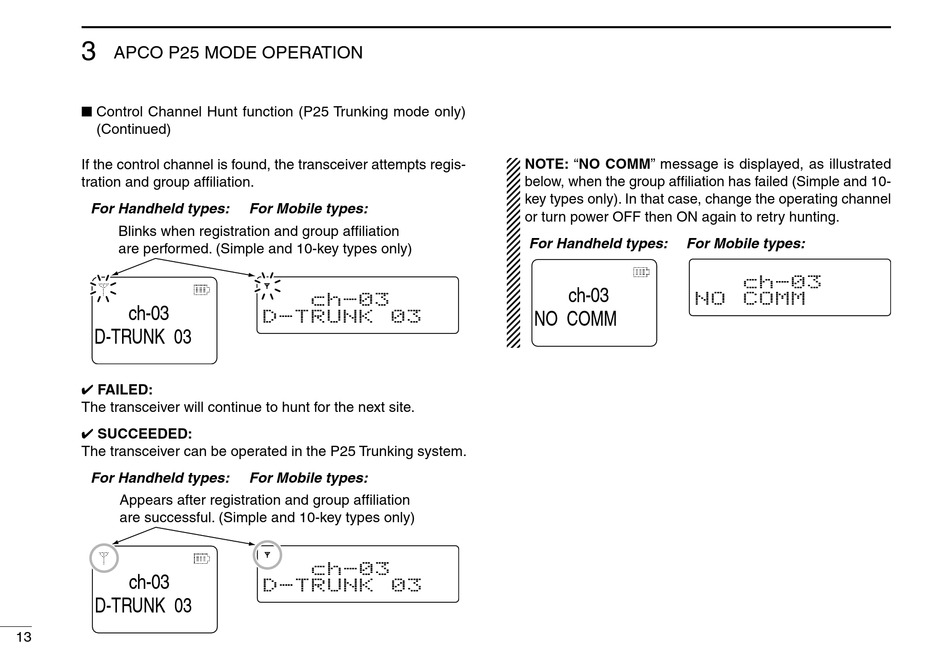

APCO P25 MODE OPERATION
n Control Channel Hunt functon (P25 Trunkng mode only)
(Contnued)
If the control channel s found, the transcever attempts regs-
traton and group affilaton.
For Handheld types:
Blinks when registration and group affiliation
are performed. (Simple and 10-key types only)
ch-03
D-TRUNK 03
✔ FAILED:
The transcever wll contnue to hunt for the next ste.
✔ SUCCEEDED:
The transcever can be operated n the P25 Trunkng system.
For Handheld types:
Appears after registration and group affiliation
are successful. (Simple and 10-key types only)
ch-03
D-TRUNK 03
13
For Mobile types:
c h - 0 3
D - T R U N K 0 3
For Mobile types:
c h - 0 3
D - T R U N K 0 3
NOTE: "NO COMM" message s dsplayed, as llustrated
below, when the group affilaton has faled (Smple and 10-
key types only). In that case, change the operatng channel
or turn power OFF then ON agan to retry huntng.
For Handheld types: For Mobile types:
ch-03
N O
NO COMM
c h - 0 3
C O M M
