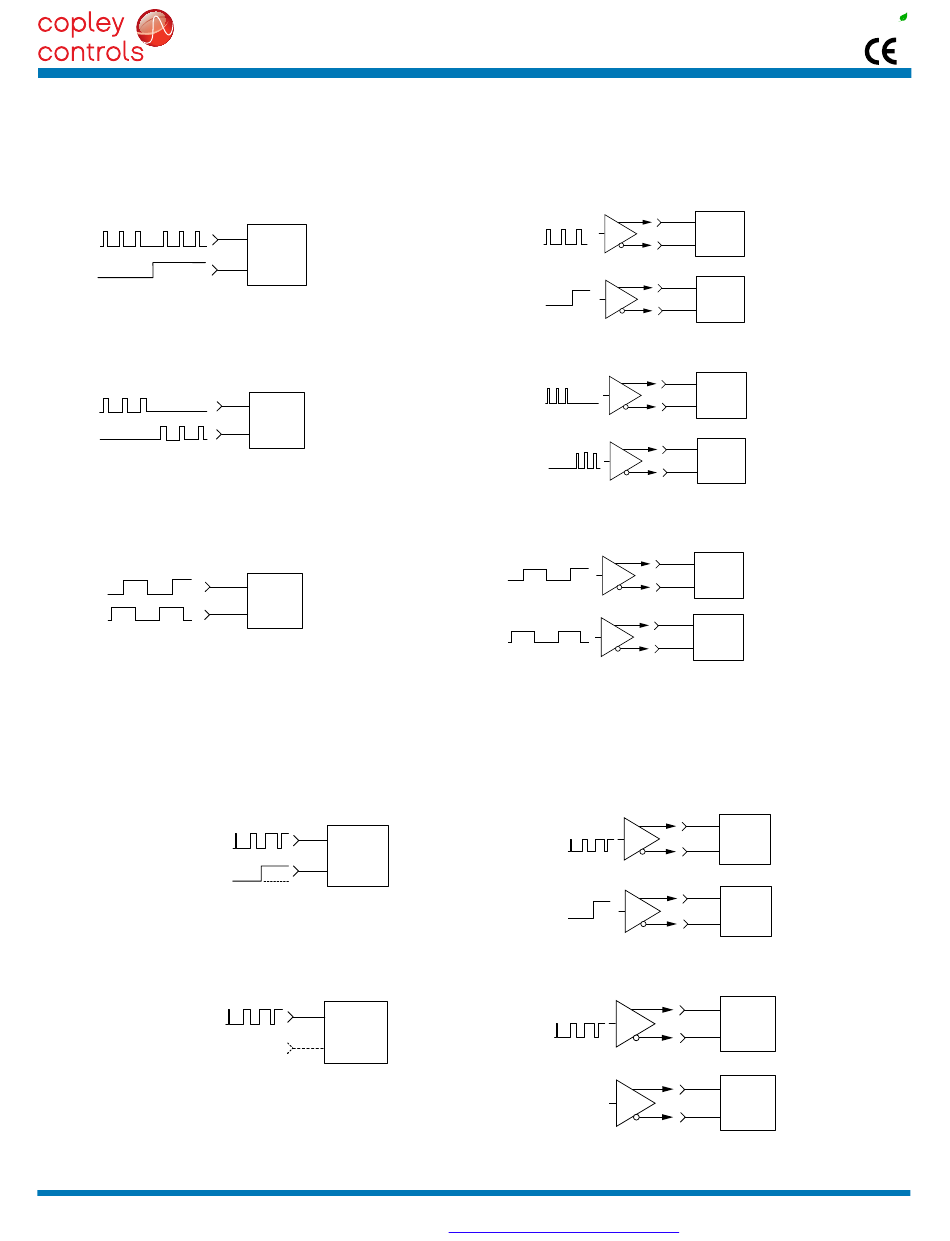

CoMMAnD inPUTS
DIGITAL POSITION
Digital position commands can be in either single-ended or differential format. Single-ended signals should be sourced from devices with active pull-up
and pull-down to take advantage of the high-speed inputs. Differential inputs have 121 Ω line-terminators.
SINGLE-ENDED PULSE & DIRECTION
SINGLE-ENDED CU/CD
CU (Count-Up)
CD (Count-Down)
QUAD A/B ENCODER SINGLE-ENDED
Encoder ph. A
IN4(14)
IN5(15)
Encoder ph. B
DIGITAL TORQUE, VELOCITy
Digital torque or velocity commands can be in either single-ended or differential format. Single-ended signals must be sourced from devices with active
pull-up and pull-down to take advantage of the high-speed inputs.
SINGLE-ENDED PWM & DIRECTION
Duty = 0~100%
SINGLE-ENDED 50% PWM
Duty = 50% ±50%
<no connection>
