ETHERCAT CoMMUniCATionS

EtherCAT is the open, real-time Ethernet network developed by Beckhoff based on the widely used 100BASE-TX cabling system. EtherCAT enables high-
speed control of multiple axes while maintaining tight synchronization of clocks in the nodes. Data protocol is CAN application layer over EtherCAT (CoE)
based on DSP-402 for motion control devices. More information on EtherCAT can be found on this web-site:

ETHERCAT ConnECTionS

Dual RJ-45 sockets accept standard Ethernet cables. The IN port connects to a master, or to the OUT port of a device that is 'upstream', between the
Xenus and the master. The OUT port connects to 'downstream' nodes. If Xenus is the last node on a network, only the IN port is used. No terminator is
required on the OUT port.

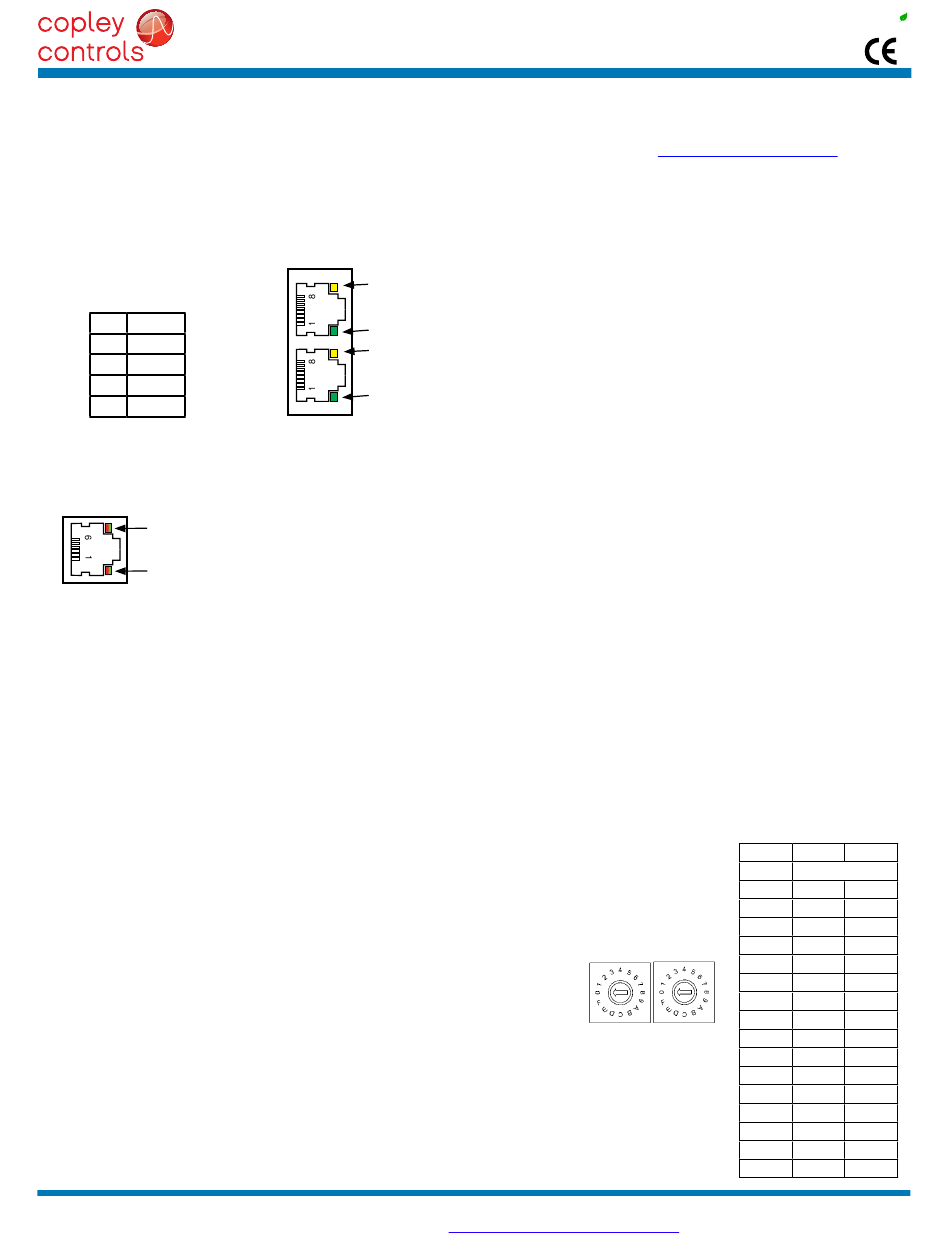

J7: EtherCAT PoRTS
RJ-45 receptacles,
8 position, 4 contact
Pin SIGNAL
6 RX-
3 RX+
2 TX-
1 TX+
J6: RS-232 PORT
RJ-12 receptacle,
6 position, 4 contact
STAT
AMP
STAT LED
A bi-color LED (nET) indicates the status of the EtherCAT state machine and occurrence of errors.
Green and red colors alternate: Green = RUN, Red = ERROR
RUn (green)
Off = INITIALIZATION
Blinking = PRE-OPERATIONAL
Single Flash = SAFE-oPERATionAL
on = oPERATionAL
notes:
1) A change of state commanded by the master is not possible or is illegal
2) This indicates that the slave has initiated a change of state by itself in response to an error
3) The EtherCAT watchdog timer has timed-out
EtherCAT DEVICE ID
In an EtherCAT network, slaves are automatically assigned fixed addresses based on
their position on the bus. But when the device must have a positive identification that
is independent of cabling, a Device iD is needed. in the XEL, this is provided by two
16-position rotary switches with hexadecimal encoding. These can set the Device iD of
the drive from 0x01~0xFF (1~255 decimal). The chart shows the decimal values of the
hex settings of each switch.
Example 1: Find the switch settings for decimal Device iD 107:
1) Find the highest number under S1 that is less than 107 and set S1 to the hex value in
the same row:
96 < 107 and 112 > 107, so S1 = 96 = Hex 6
2) Subtract 96 from the desired Device iD to get the decimal value of switch S2 and set
S2 to the Hex value in the same row:
S2 = (107 - 96) = 11 = Hex B
