ICS-415V User's Manual

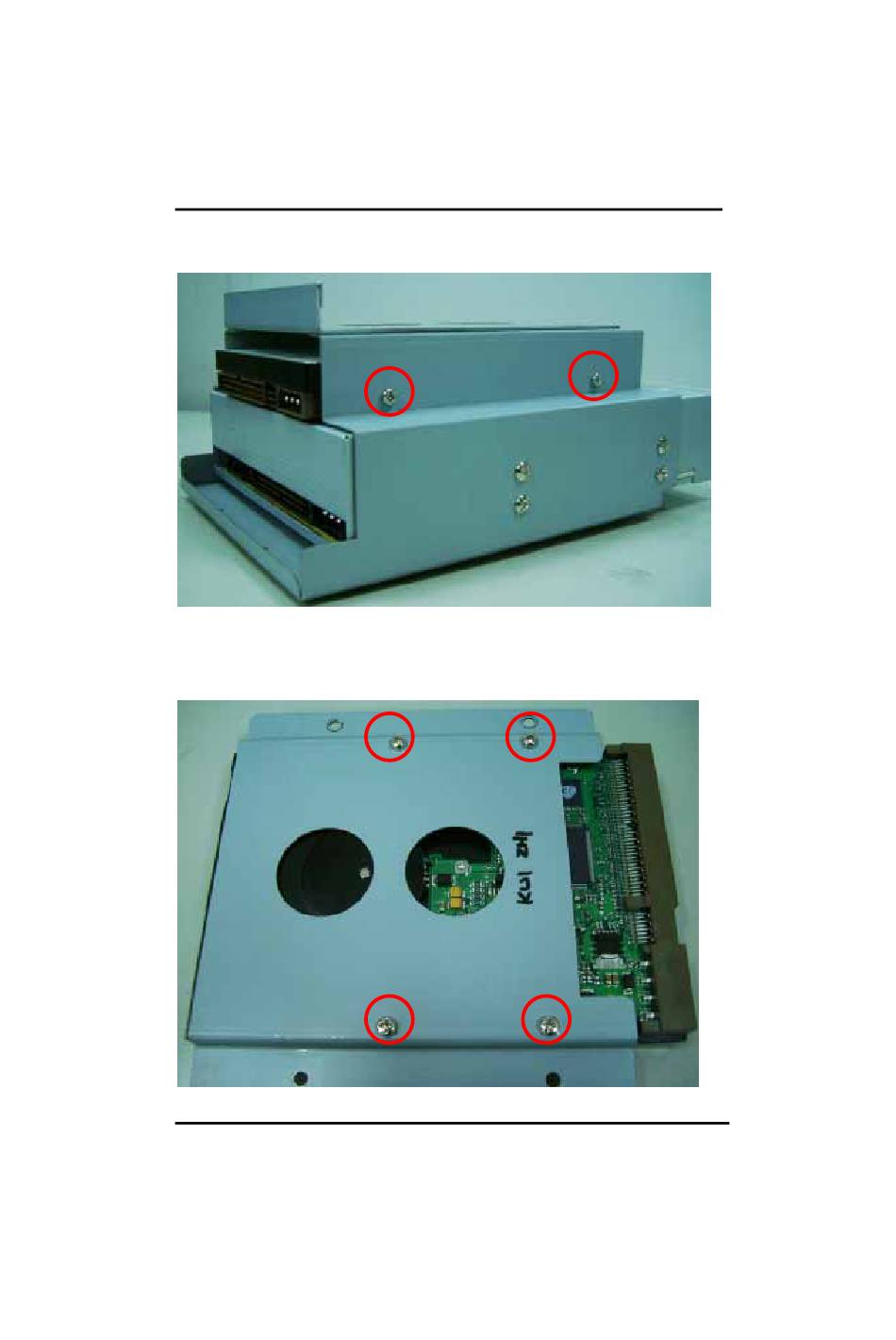

5. Put the HDD in the HDD drive bracket and fix it by four screws.
6. Take off the HDD bracket from the other drive bay and fix the HDD
by four screws.
15
Hardware Installation
