ICS-415V User's Manual
2.3.1 I/O ports Installation
The ICS-415V provides several front-accessible I/O ports. It includes
USB, keyboard & mouse. There are 4 cables needed to be plugged
into CPU card.

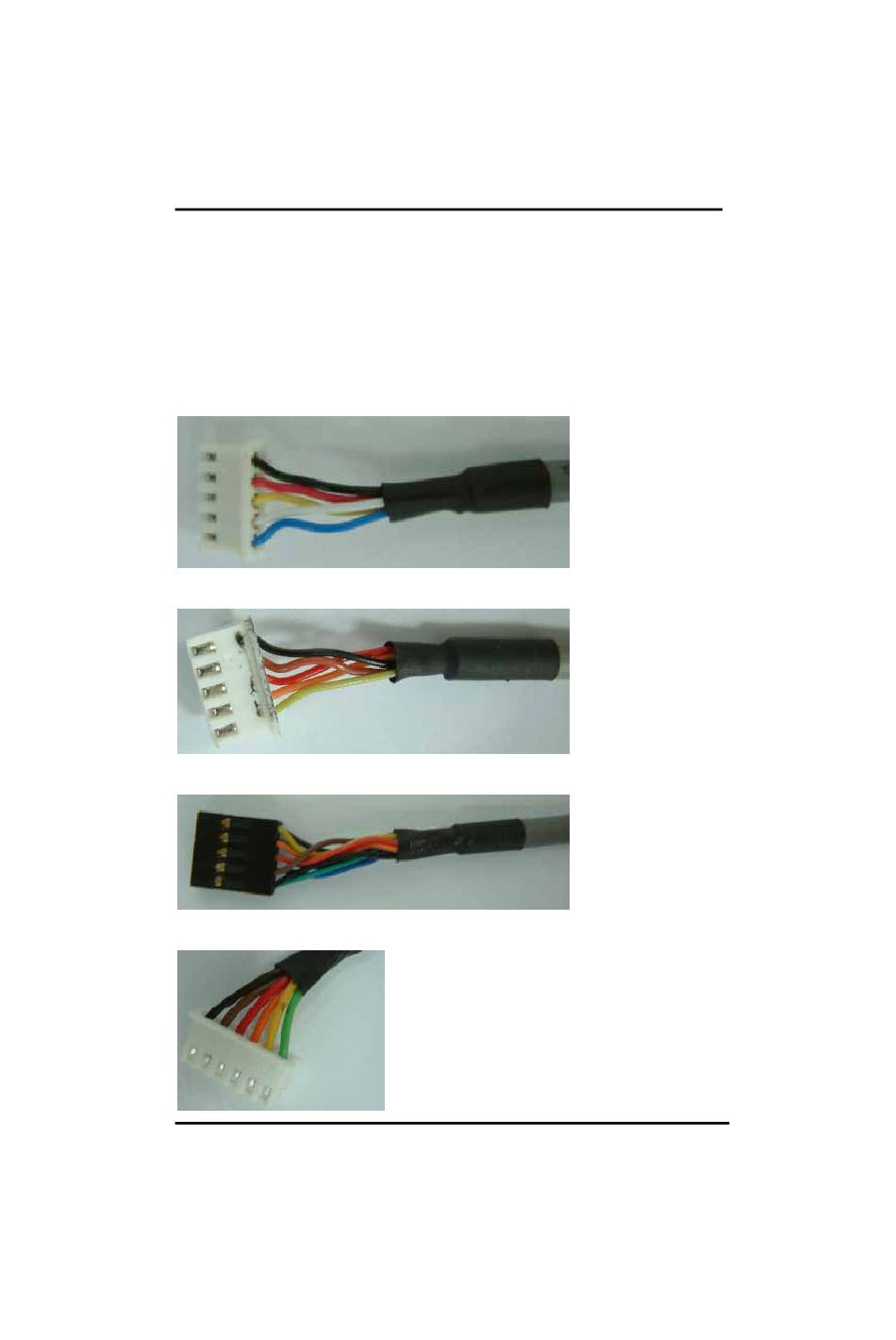

Please refer to below photos in order to recognize these cables.
1. Mouse cable
2. Keyboard cable
3. USB cable
4. ACPI cable
20
Hardware Installation
