2.3 CPU card and I/O ports Installation
The ICS-415V supports half-size CPU and I/O cards. It also supports
two Backplanes to meet users' applications. When you select CPU
cards, you might need to choose appropriate backplane for it.
1. ATX6022/8
4 PCI & 3 ISA slots. Suitable for PCI-bus & ISA-bus CPU
cards.
2. ATX6022/8GP7
7 PCI slots. Suitable for PCI-bus CPU cards only.
Besides, the ICS-415V also offers convenient I/O ports for users
without occupying any PCI/ISA slots. Please refer to the following
steps.
2.3.1 CPU card Installation

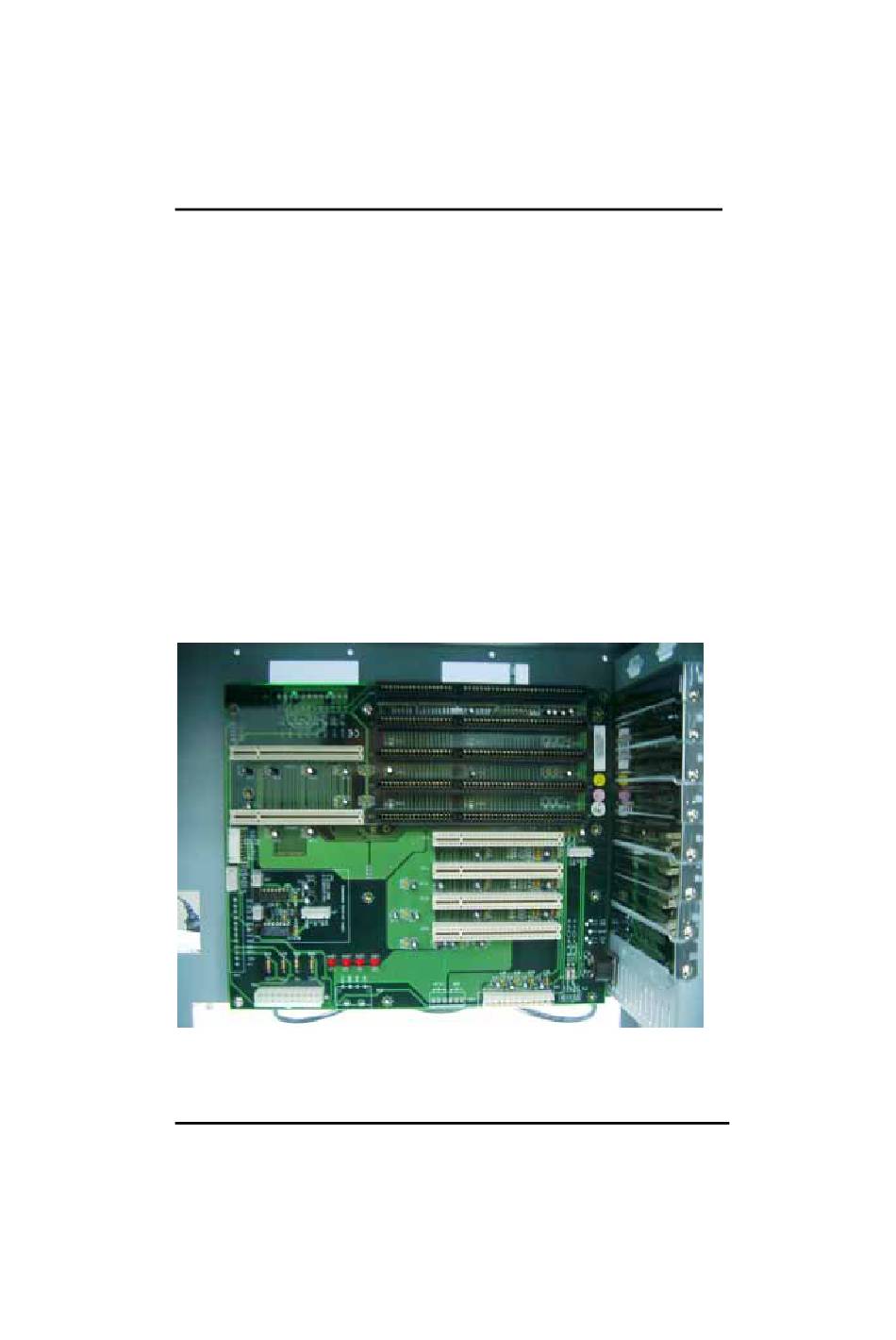

1. Select and fix the backplane in ICS-415V.
18
Hardware Installation
