1

Introduction

1.1

Overview

The Single-Axis Automatic Tilt Mechanism is designed for use with Nordson ASYMTEK's S-9XX or
S2-9XX Series Dispensing Systems configured with DJ or DV Series Valves. This feature tilts the valve to
allow for easier dispensing on the side of components.
This manual describes the software setup, hardware setup, and operation of the tilt mechanism. Refer to
the applicable valve manual for detailed instructions on valve operation.
1.2

System Requirements

Dispensing System:
Dispensing Valve:
Software:
Fluidmove Version:
WARNING!
DO NOT operate the dispensing system unless you have been trained to do so.
Operating the dispensing system without proper training may result in personal
injury or dispensing system damage.
1.3

System Components

The Single-Axis Automatic Tilt Mechanism consists of the following components:
• Tilt Bracket
• Tilt Bulkhead
• Mini Service Station Mounted on Front Conveyor Rail

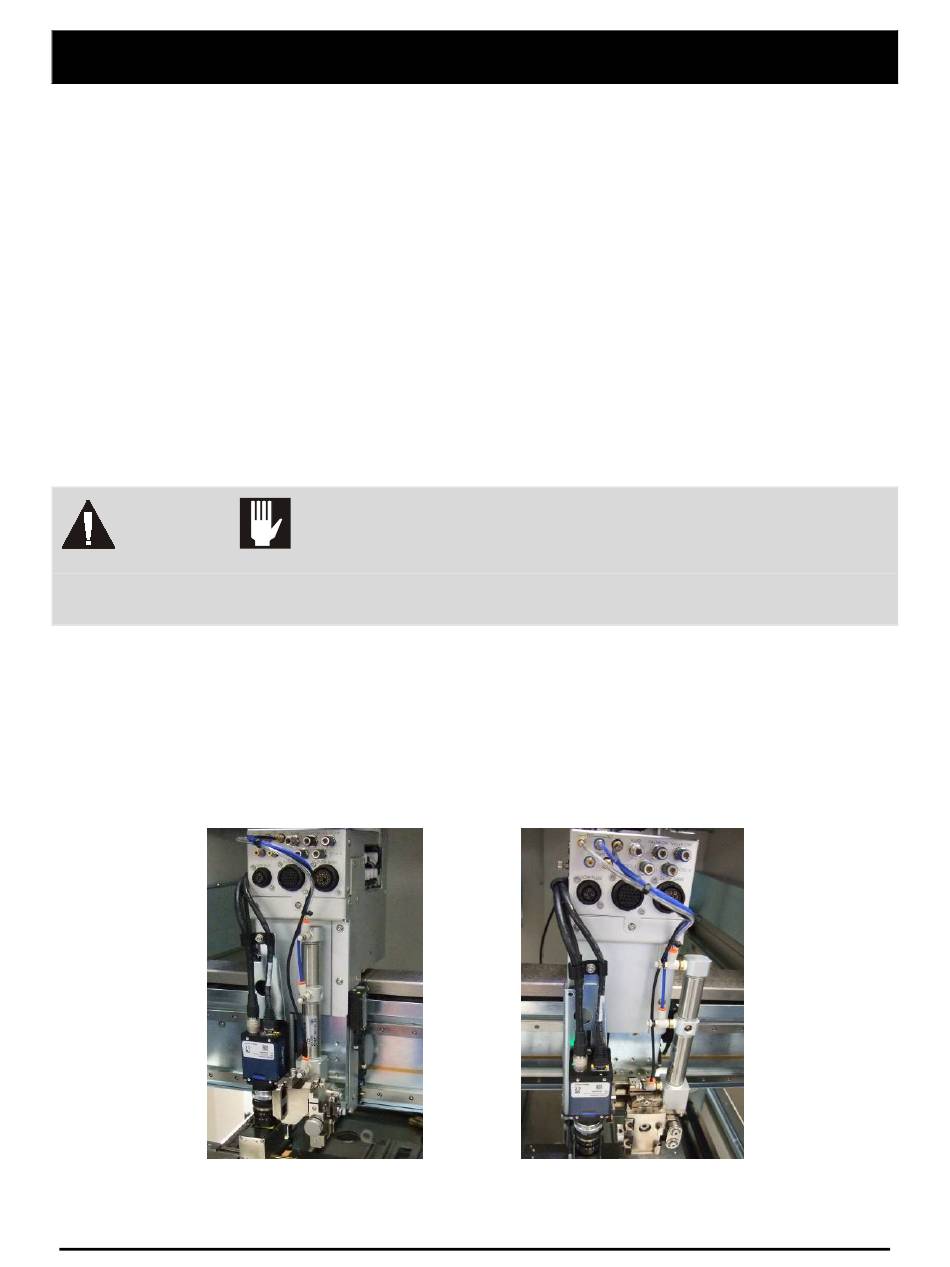

Figure 1-1 Two-Position Tilt Bracket
Introduction
Spectrum S-9XX or S2-9XX Series Dispensing Systems
Any DispenseJet (DJ-series) or DV-series valves. For other valve
types, contact Nordson ASYMTEK.
Fluidmove
Version 6.0 or higher
CAUTION!
(Front/Rear)
Figure 1-2 Two-Position Tilt Bracket
(Right/Left)
1
