4.4

Valve Offsets

Because the dispensing valves can be set to different tilt directions and dispense gaps, a valve offset
routine must be performed. Valve offsets must be run in full to properly set up valves.
4.4.1

Machine Offset Parameters

To configure machine offset parameters:
1. In the Main Window, click on Configuration > Machine Offsets > Machine Offsets
Parameters.
The Machine Offset Parameters window (Figure 4-3) opens.

2. Make sure Scripted Valve Offsets is selected.
3. In the Machine Offsets Parameters section, make sure "_MachineOffsets.pss" is the
selected script file.
If not, click on Select Script File and select it from the list.

Select camera assisted script and click on Setup Fiducials.
4.
The Machine Fiducial Setup Screen opens (Figure 4-4).

5. Click on the check box next to the device(s) to be located by fiducials during the setup
procedure.
The Setup button(s) for the selected device(s) becomes active.

14

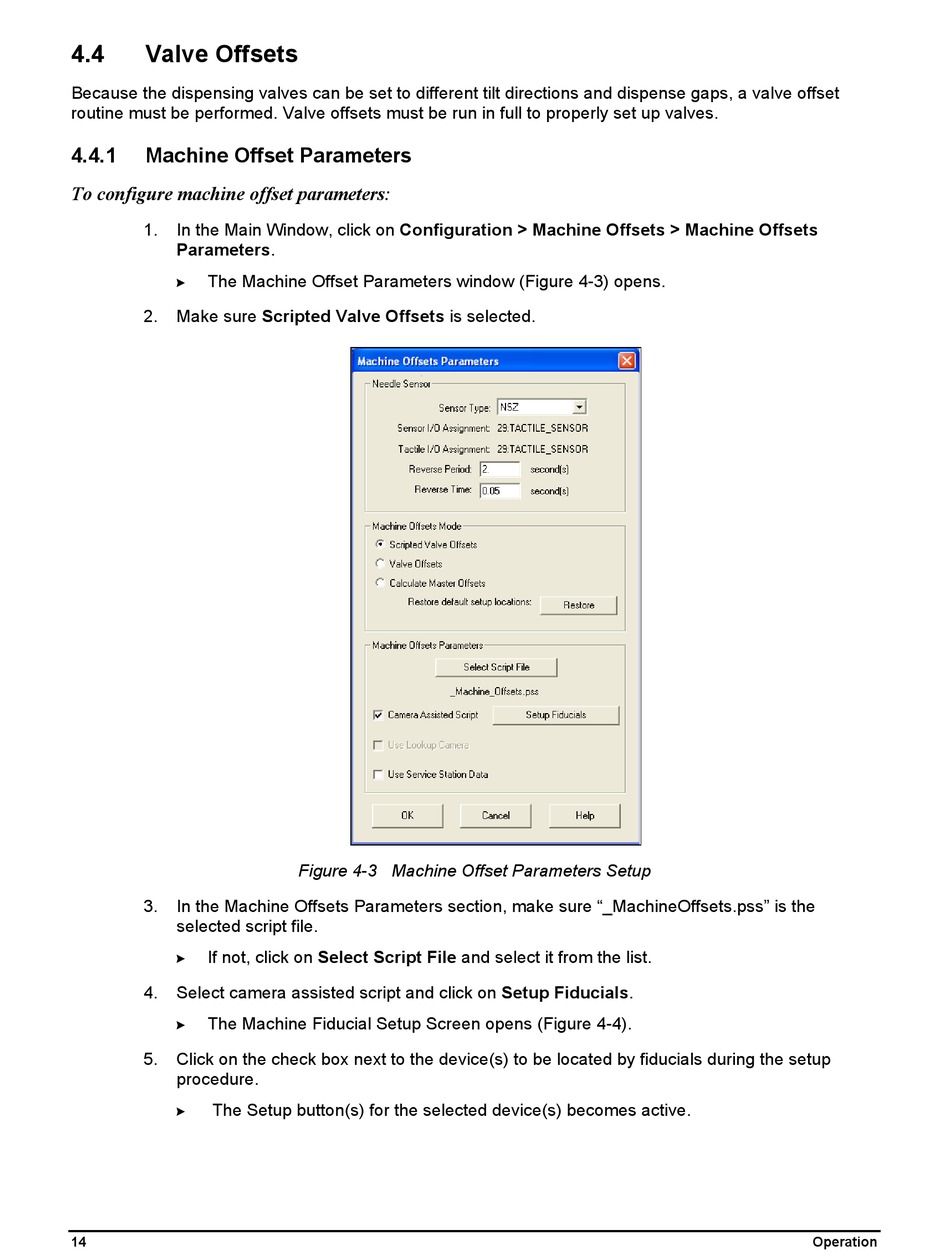

Figure 4-3 Machine Offset Parameters Setup

Operation
