4.4.2.3 Height Sensor XY Offset
To teach camera to height sensor XY offset (Figure 4-8):
1. Align the laser or mechanical height sensor over the mark in the putty.
2. Click on Teach.
3. Align camera crosshairs over mark over the mark in the putty.
4. Click on Teach.
5. Click on Done.

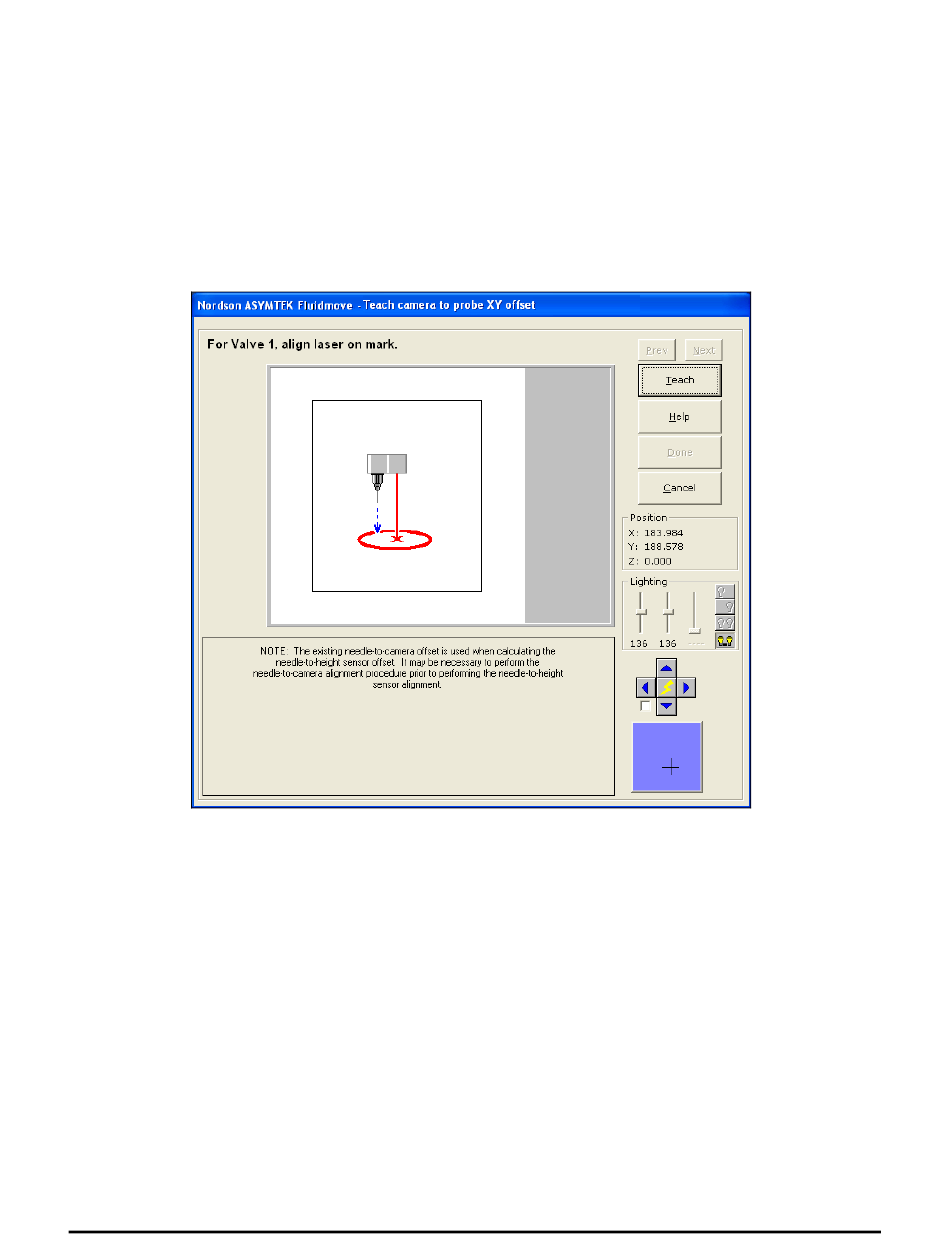

Figure 4-8 Camera to Height Sense Probe or Laser XY Offset

Operation 19
