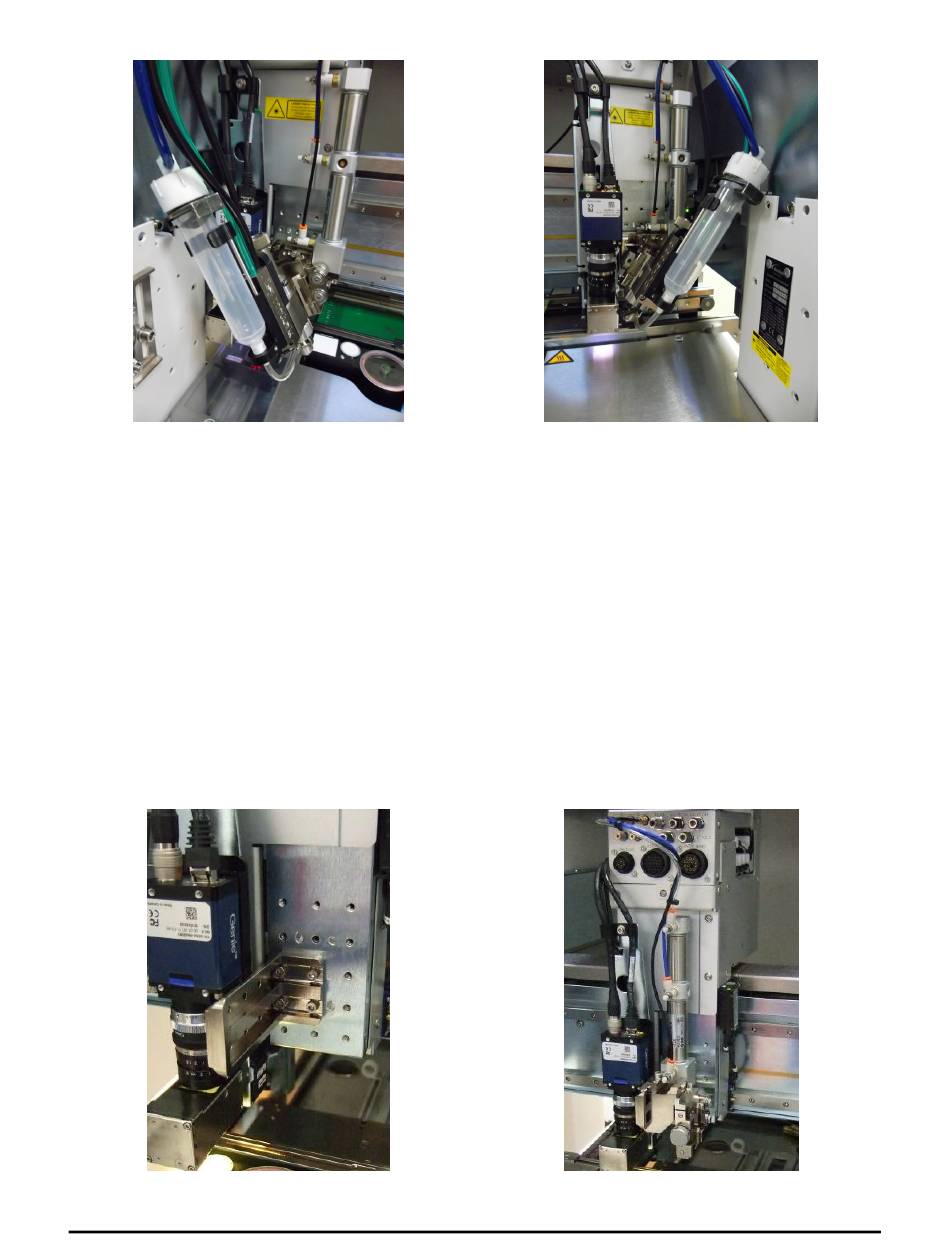

Figure 3-3 Home Position Adjustment (Right/Left)

5. Adjust the horizontal position of the tilt bracket using a 4 mm hex wrench to allow the
machine to home when the valve is tilted CCW as shown in Figure 3-3.
6. Adjust the X travel limit to avoid collision when the valve is tilted CW as shown in Figure 3-4.
3.2.2

Tilt Front and Back

To set up the front and back tilt bracket:
1. Install the mount with four (4) M4 socket head screws (P/N 49-4312) and a 3mm hex
wrench. See Figure 3-5.
2. If using a DV valve, install the mount in the right set of holes so that the DV does not collide
with the machine during rotation.
3. Install the tilt mechanism using a 4 mm hex wrench. See Figure 3-6.
4. Connect pneumatic lines as shown in Figure 3-6.

Figure 3-5 Tilt Bracket Mount (Front/Back)

8

Figure 3-4 Travel Limit Adjustment (Right/Left)

Figure 3-6 Tilt Bracket (Front/Back)
