4.4.2.1 Safe Z Height
To teach safe Z height (Figure 4-6):
1. When prompted to teach Safe Z Height, move the dispense tip to a height that is clear of
obstacles when moving in all XY directions.
2. Click on Teach.
3. Click on Done.
Operation

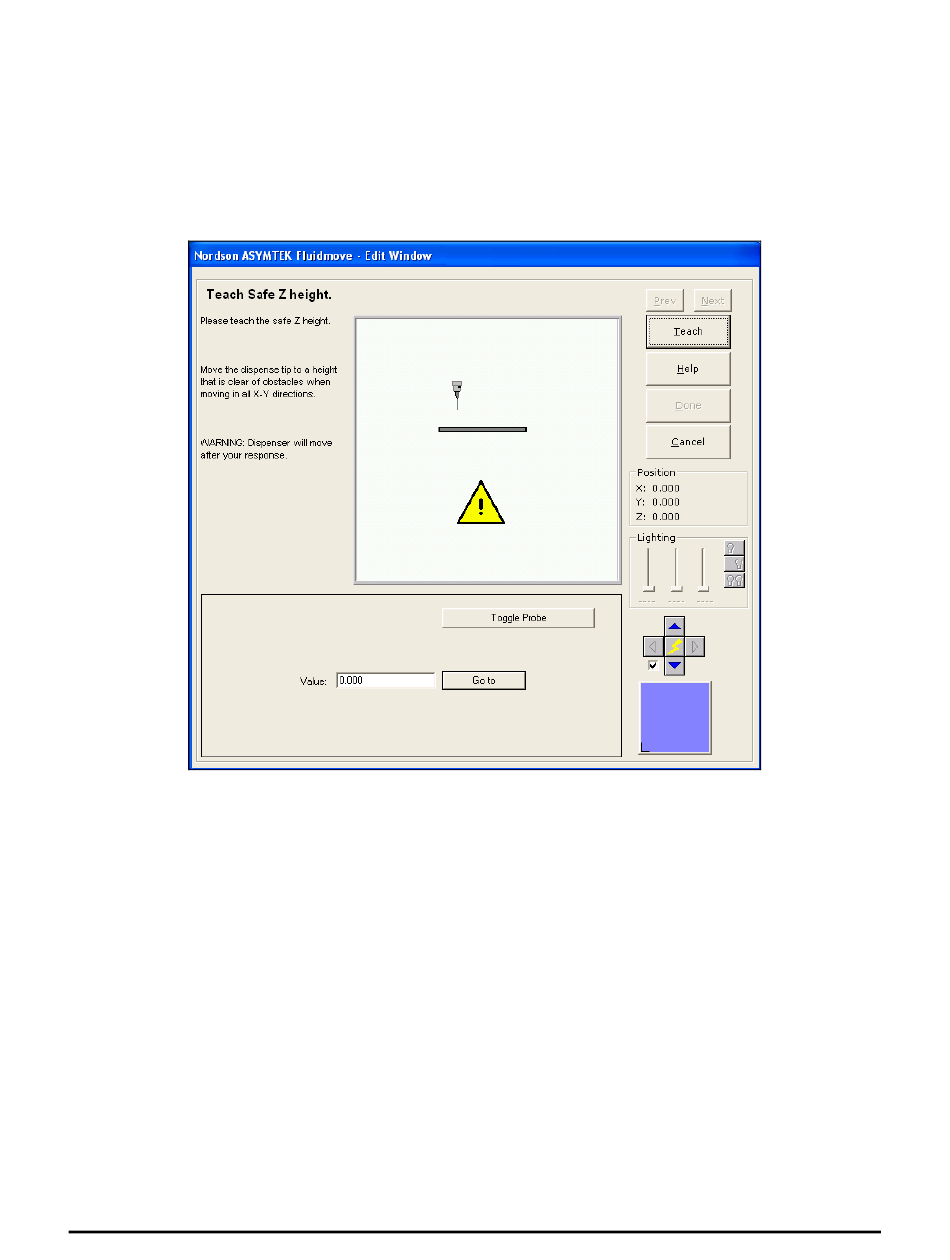

Figure 4-6 Valve Offsets: Safe Z Height

17
