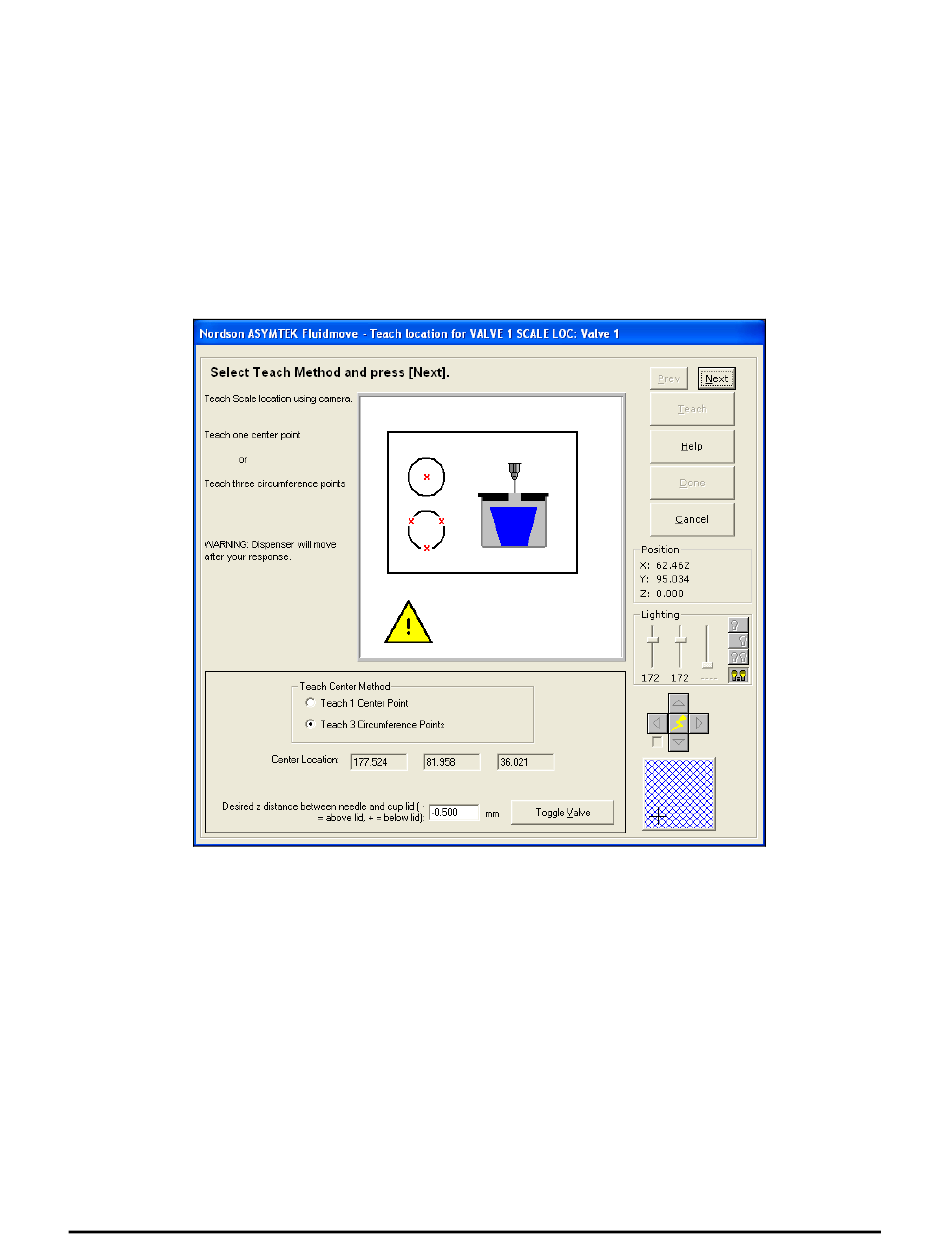

Figure 4-12 Valve 1 Scale Location - Nordson ASYMTEK Spectrum Series Owner's Manual

To teach the scale location (Figure 4-12):
1. Select the Teach Center Method.
2. Click on Next to continue.
3. Use the position controls to move the camera crosshairs to the center on the scale station.
4. Click on Teach.
5. To teach height sense location, use the position controls to move camera crosshairs to a
location near the scale hole.
6. Click on Teach.
7. Click on Done.
22

Figure 4-12 Valve 1 Scale Location

Operation
