4. Select the number of fiducials and click on OK.
If one or more fiducials are selected, you will be prompted to teach fiducial location.

Refer to the Fluidmove User Guide for instructions.
The Programming Window (Workpiece Pattern) opens. See the Fluidmove User Guide

for information on creating additional patterns.
5. Add a height sense command.
a. In the Programming Window, select Program > Process Commands > Find
Substrate Height.
b. Follow the prompts.
6. Select the tilt direction.
a. In the Programming Window, select Program > Process Commands > Tilt.
b. Select the tilt direction and click on OK.
Available tilt directions depend on software configuration. See

7. Add dispensing instructions. See the Fluidmove User Guide for detailed information.

NOTE
All dispensing instructions after a Set Tilt Instruction will be performed at that tilt angle
until the next tilt instruction.
4.6

Running a Program

When the program is run, the system will verify that offsets have been run for all dot and line types in the
program.
To run production:
Click the Run button.
1.
The Run Production button appears in the Production Window, along with the manual

run commands (Figure 4-17).

NOTE
Clicking the Run Production button opens the Run Window. It does not start the
production run. To start the production run, you must click on Go
Operation

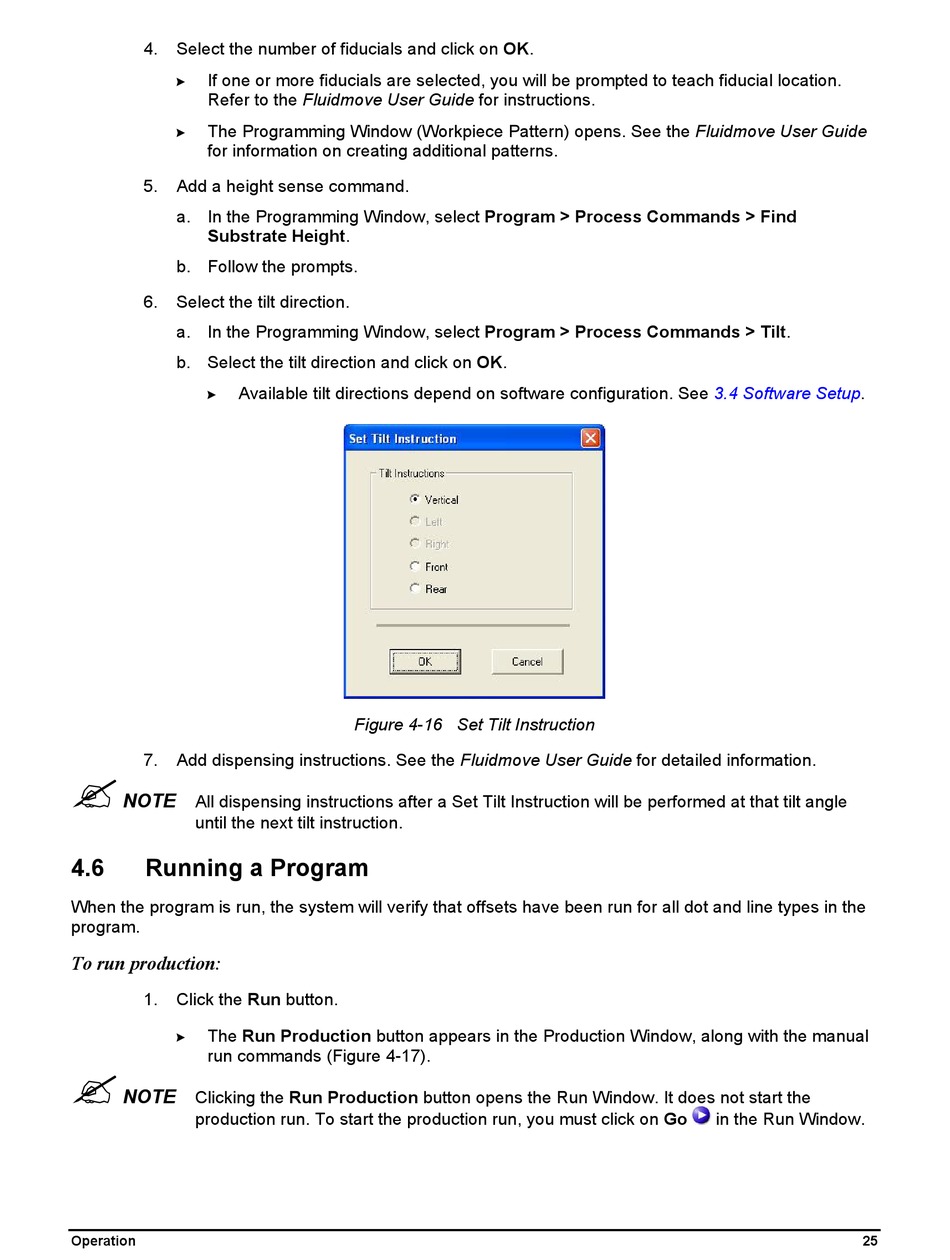

Figure 4-16 Set Tilt Instruction

3.4 Software Setup.
in the Run Window.
25
