4.4.2

Running the Valve Offsets Procedure


NOTE
All valve offsets should be performed on the mini service station mounted to the rear rail.
To run the valve offsets procedure:
1. Make sure the camera has been calibrated before performing this routine. Refer to
applicable dispensing system manual if necessary.
2. Clear the work area of any obstacles that might interfere with dispensing head movement.
3. In the Fluidmove Main Window, select Configuration > Machine Offsets > Scripted Valve
Offsets.
The Machine Setup window (Figure 4-5) opens.

4. If the desired script is not selected, click on Select File and select the desired script from
the list.
The current script file is displayed at the top of the window.


NOTE
5. Click on Run to End.
If a message warns you that the dispensing head will move to the Home position, click

on Yes.
The first of a series of Teach Windows opens.

6. Follow the on-screen prompts. Click on Help if you have questions.

NOTE
16

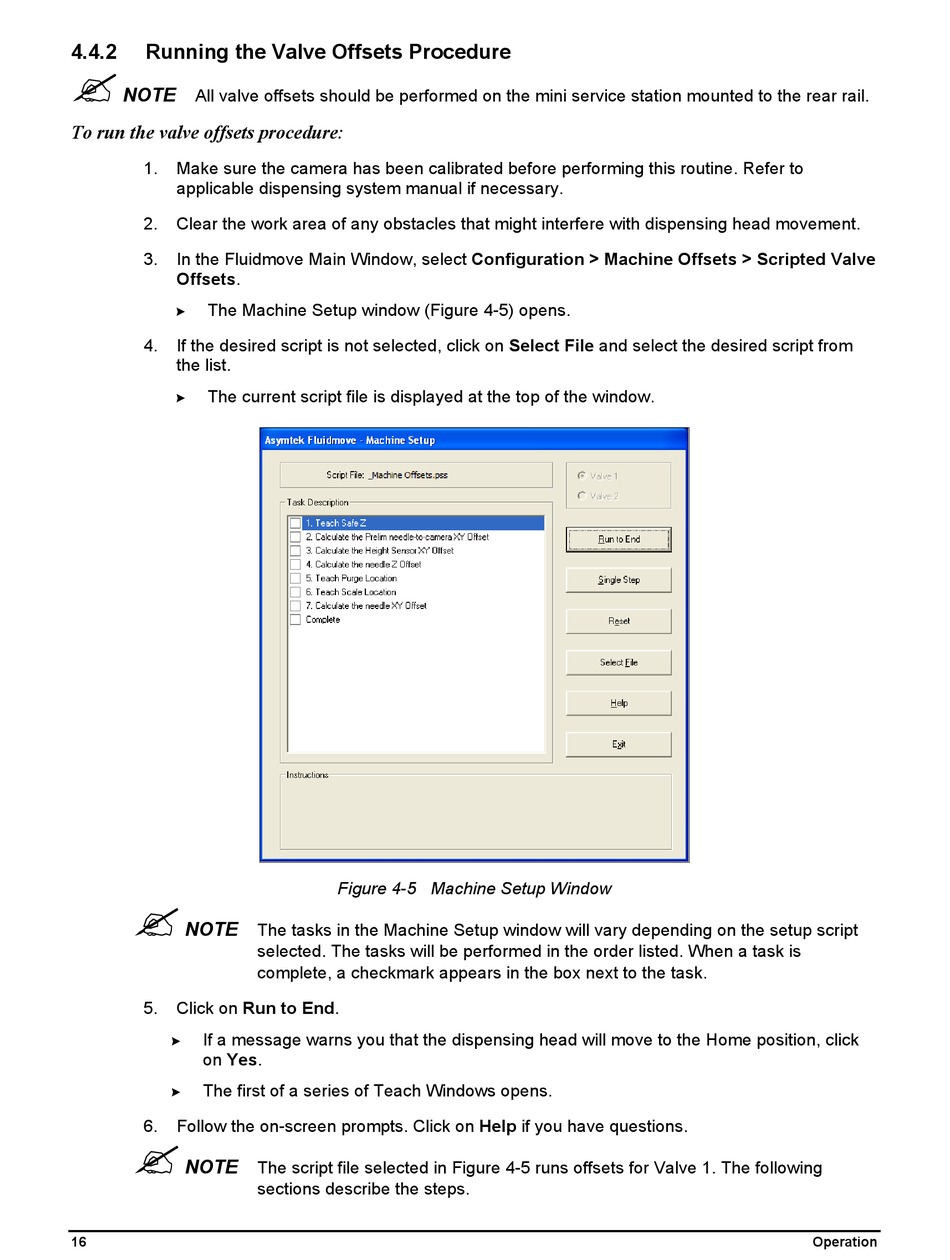

Figure 4-5 Machine Setup Window

The tasks in the Machine Setup window will vary depending on the setup script
selected. The tasks will be performed in the order listed. When a task is
complete, a checkmark appears in the box next to the task.
The script file selected in Figure 4-5 runs offsets for Valve 1. The following
sections describe the steps.
