Installation and Setup

3.1

Overview

In order to use the tilt feature, the tilt bracket must be setup properly.
This section covers the following topics:
•

Tilt Bracket Set Up

• Valve Connections
• Software Setup
3.2 Tilt Bracket Set Up
The tilt bracket can be set up in two ways and may be configured with or without sensors on the air
cylinder.
3.2.1

Tilt Right and Left

To set up the right and left tilt bracket:
1. If using a DV 7/8000 valve, install a mount spacer (P/N 7257077) on the Z-plate with four
(4) M4 socket head screws (P/N 49-4312) and a 3mm hex wrench (not shown). The spacer
would be installed in the same place as the mount shown in Figure 3-1.
2. Install the mount 7256201 with four (4) M4 socket head screws (P/N 49-4312) and a 3mm
hex wrench. See Figure 3-1.
3. Install the tilt mechanism using a 4 mm Hex wrench. See Figure 3-2.
4. Connect pneumatic lines as shown in Figure 3-2.

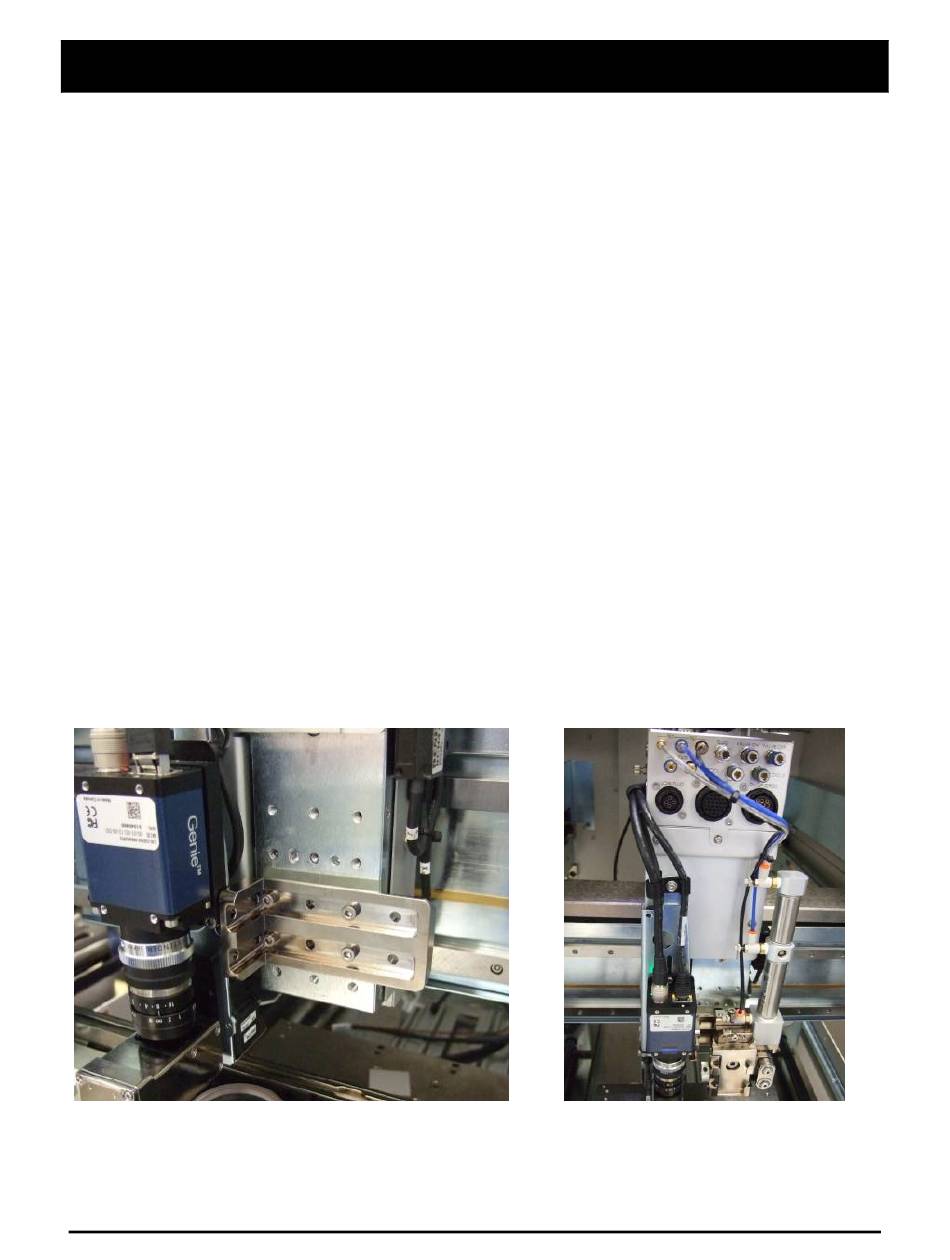

Figure 3-1 Tilt Bracket Mount (Right/Left)

Installation and Setup

Figure 3-2 Tilt Bracket (Right/Left)
