6

Functional System Check

6.1 Initialization Test
To perform an initialization test:
1. If applicable, exit the Fluidmove software.
2. Power the machine OFF and then ON again.
3. Restart the Fluidmove software.
By default the tilt mechanism should be in the vertical position.

6.2 I/O Test
To test tilt I/O's:
1. In the Fluidmove Main Window, select Tools.
2. In the Tools Window, click on I/O Test
The I/O Test Dialog opens.

3. Click on the Outputs 0-31 tab (Figure 6-1).
4. The Channel 2 section contains bits for Tilt CW and Tilt CCW. Below is a table showing
position vs. I/O.
5. By toggling the Tilt CW and Tilt CCW I/O bit from 0 to 1, a change in the mechanism should
be seen.
Functional System Check

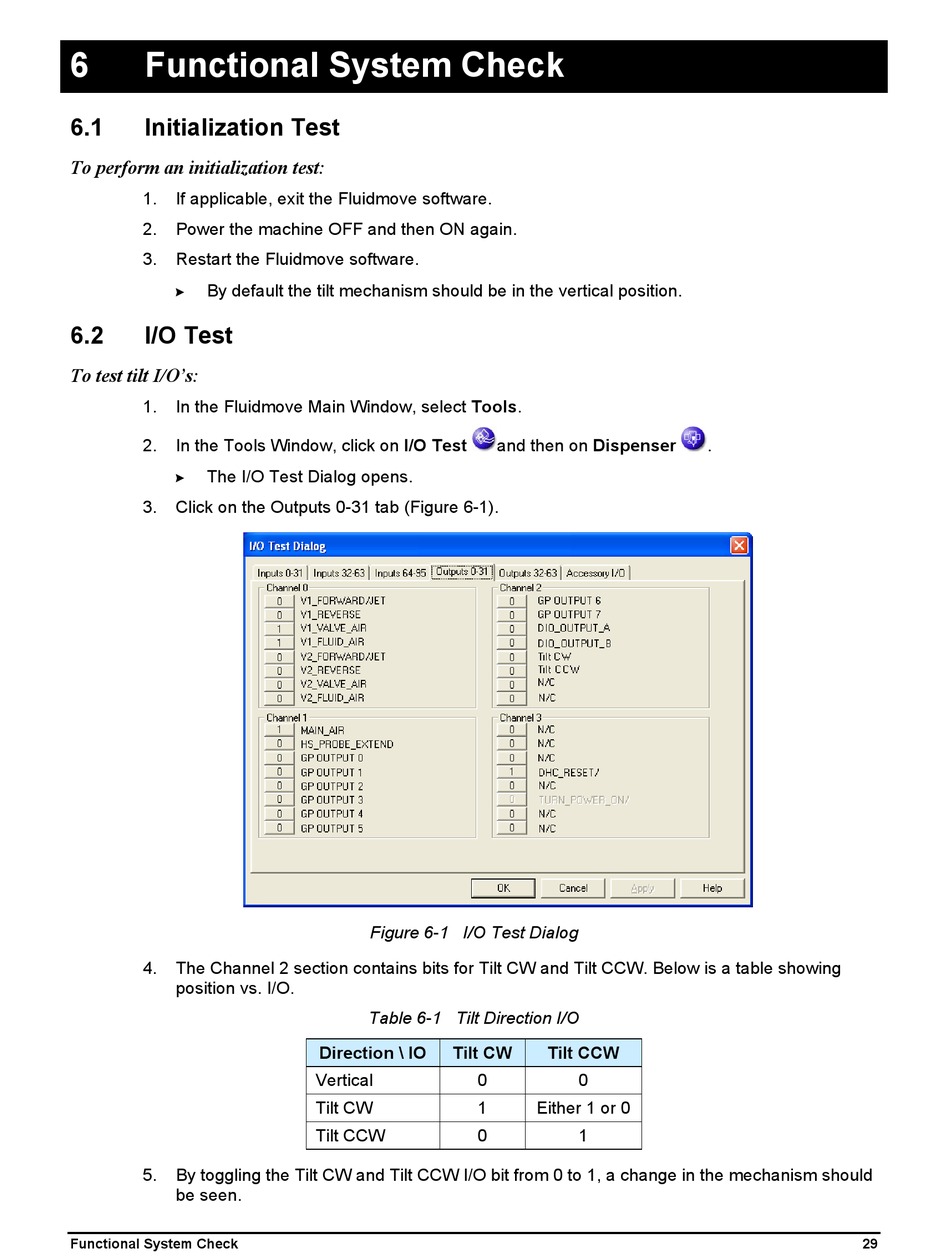

Figure 6-1 I/O Test Dialog

Table 6-1 Tilt Direction I/O

Direction \ IO Tilt CW
Vertical 0
Tilt CW 1
Tilt CCW 0
and then on Dispenser
Tilt CCW
0
Either 1 or 0
1
.
