Howdens TOWER UNIT 3 DRAWERS Assembly Instructions Manual page 3

1
x2

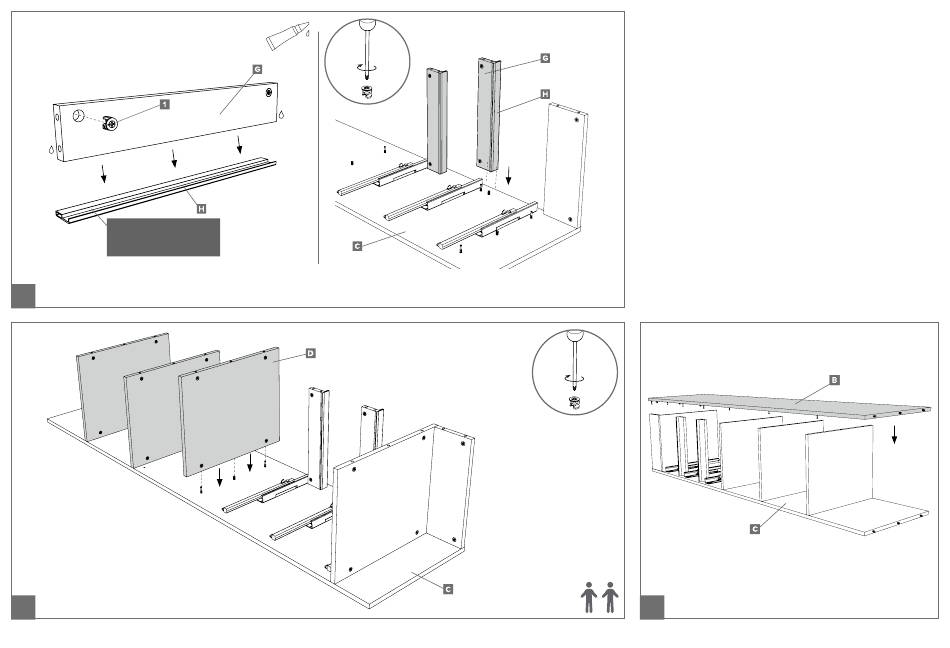

Slot infill (G) onto the
sticky side of the tape on
the drawer infill strip (H).
1- Insert the cams into both infill panels (G). On the metal strip (H)
remove the plastic backing from the double-sided tape then stick the
6
metal strip to the drawer infill (G).
7
Attach shelves (D) onto side panel (C).
Page 3 of 5
2
x2
2 - Attach drawer infill panels onto the side panel (C) and tighten
the cams.
8
Attach the other side panel (B).
UNB_TUDRAWER_INSTR_01.19
