Howdens HYH0105 Quick Start Manual

300, 400 & 500

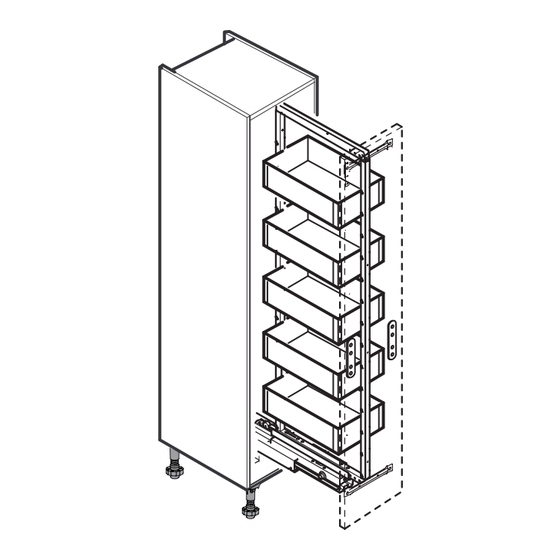

Upgrade Pull-Out Larder

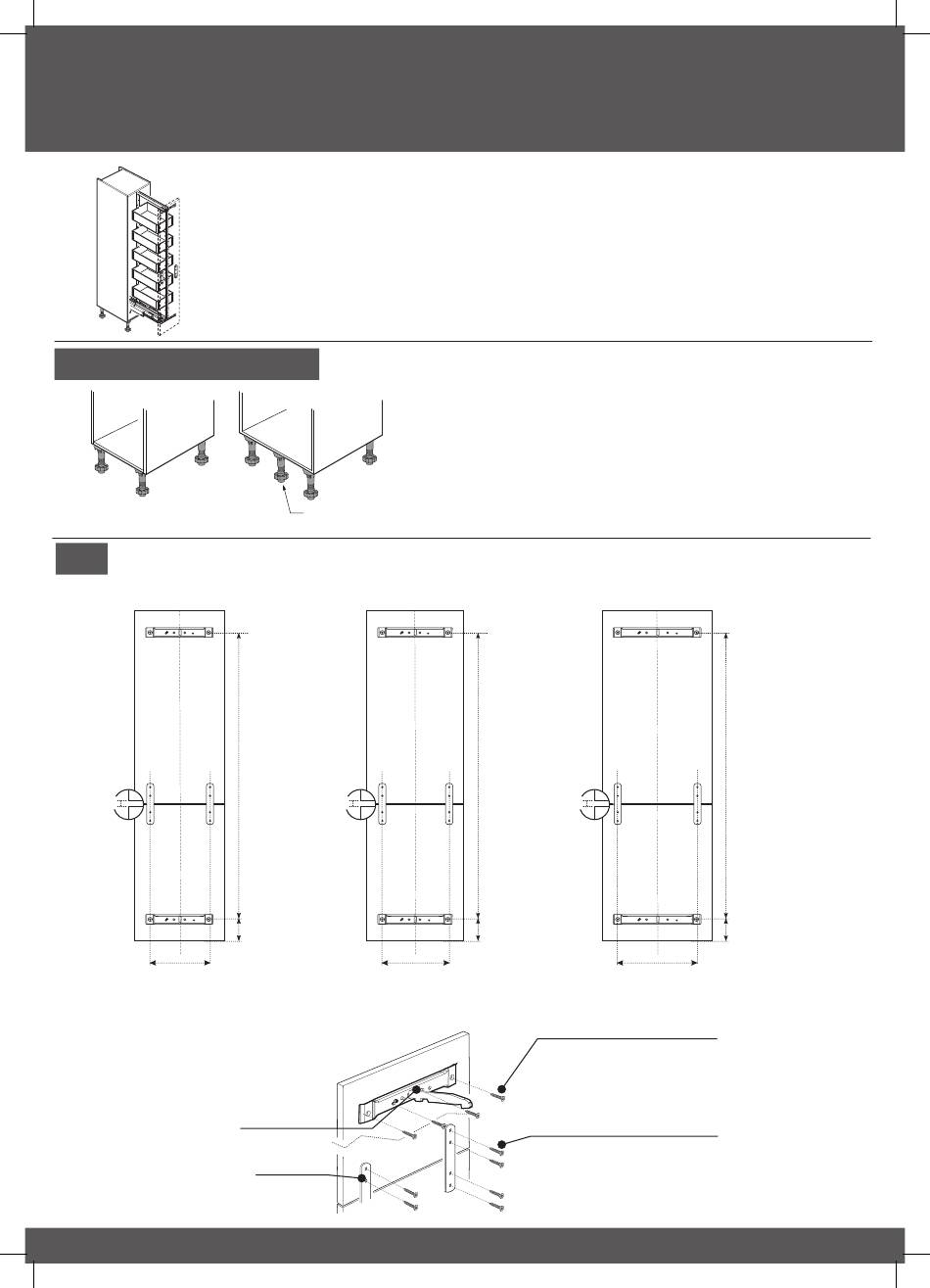

Assembly
1
Note: Be aware of handle screw
positions when fixing the door straps.
300 Frontal
1804mm
2mm
69mm
= =
225mm
Note: The two central screws in the top
bracket should not be fitted when
fitting a 5 piece door, with a
thin centre panel.
Door Bracket x2
HD422051
For five piece door constructions , care should be taken when fixing screws through into the back of the door.
Integrated handle ranges require a longer door strap & a centre bracket supplied in the additional pack (see stage 4).
The pull-out runners will require adjusting once baskets are loaded, as weight distribution will affect the closing action.
IMPORTANT: Ensure the cabinet is level, plumb and secured to the wall before installing
this product.
Follow the kitchen installation manual for fixing the feet to your cabinet.
Note: The 400 & 500 larder unit should have 5 feet fitted (one in a front centre position for
extra stability as shown).
Basket sets for upgrade pull-out larders:
300 - HYH0105 (HYH0585 for Additional Basket)
400 - HYH0106 (HYH0586 for Additional Basket)
500 - HYH0107 (HYH0587 for Additional Basket)
400 & 500 larder
additional foot
400 Frontal
2mm
=
325mm
*Door
Strap x2
Do not use a power driver for this product installation.
18kg maximum load per basket (90kgs total loading)
Ensure packaging is disposed of in a safe environmentally friendly way.
We recommend the larder door handle is fitted horizontally.
1804mm
2mm
69mm
=
2 per bracket (300 Unit)
4 per bracket (400 & 500 Unit)
*For integrated handle
ranges, use a longer door
straps & centre bracket supplied
HYH13PF2
Important Notes:
500 Frontal
1804mm
69mm
= =
425mm
Screw x8
(4.5x16mm csk)
Screw x8
(4.5x16mm csk)
in the additional pack
HYH13PF2
