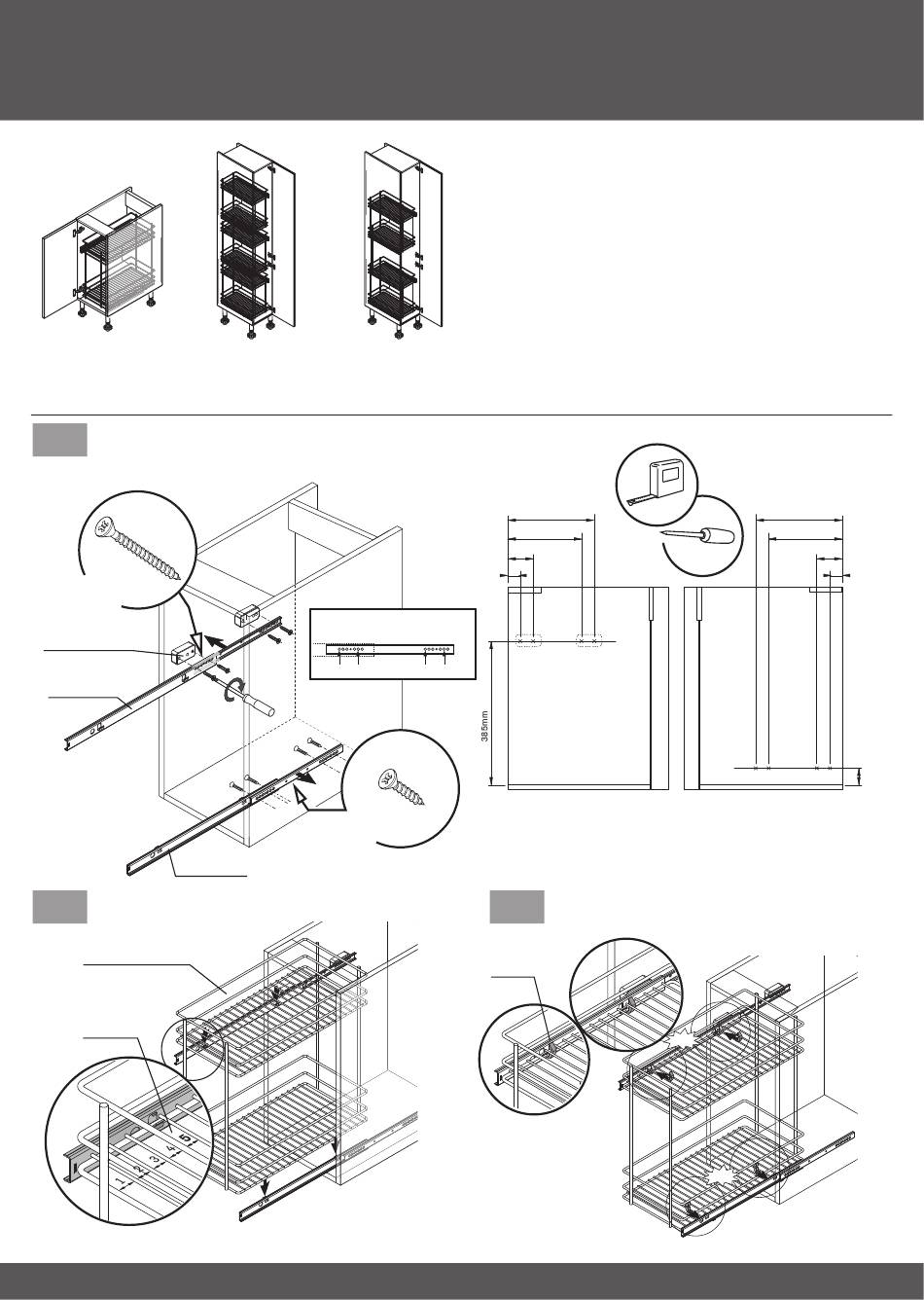

Howdens HYH1345 Manual

200, 300 & 400 Base/Larder
Pull-Out (LH&RH)
LH or RH Assembly LH or RH Assembly
Base Cabinet (1 pull-out) Larder Cabinet (3 pull-outs)
Using the dimensions shown spike runner fixing positions.
1
Note: Installation below shows a LH door hung assembly where spacer blocks
are required on the LH side.
Screw x4
(4x30mm csk)
Spacer Blocks x2
LH Runner x1
RH Runner x1
2
Fit the basket frame onto the runers.
Basket Frame x1
5th Gap from
the front
HD521090
LH or RH Assembly
Larder Cabinet (2 pull-outs)
Note: Bottom runner should always be on the opposite side to door hinge.
LH Side Base Panel
30mm
Runner fixing holes
Back
Edge
Screw x4
(4x16mm csk)
44012599_02
Do not use a power driver for this product installation
6kg maximum load per basket
Ensure packaging is disposed of in a safe environmentally friendly way
Spacer blocks are only required on the side the door is hung
The pull-out can be used in a 200, 300 & 400 base and larder application
Follow the larder side panel fixing locations on the reverse of this sheet.
Pull-outs can be connected using HYH1301 - See reverse sheet for details
263mm
222mm
71mm
*Basket runner positions can be moved up if using wide angle hinges
or if a clash occurs due to hinge adjustment.
IMPORTANT: Spacer blocks must be fitted on the same side panel
as the hinge plates. This is so the runner does not clash with the hinges.
Bottom runner should always be on the opposite side to door hinge.
3
Secure the basket frame in place using the clips,
clicking them into position.
Basket
Clips x4
HYH1345
HYH1334
HYH1342
Important Notes:
(This is for a 2 basket application only)
RH Side Base Panel
263mm
222mm
71mm
Spike using a
bradawl
click
click
HYH1345, HYH1334 & HYH1342 v7
30mm
25mm*
