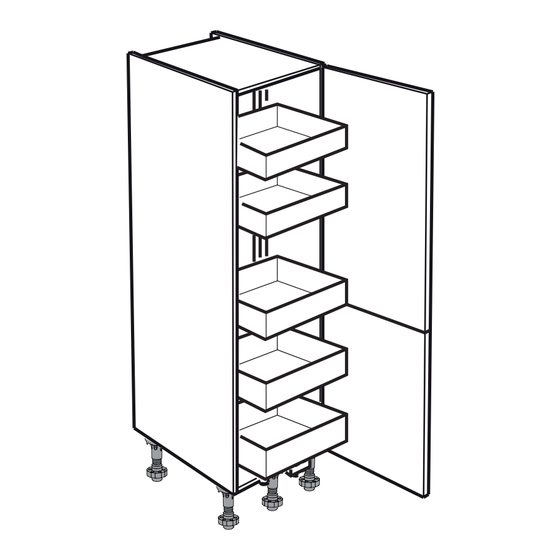

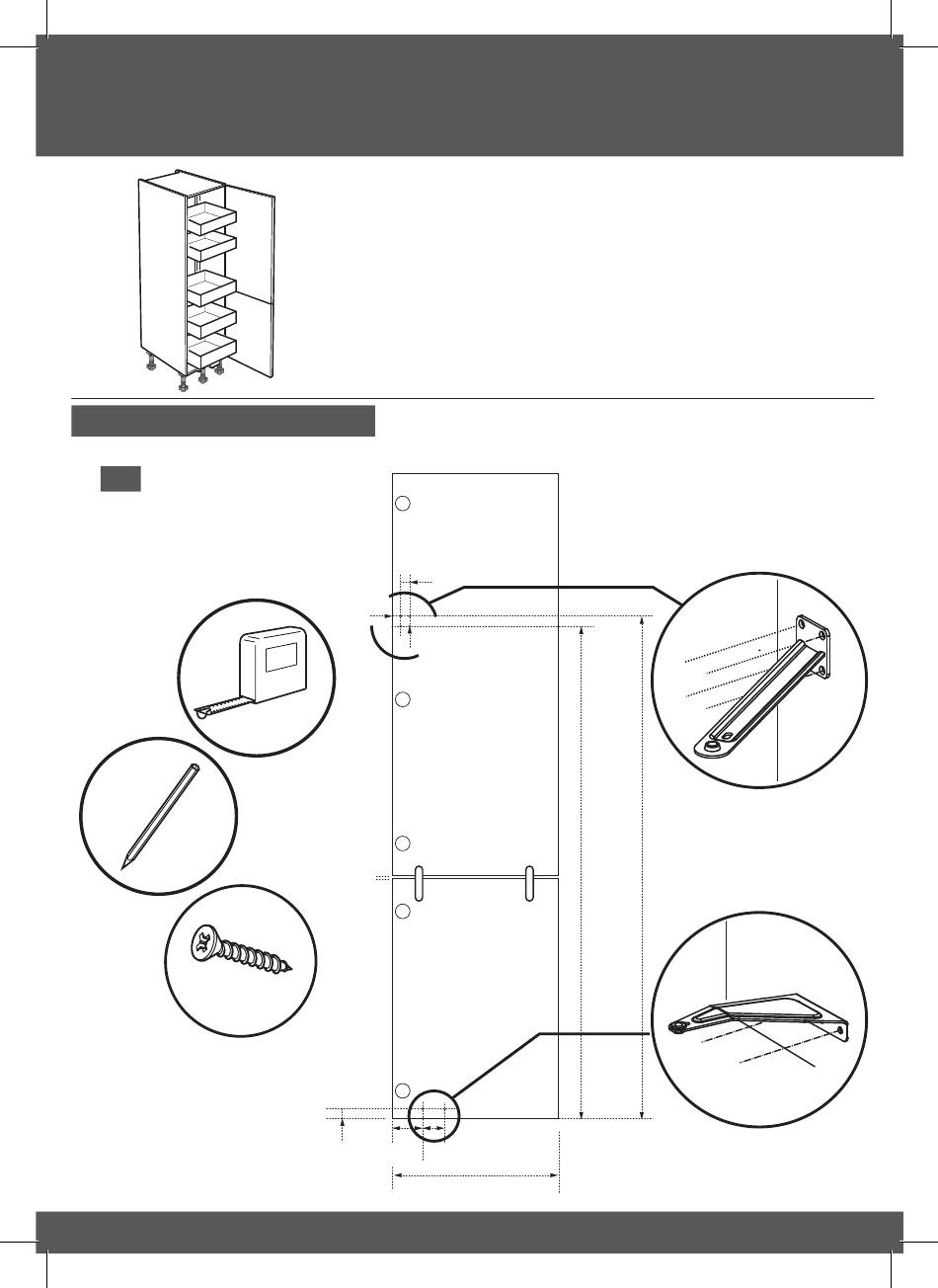

500 & 600 Swing Forward Larder
Frontal Fixing & Adjustment
Assembly
1
Fit the brackets to the frontals
using the screws provided.
Note: Ensure the 2mm spacing
between split doors is maintained
when measuring.
x6
4.5 x 16mm
HD422051
15kg maximum load per basket (75kgs total loading)
IMPORTANT: Ensure the cabinet is level, plumb and secured to the wall
Follow the kitchen installation manual for fixing the feet to your cabinet.
Note: The 500 & 600 larder unit should have 5 feet fitted (one in a front
RH door shown
28mm
25mm
32mm
2mm
43.5mm
93mm
64mm
497/597mm
LEAF56SFL2
NOTE: Ensure packaging is disposed of in a safe
environmentally friendly way
before installing this product.
centre position for extra stability as shown).
Basket sets for swing forward larders:
500 - HYH0020 (HYH0022 for Additional Basket)
600 - HYH0021 (HYH0023 for Additional Basket)
1550mm
1518mm
Advertisement
Related Manuals for Howdens RKC8755
Summary of Contents for Howdens RKC8755
- Page 1 500 & 600 Swing Forward Larder LEAF56SFL2 Frontal Fixing & Adjustment NOTE: Ensure packaging is disposed of in a safe environmentally friendly way 15kg maximum load per basket (75kgs total loading) IMPORTANT: Ensure the cabinet is level, plumb and secured to the wall before installing this product.
- Page 2 With the door fitted to the cabinet, position the joining rods top and bottom, securing them to the brackets and frame. Fit the baskets to the unit locating them onto the hooks on the frame. Note: Basket locations to the left or right side will depend on door handing.
